iFlight CineBee 75HD Indoor FPV Racing Drone Quadcopter 75mm Whoop W/Frsky XM+
Features:
- iFlight CineBee 75HD is the latest BNF creation of minimum weight at a
spectacular performance, traditional but versatile and upgradeable design
- Micro drone carry a 1080p (up to 60fps) micro cam stack and recording
JELLOFREE footage flying through smallest gaps and spots.If slow cruising or
fast racing, the cam angle goes from 0-55 degrees with motors from 2S-3S
- Whoop drone use a combination of carbon, plastic, and TPU to have a rigid
bottom plate that doesn't oscillate, with still crash resistant abilities
and integrated prop guards giving the whole frame strength
- The CineBee 75HD puts the SD card device on the bottom of the drone and is
equipped with a special protective cover to protect it, can easy insert or
eject it
- The stack is soft-mounted, the cam is soft-mounted, the motors run smooth -
keep your props in a good condition, and you won't have to worry about jello
Specification:
- Total Dimensions: 110x93x30mm
- Frame Wheelbase: 75mm
- Build Weight: 66.2g
- SucceX Micro 16x16 Tower 2-4S
- iFlight
1103 motors (1.5mm shaft)

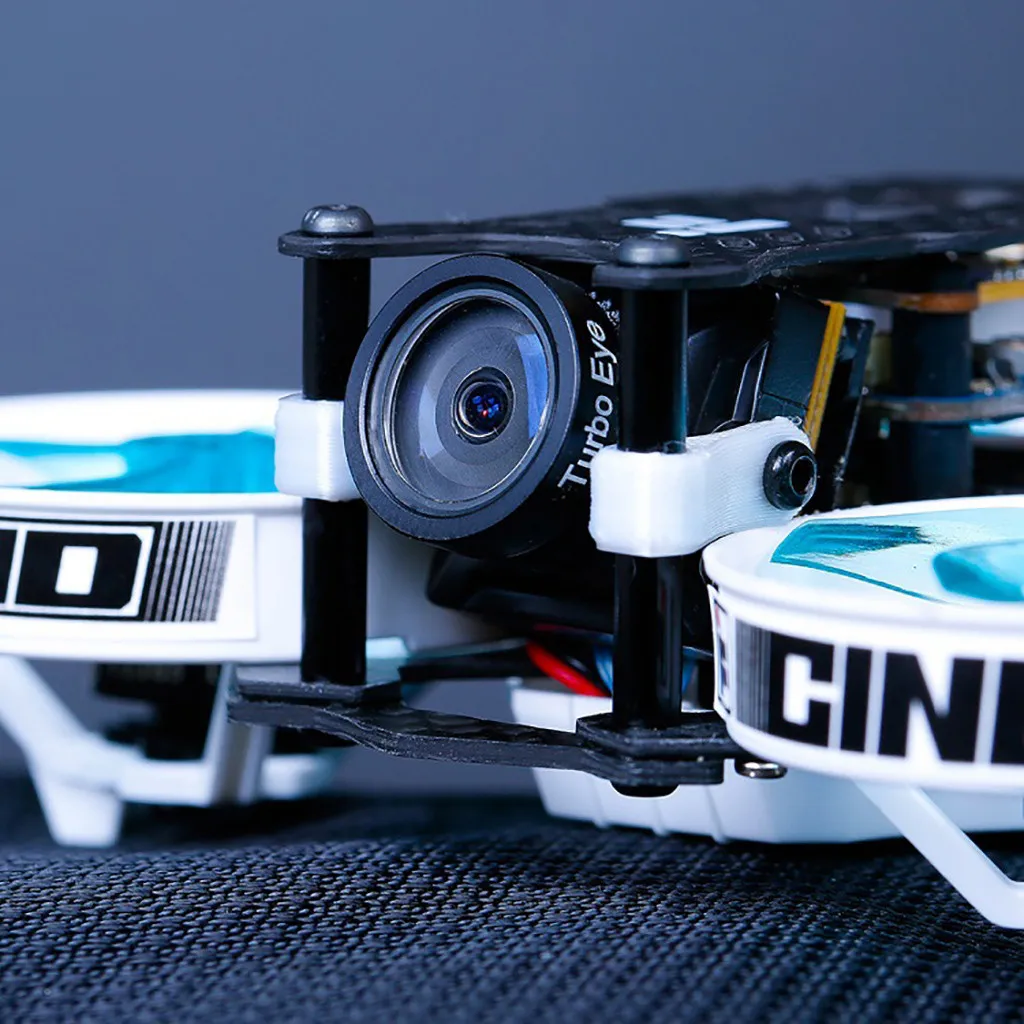

- Caddx.us Turtle v2 HD FPV cam
- Gemfan 1635 40mm 3/4 blade OR HQ 1.6x1.6x4
- iFlight Prop Guards 40mm
- SucceX Mirco F4 Flight Tower System 16x16mm
SucceX Mirco F4 Flight Tower System 16x16mm
- STM32F411
- Input voltage 2-4S LIPO
- Gyro: MPU6000
- 2x UART ports
- 4x motor outputs
- OSD inbuilt
- No Blackbox FLASH
- BEC 5V 2A cont.
- Size: 21mmx21mm
- Mounting holes: 16x16
- Weight: 2.5g
- BF target : MATEKF411
- SucceX Mirco 12A Brushless ESC
- Firmware: BlheliS
- Input voltage : 2-4S LIPO
- Continuous current: 12A
- MCU: BB21F16G
- BEC : None
- ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
- Size: 23mmx21mm
- Mounting hole 16x16mm
- Weight: 2.7g
- SucceX Mirco VTX
- Power : PIT/25/100/200mW
- Antenna interface : IPEX (UFL)
- Telemetry: IRC Tramp
- Size: 17mmx27mm
- Mounting holes: 16x16mm
- Weight: 1.6g
Motor kV Variants:
- We offer several motor setups to fit your desired performance, equipment
or just preference.
- (2S), (3S) will be available.
SD card insert and ejection:
- The HD cam PCB is conveniently placed under the frame, protected by a
cover
- To insert or eject the SD card, please push in the SD card and gently
slide beside the security plastic guard.
VTX control implementation:
- VTX can be conveniently set up in your OSD.
Propeller recommendation:
- Gemfan for general use, durable prop, crash resistant!
- HQ for video recording, JELLOFREE, better throttle management, NOT crash
resistant!
Optional:
- Frsky XM+ Receiver
- Without Receiver
Configuration:
- iFlight Bee CineBee 75HD Rack x1 Set
iFlight SucceX Mirco F4 Flight Controller x1
iFlight SucceX Mirco 12A 4-in-1 ESC x1
iFlight SucceX Mirco VTX x1
iFlight 1103 10000KV x4
Runcam Split nano camera black x 1
HQ 40mm 1.6 inch 4-blade paddle 1.5mm black x 2 pairs
iFlight patent leather iron buckle battery cable tie 10 * 100mm black x 2
iFlight 3D print x1
iFlight White Flight Controller Adapter Stand x 1
iFlight white lower cover x1
iFlight White 40mm Paddle Protector Set (4) x 1 Set
2 small antenna protection tubes 40mm
Antenna tube cap (black) x 2
XT30U male head with cable x1
ipex (UFL) interface 5.8G image transmission antenna (8CM) x 1
- Note:
Every iFlight CineBee 75HD needs time to debug and then ship again when it leaves the factory. Please understand
Package
include:
- 1 x CineBee 75HD Racing Drone
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
