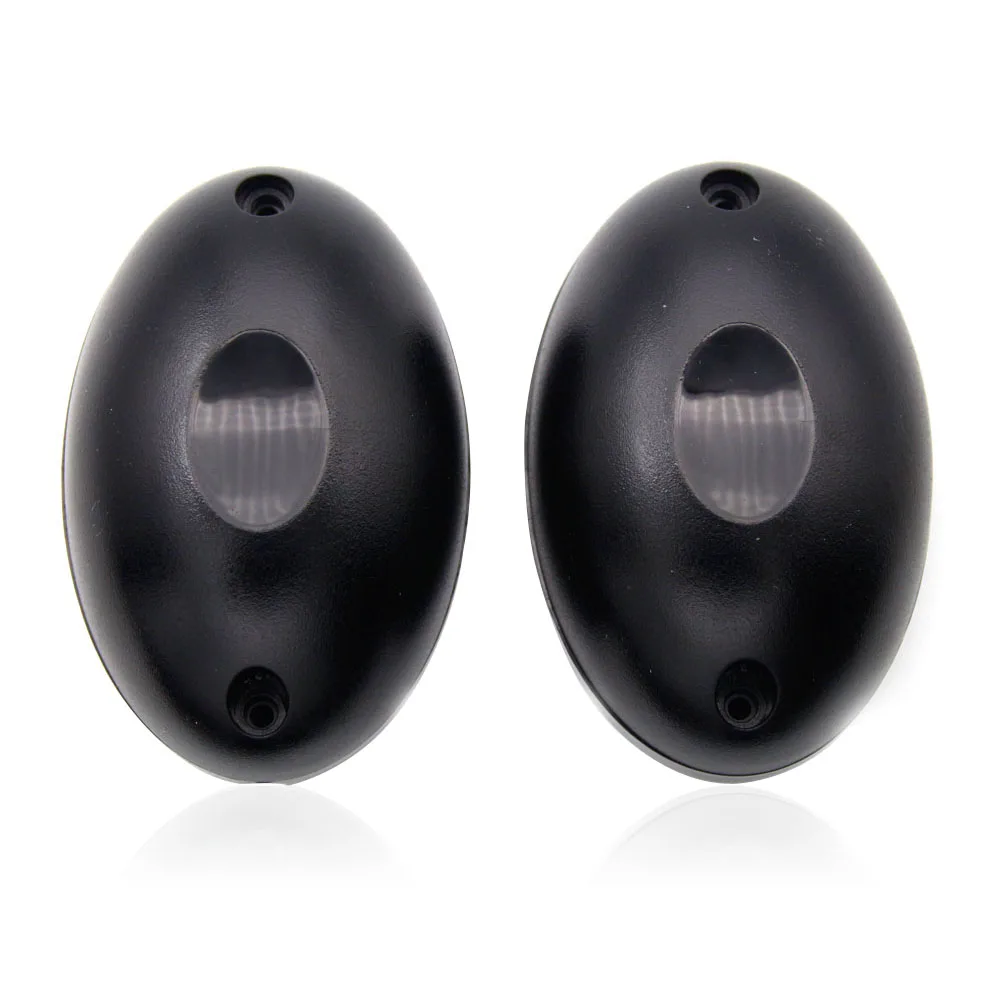

Инфракрасный датчик 12-24 В IP55 с одним инфракрасным лучом для автоматической



Сохраните в закладки:

Цена:359,06RUB
*Стоимость могла изменится

Количество:


Новое поступление

Huaruiyu remote control Store

Huaruiyu remote control Store

Магазина Huaruiyu remote control Store работает с 16.05.2020. его рейтинг составлет 80.12 баллов из 100. В избранное добавили 204 покупателя. Средний рейтинг торваров продавца 4.2 в продаже представленно 147 наименований товаров, успешно доставлено 872 заказов. 337 покупателей оставили отзывы о продавце.

Характеристики

Инфракрасный датчик 12-24 В IP55 с одним инфракрасным лучом для автоматической

История изменения цены

*Текущая стоимость 359,06 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"

Месяц Минимальная цена Макс. стоимость Цена
Mar-16-2026 456.48 руб. 465.57 руб. 460.5 руб.
Feb-16-2026 370.69 руб. 377.8 руб. 373.5 руб.
Jan-16-2026 449.8 руб. 458.99 руб. 453.5 руб.
Dec-16-2025 445.74 руб. 454.13 руб. 449.5 руб.
Nov-16-2025 355.51 руб. 362.82 руб. 358.5 руб.
Oct-16-2025 438.5 руб. 447.92 руб. 442.5 руб.
Sep-16-2025 434.27 руб. 443.92 руб. 438.5 руб.
Aug-16-2025 431.82 руб. 440.87 руб. 435.5 руб.

Описание товара

Инфракрасный датчик 12-24 В IP55 с одним инфракрасным лучом для автоматическойИнфракрасный датчик 12-24 В IP55 с одним инфракрасным лучом для автоматическойИнфракрасный датчик 12-24 В IP55 с одним инфракрасным лучом для автоматическойИнфракрасный датчик 12-24 В IP55 с одним инфракрасным лучом для автоматическойИнфракрасный датчик 12-24 В IP55 с одним инфракрасным лучом для автоматической


This is upgrade version of single beam sensor with latest LED light and more smt components compare with the old 3 lights handmade model, it's more stable and reliable.When interrupt the infrared, the relay will output switch signal, it can work for parking barrier, walking gate, vehicle gate as body induction. It also can work as window, door and passageway anti-burglar detection.

1.Install each pair at the opposite positions.Then there is a infrared area between these two detector parts. When someone passes the infrared region, the detectorwill send alarm signal to the security alarm host (which not included here).


2.Install Distance(Max.)in the above chart means the maximum install distance between the twodetector parts.


3.Great to be installed for security system in school, office building, hosipital, home yard, etc.


4.Detecting range can be reduced to 30% in bad weather conditions, like rain, dust, etc.


5.English Usage Manual included in the pack. It will give you detailed instructions.

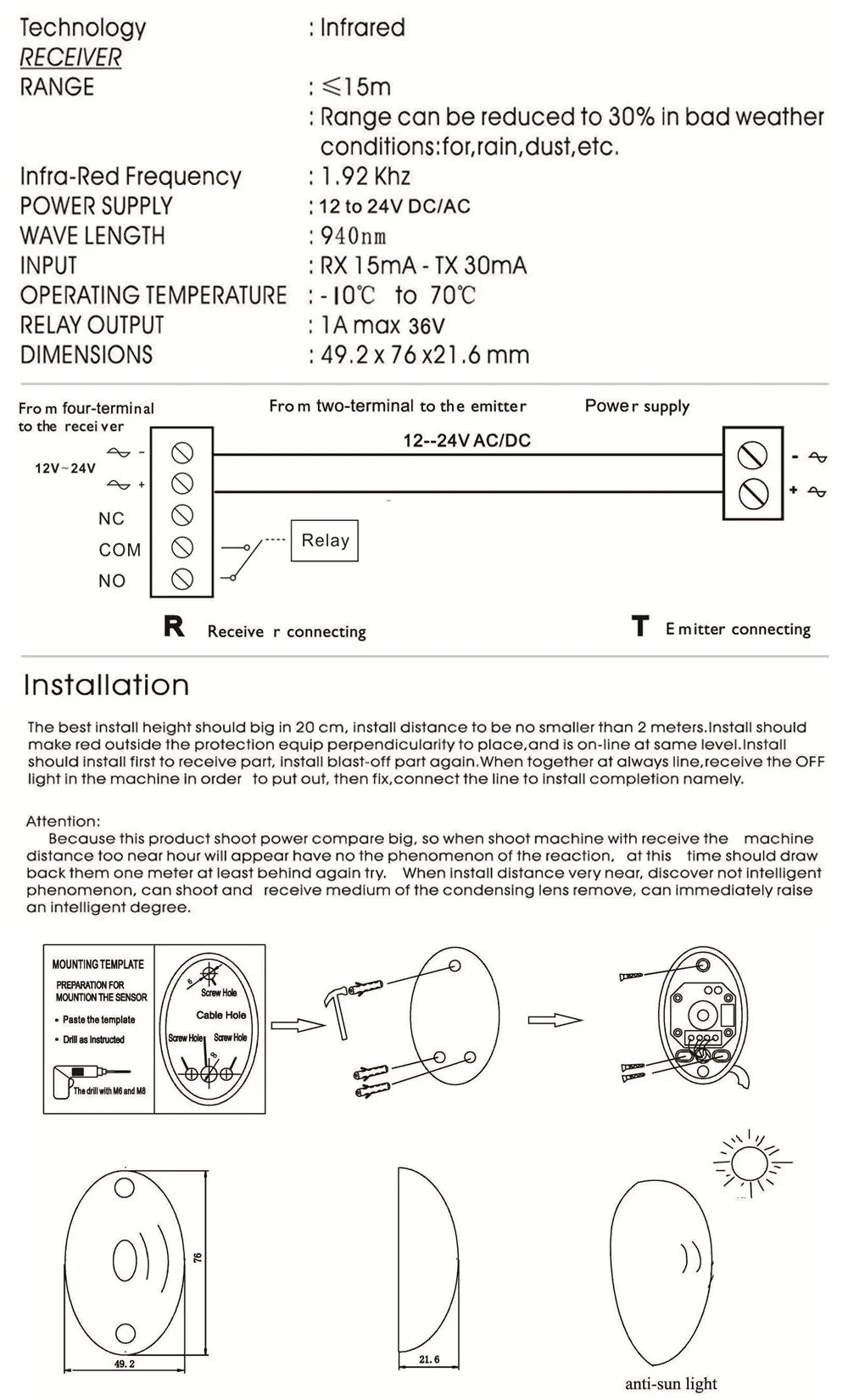

Specification:


1. Single Beam Infrared Sensor with latest LED indicator light.2. Anti-glare up to 50, 000 LUX, to avoid the impact of glare or car lights 3. Sealed design to anti-rain (fog), dust (worms) and other integrated weather, the detector sensitivity will increase automatically(AGC circuit) 4. With high levels of anti-RFI / EMI capability 5. High-power transmitter, sensitivity surplus degree up to 90% 6. High-power infrared receiver tube, low-power process technology 7. Adjustable of beam interdiction period, to make it more flexible and adaptable 8. Professional anti-jamming optical housing

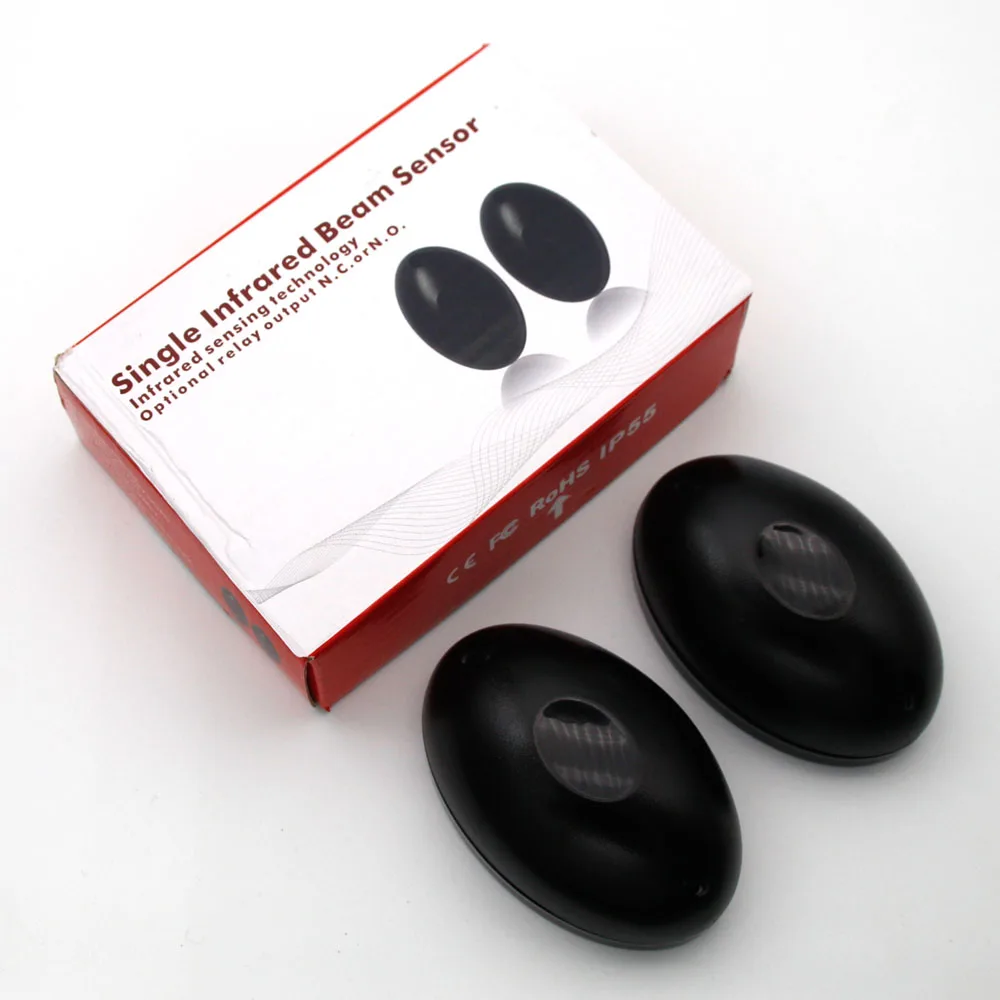

1pair beam sensor + box + accessories + user manual!

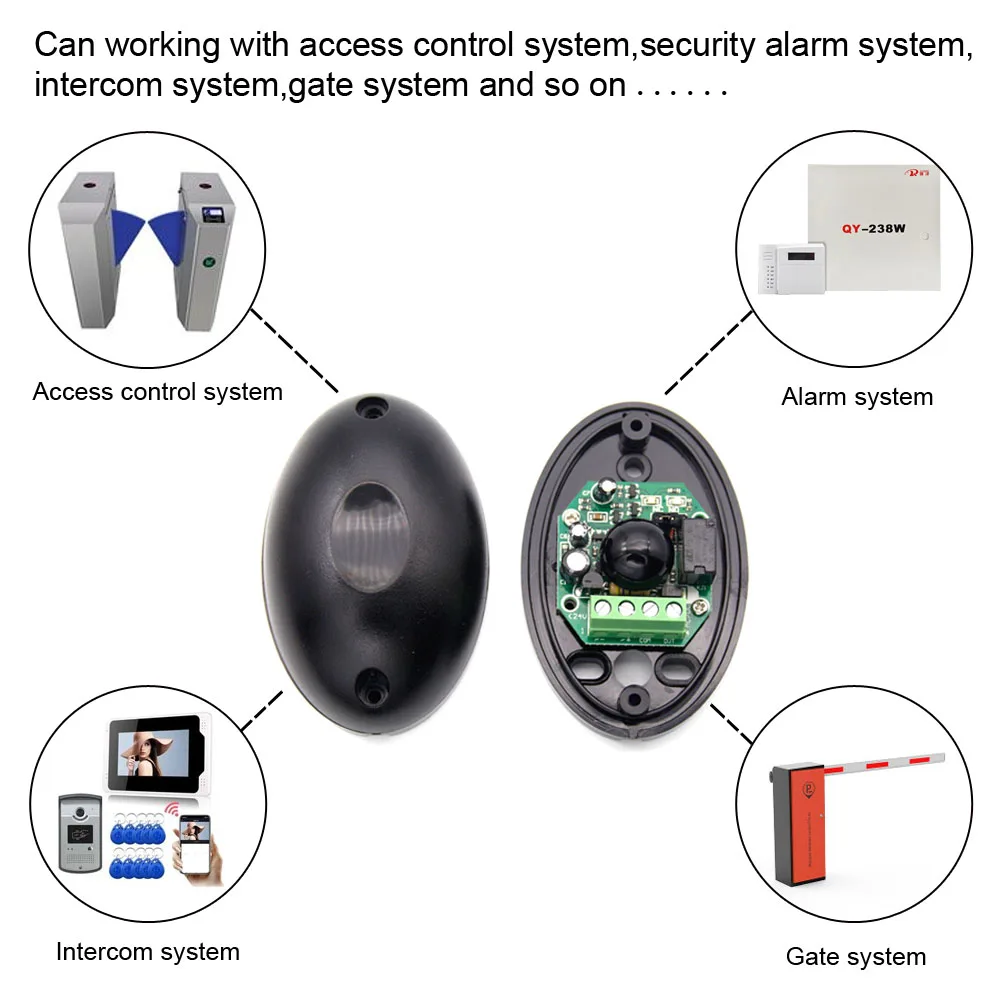

Can working with access control system , security alarm systemintercom system . aate system and so on

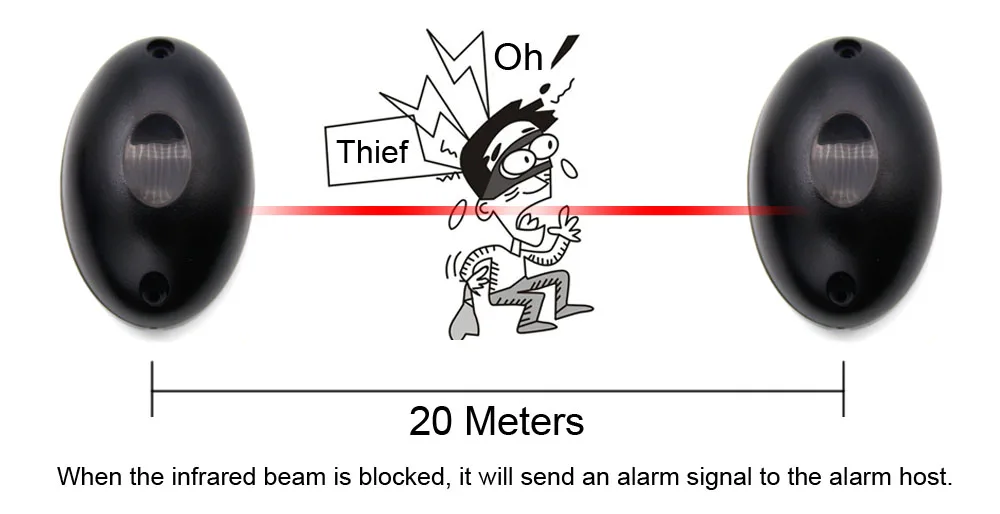

When the infrared beam is blocked , it will send an alarm signal to the alarm host


1. It can work in distance between 2meter to 15meters, when use in short distance, because the infrared is too strong to break, then you should remove the lens cover can work properly.

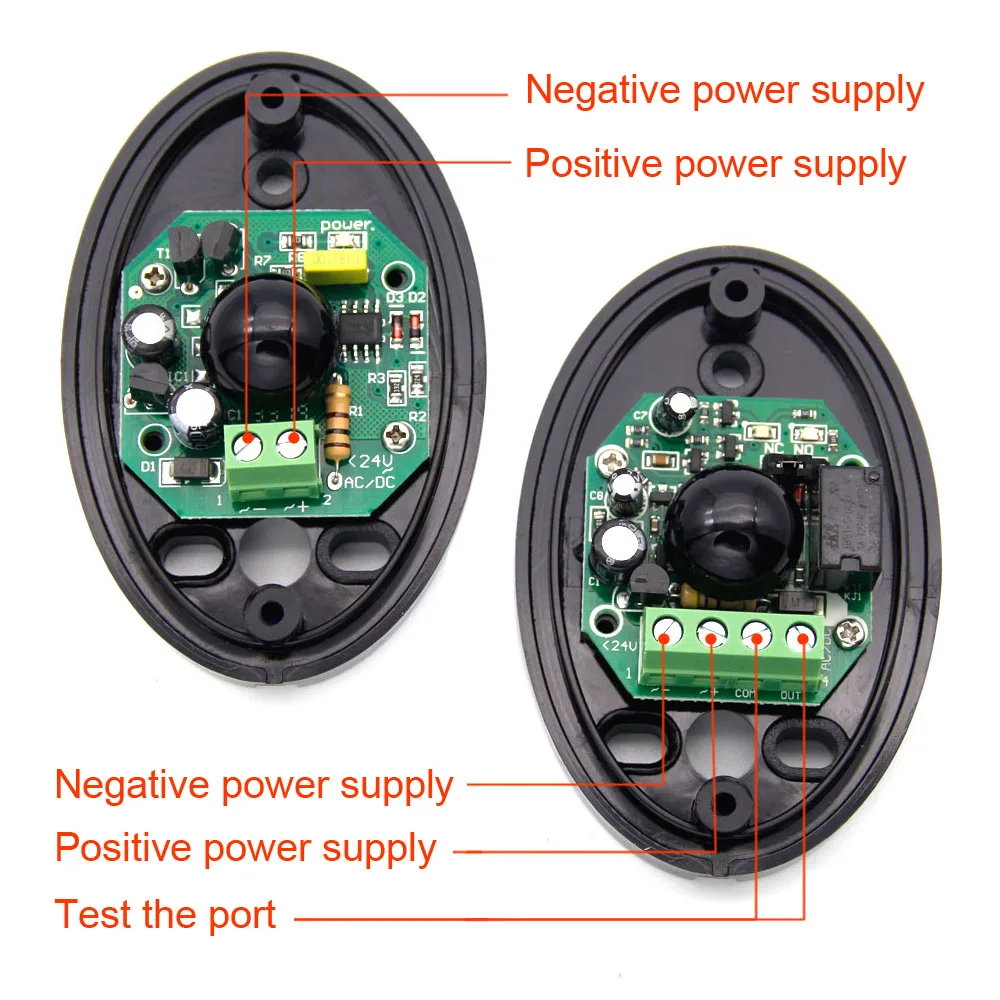

2. when interrupt, the relay output switch signal without voltage.3. It has N/O and N/C switch.4. It can work with access control system, parking barrier and  alarm system etc.5. It works with 12-24V power supply.
