Беспроводной настенный переключатель с кнопками 1/2/3, частотой 433 МГц, максимальной нагрузкой 10 А при напряжении 110 В или 220 В, с реле-приемником и пультом для управления светодиодами/лампами.

---

Description

Before making an order
The wall switch and light switch are a set product.Light switch connect with power and device,wall switch wireless control light switch on and off.So our products can make your home appliaces such as lights/fan/coffee machine/etc under wireless control

Why choose us
1.Easy set up and easy use
After you set up with wall switch,it can work easily:
Press wall switch button, light switch work, light on;
Press same button again.light switch stop,light off.
2.Strong RF signal
433MHz ASK modulation, product support 50m control in open space.There is an antenna on receiver board to help you solve signal transmission problem.

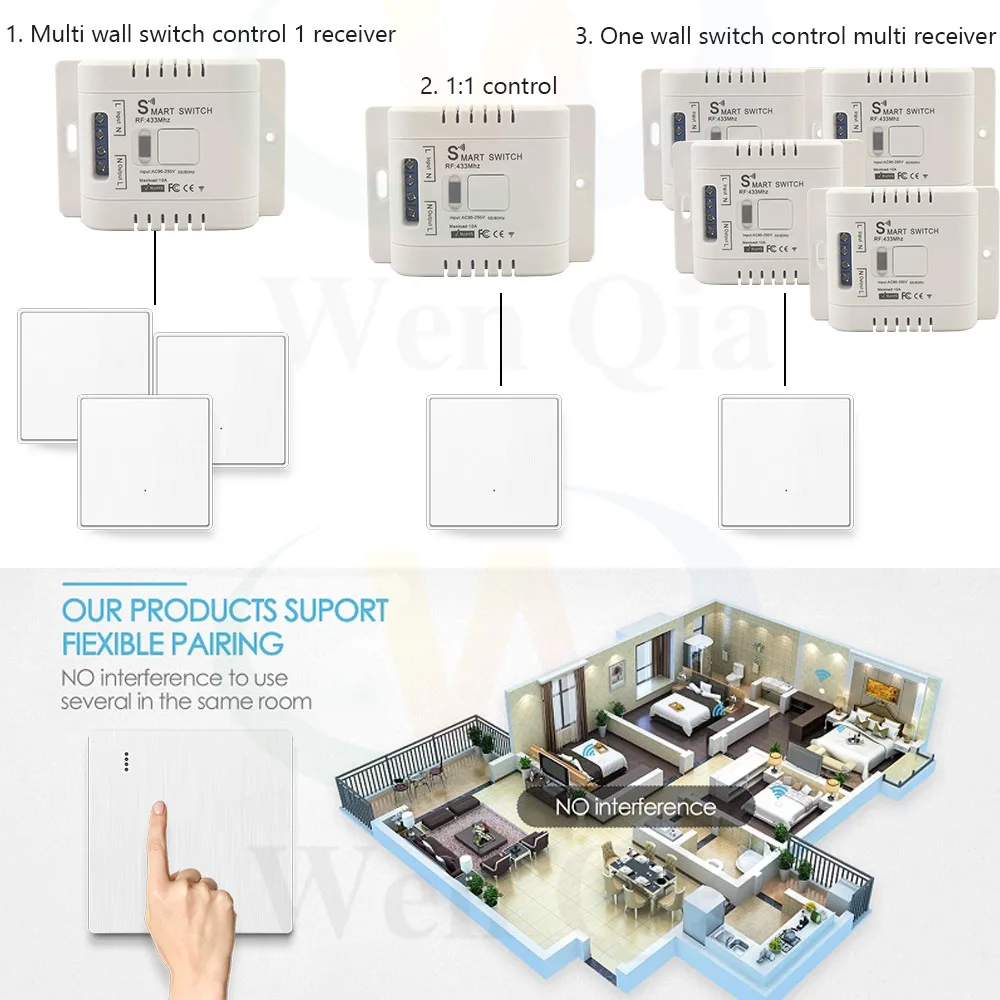

3.Multi control support
One light switch can be controlled by almost 10pcs wall switches.One wall switch can control 5 light switches at the same time.
4.Place wall switch at anywhere
We have double side tapes and screws for you.You can place wall switch at anywhere.
5.Excellent product
Our product has passed CE,CCC,RoHs.The wall switch button can be pressed million times,the light switch is very safe.
6.Fast shipping and excellent after-sale service
We usually ship the order out within 24 hours after you paid it.And we will solve all problems you met during on the shopping.

---

Funtios display
Easy connect

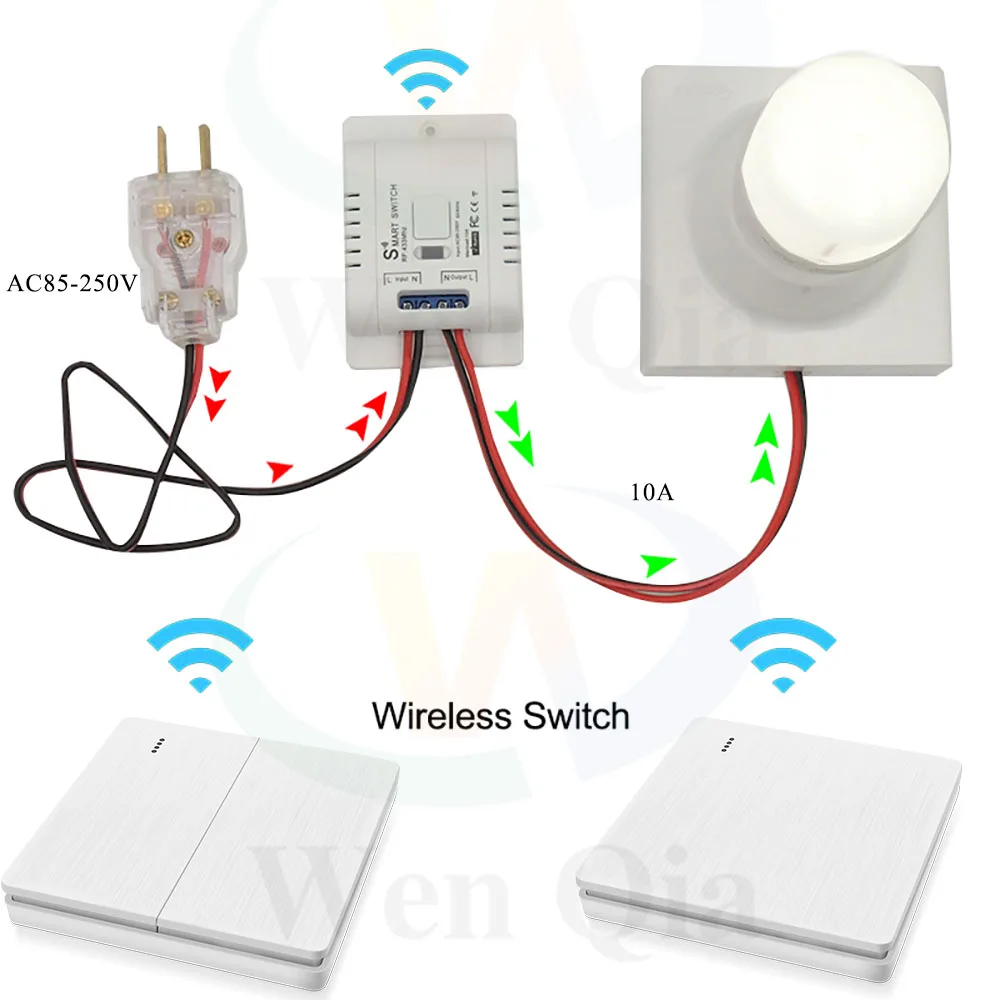

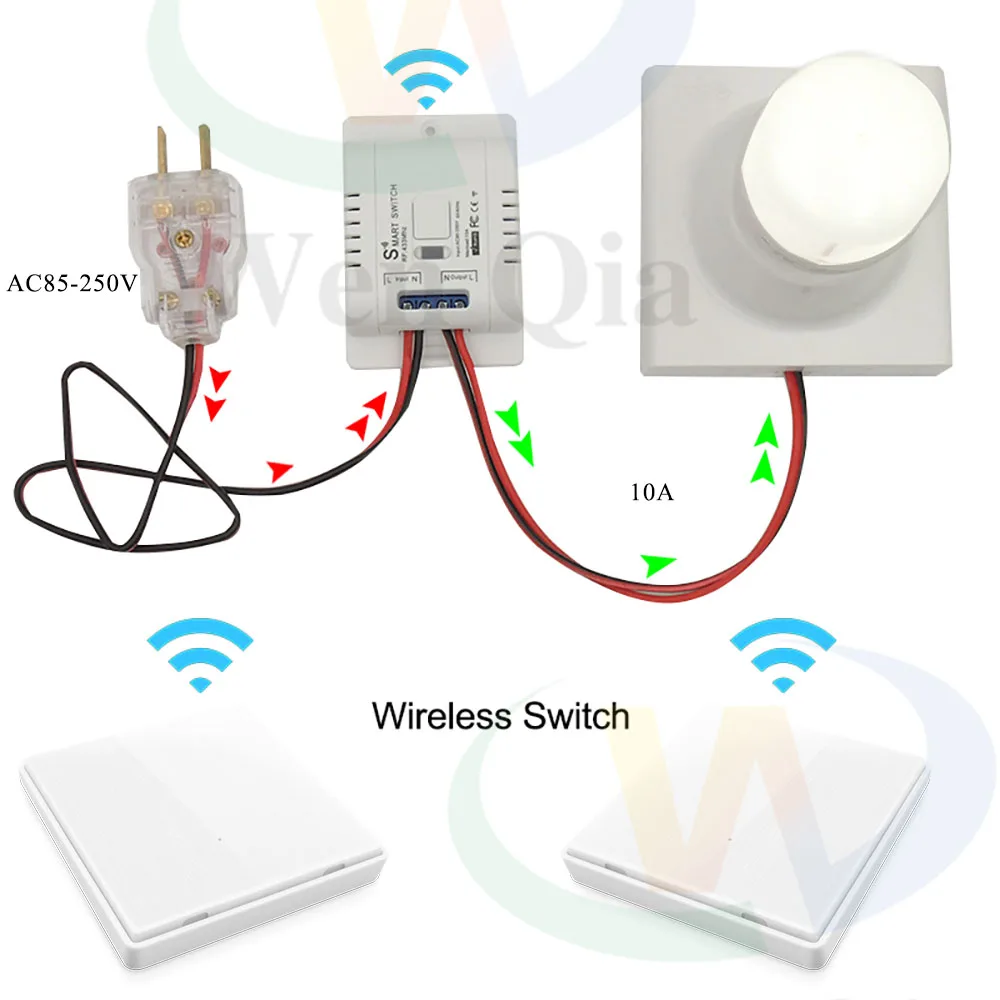

You need both L and N line to connect with power and device.Like this picture below:

Easy use
Press wall switch button, light switch work, light on;
Press same button again.light switch stop,light off.

Strong signal
Rf signal support 50m in open space;
RF signal support 30m indoorand can pass through walls

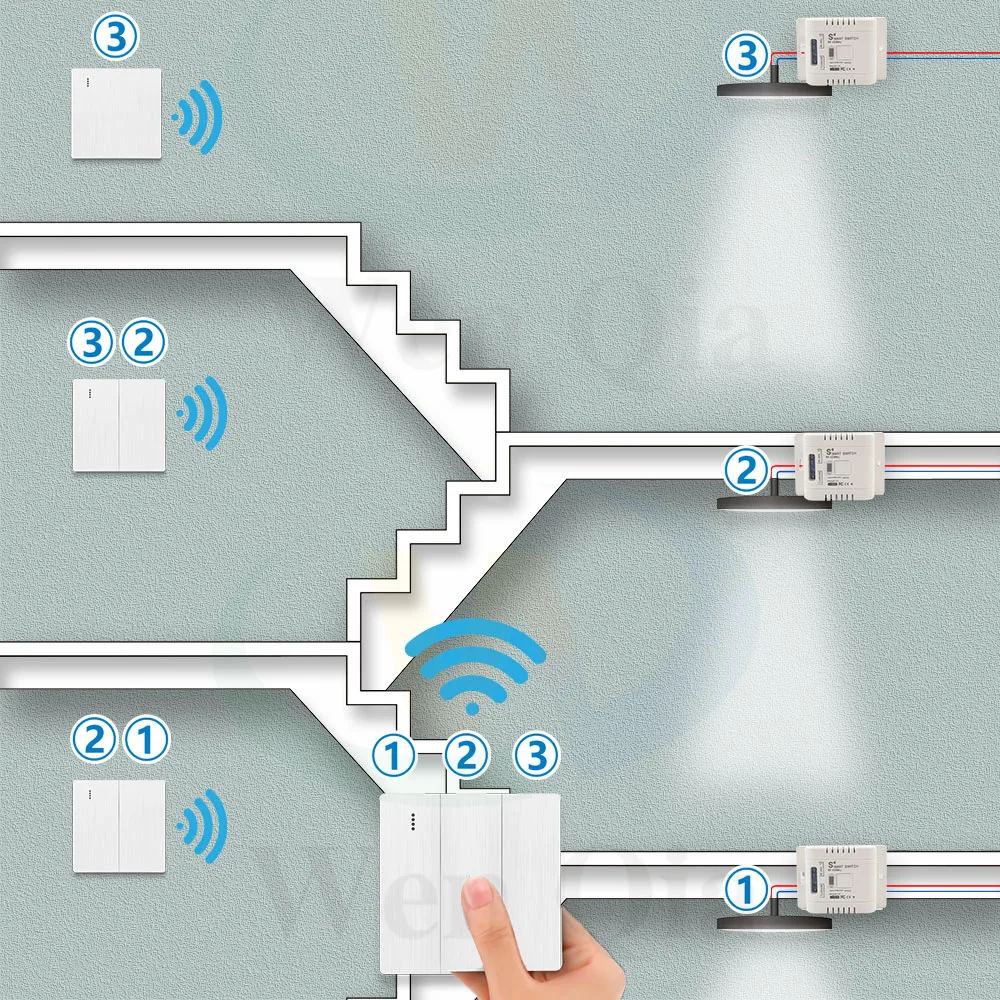

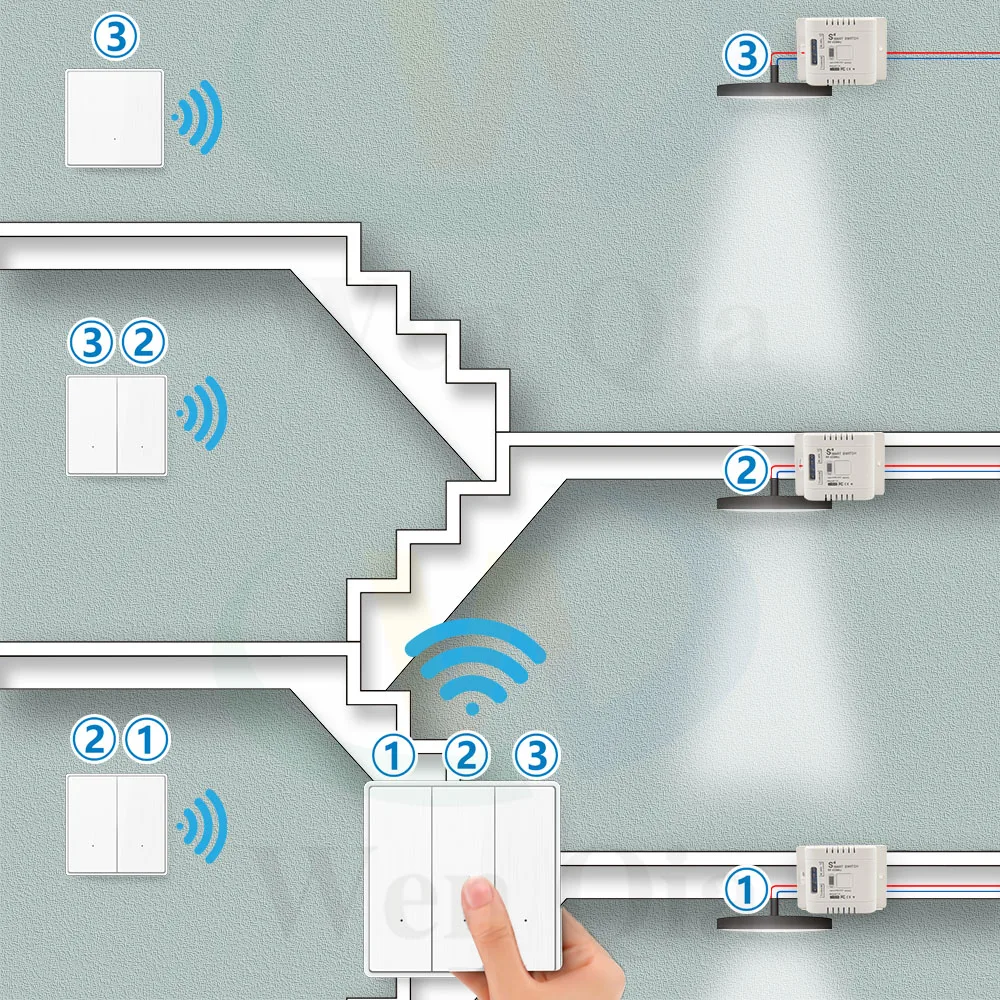

Multi control,No interference
One light switch can be controlled by almost 10pcs wall switches;
One wall switch can control 5 light switches at the same time
Press 1st wall switch button, the light on, press 2nd wall switch button, this light off

Product Application Area  Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on;
Remote control Electric curtain \ Water pump \ Fan \ Lamp \ LED light \ bulb \ ventilation device \ Signal transmission \ DIY;
Remote control Home appliances humidifiers coffee machines, microwaves, Led, Light and so on.

---

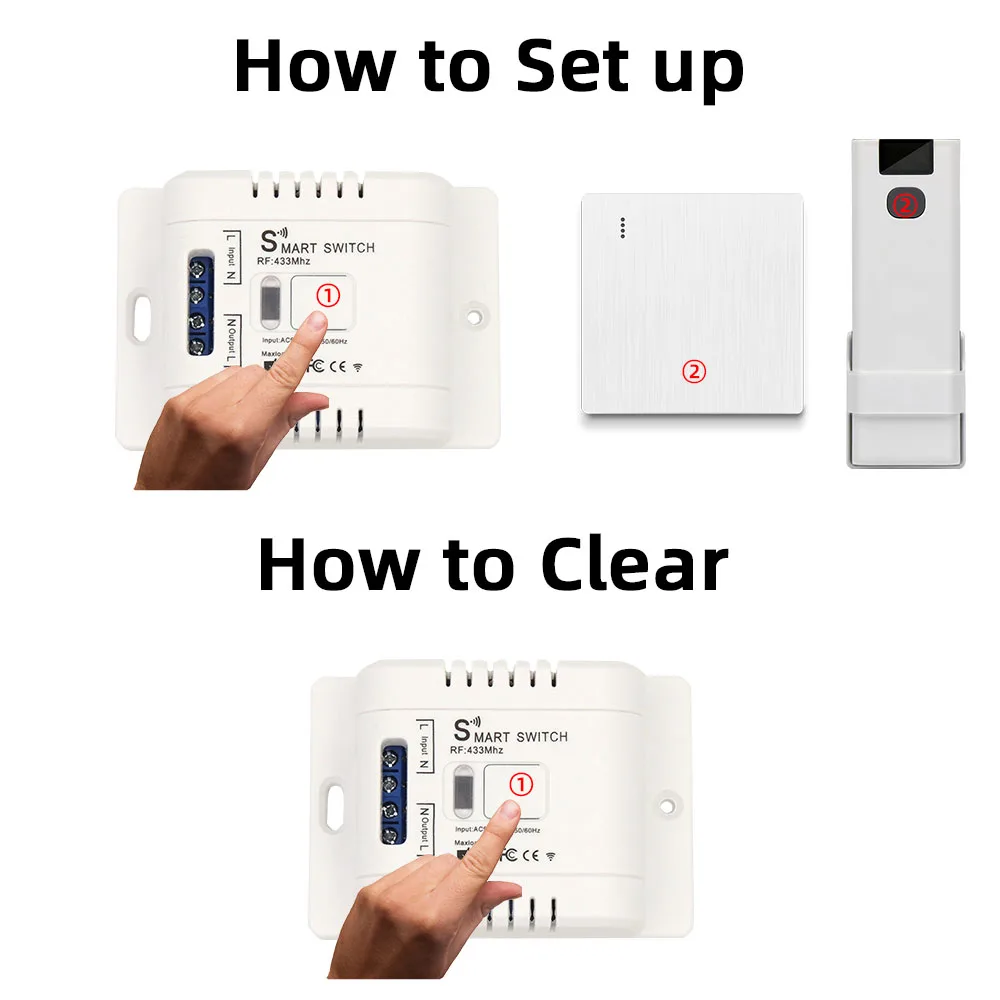

How to work
After you connect power with our light switch,you need to pair with our wall switch.Please follow these steps:
Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds;
Step 2: Press wall switch button 1 time. Wait for 3 seconds.Succeed.
If you want to clean signals,please press the learning button(on the Receiver) 8 times,succeed

Product parameter
Light switch
Input power : AC 85-240V
RF Frequency : 433MHz
Size : 75*52*25 mm
Max Current : 10A
Shell :  Yes
Port  : L/N
Certification : CCC,CE,RoHS

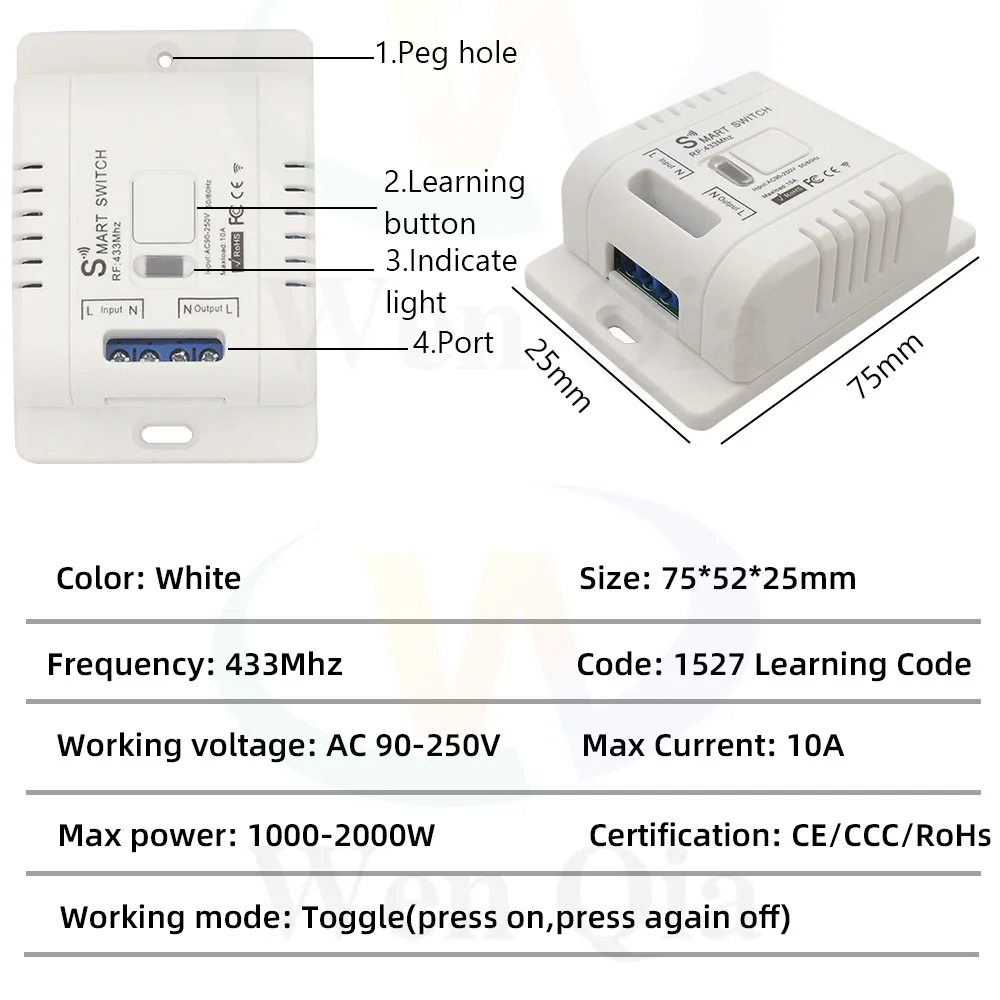

1.Peg hole 2.Learning button 3.Indicator light 4.Port

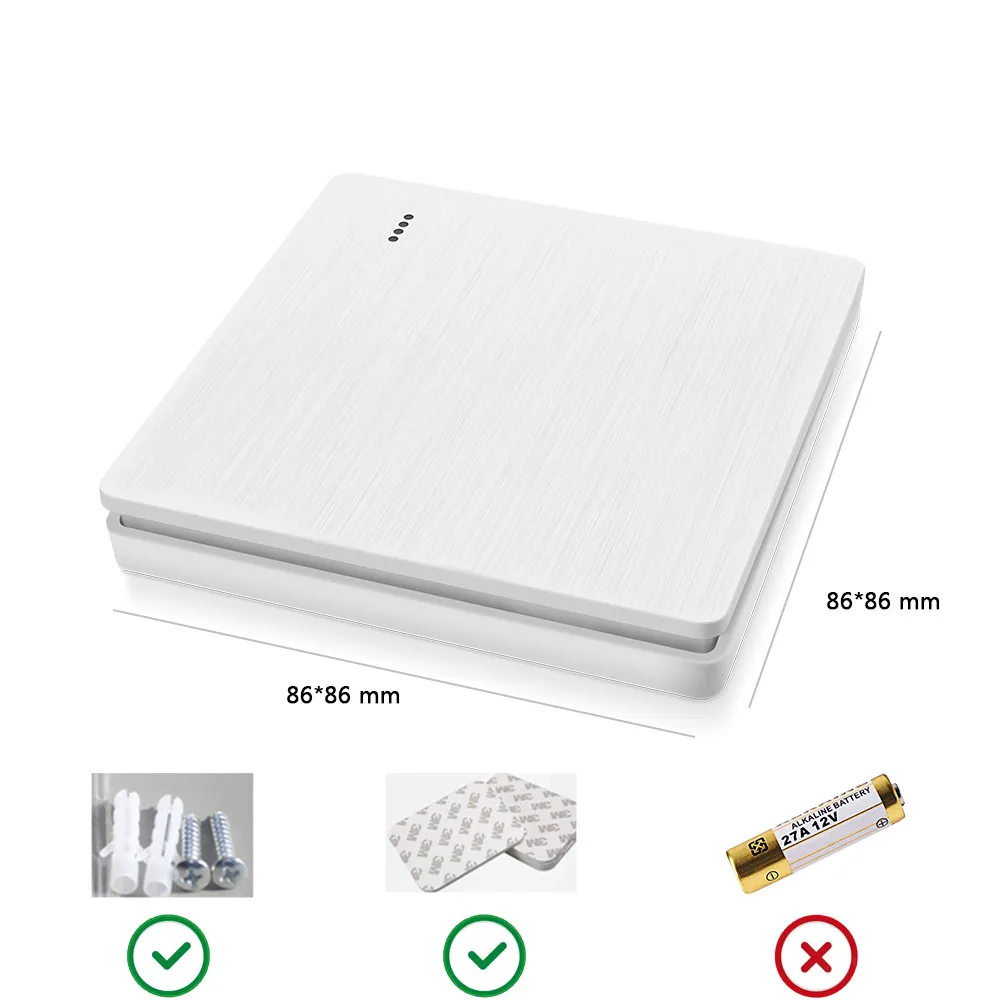

Wall switch
RF frequency : 433MHz
Support encoding : 1527 Leaning code
Transmitting range : Open space is more than 50 meters
Battery  :  1pcs 27A12V (Not Include Battery)
With: double side tapes and screws


About shipping
We usually ship the product out within 24 hours after you paid the order.If you want a fast shipping method,like dhl,fedex,ups,please let me know.
Questions and Answers
1.Can i use my own wall switch/transmitter control this mini module?
The receiver uses rf 1527learning code/2262 fixed code.And the frequency is 433mhz.If the frequency and code are same,they can control each other

2.Does this mini module has dimmer function?
No,it can only on and off lights

3.What will happen if i pair with more than 10 pcs wall switches
The RF date will overwritten.The 1st wall switch will not work, the 11st wall switch will work

4.Does wall switch and remote has battery?
Sorry,the shipping is not safe if the product has batteries.So we take out the battery.

5.Do you have a wholesales price?
Yes.We have many cooperation in russia,brazil,mexico.The shipping is cheap.We can give you the best price   On this product detailed page, there is a demonstration video for your reference.   *If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*     The products are all producted by our own factory , Our factory can support OEM and ODM, welcome to consult.

---
