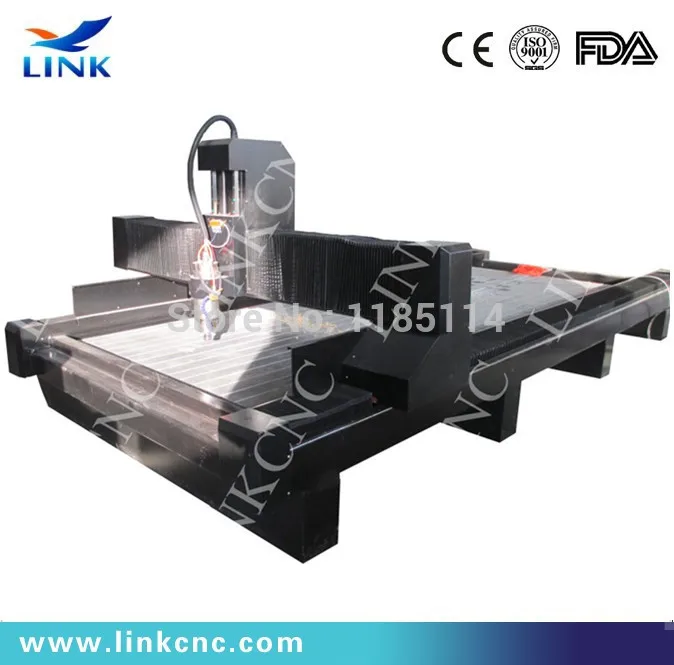

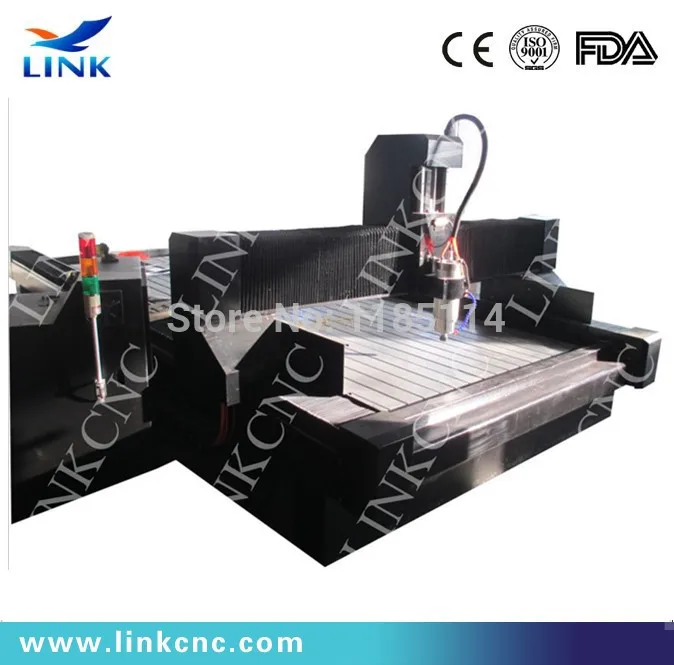

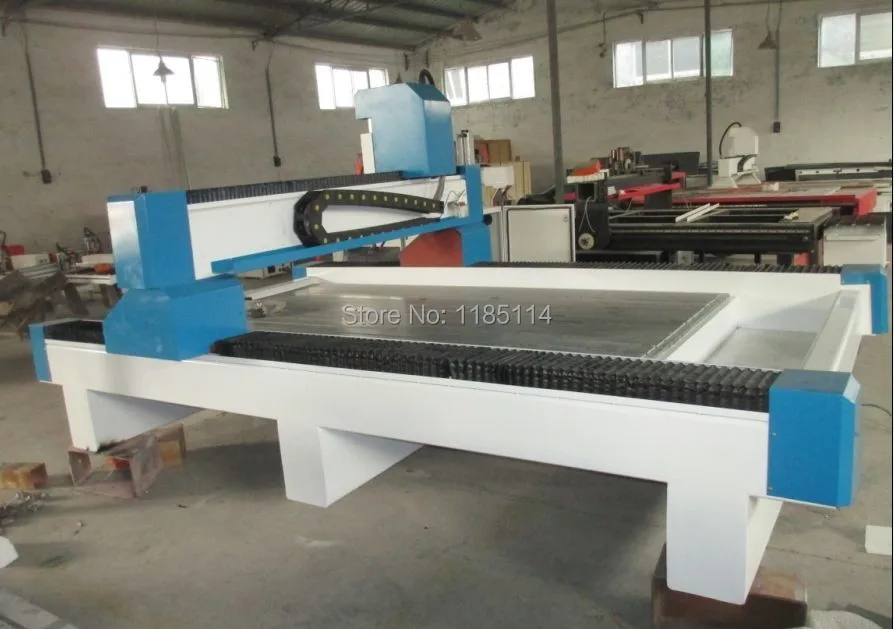

high quality stone engraving cnc router 1325 | Инструменты

No.1 Machine Features

1) Key Features

a. Adopting the seamless welded steel structure, strong performance, no deformation.

b. lengthened the X and Y axis: can be used for large scale material processing.

c. Break-point memory:  Automatically continuing to carving/cutting after power off,

    automatically back to original point to correct the mistake.

d.  It uses the double motors to drive the machine and uses the double axises to transmit

     the machine smoothly, which guarantees it not to out of shape and to shake when it works

     for a long time.

e. They are fitted with steady domestic-made water-coolant spindles. High powered, high rigidity.

2) Standard Configuration

specification:

water-coolant spindle:

spindle power: 5.5KW.
brand:China top quality Changsheng brand.
shape: round type
controller by the inverter
connected with water pump and cooled via it.
advantages:

higher precision, axial run-out and radius run-out are within 0.003mm.

Spcecification:

T-slot table:
When to apply:
for irregular materail processing;
relief and home decoration artware, like hollow design, screen;
advertising field, pvc, acrylic, dual boad engraving and cutting.

specification

constant power control, can achieve large torque at a comparatively lower speed to ensure working accuracy, economic type.

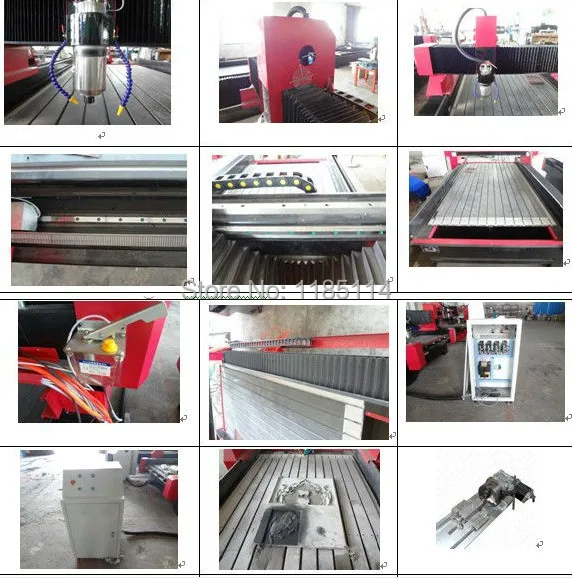

Heavy duty frame

3)Optional parts

specification

Brand: World first-class Italy HSD brand.

Power range: 4.5kw/6.6kw/9.0kw/12kw
Shape: square type

advantages:
high power, well-suited for mass production and heavy cutting.

Specification:

Brand:Yaskawa servo motor & driver

Z axis with brakes.

Advantages:

the spindle speed, electric current and angle can be inspected and adjusted.
can achieve high speed and ensure high precision.

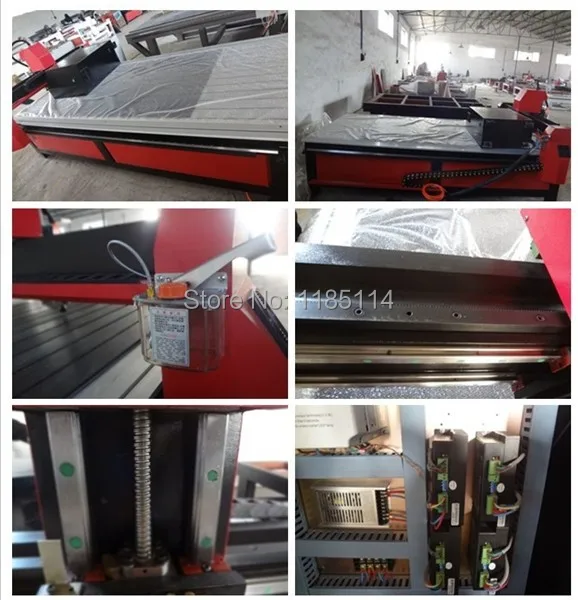

Main machine structure

Series

LXS1325

Working area

1300mm*2500mm

Z axis height

200mm

Collet

Collet capacity: ER20

Maxim diameter: 3.175/4/6/8/12.7mm

Transmission

X/Y axis rack & pinion drive;

Z axis TBI ball screw drive

Engineering accuracy

0.01mm

Spindle speed

18000r/min

Traveling speed

25m/min

Working speed

15m/min

No.2 Application & Samples

Suitable for small size materials such as granite, artificial stone, ceramic

tiles, glass, etc, can be engraved by such machine, to produce arts and

crafts, pictures, etc. This machine can be also used to work on wood,

 advertising materials.

2)Rotary device

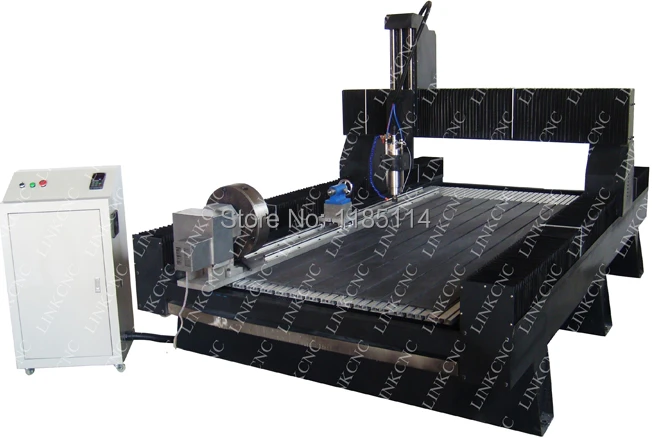

a. LXS1325 with 80mm rotary attachment(add price:300$)

b. Rotary samples

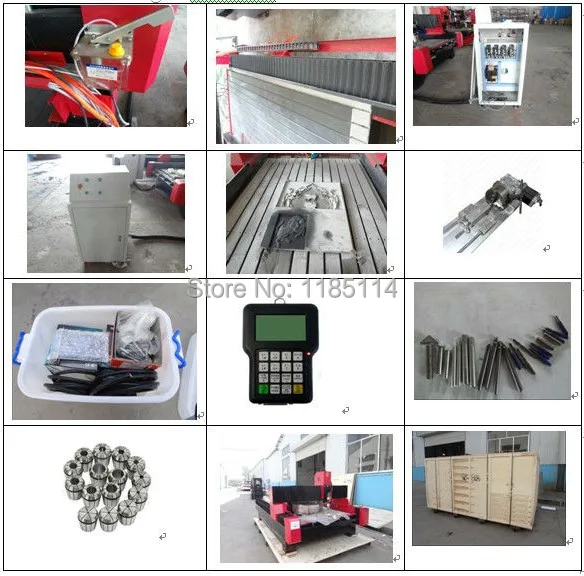

No.3 Packaging & Delivery

a.Lead time: Within 10 days after receiving payment.

b.Packing: Standard Ply-wooden case for exporting, non fumigation.

No.4 Payment

a. T/T & L/C & Alibaba Escrow are all accepted by us.

b. We will inform our factory to conduct production after receiving first payment

   (30% of the total cost).

   The rest is paid before delivery of the machine.

1) One year's Warranty. During the warranty, we will provide you new machine parts

    for replacing free of charge.(excepting the consumables, such as Lens and Reflectors)

2) 24 hours' Online Technical Service.

    You can get technical support by Email/Skype/Mobile phone

1)Q: What's the instruction code?

    A: It is instructed by G code.

2)Q: What kind material is it able to engrave or cut?
