Authentic Tomohiro Union ZBL-U520A nonmetallic automatic ultrasonic detector test pile ! |

Authentic Tomohiro Union ZBL-U520A nonmetallic automatic ultrasonic detector test pile ! |

We are committed to

All are committed to customer service through professional training, more patient and attentive service for you !

Promised that all the products are regular factory , three bags of service!

Each product promises to be a personal library of pre- inspection before issuing , allowing you to buy the rest assured that with the comfortable !

24 hours Tel: 13521811226

Q Q Online: 1575893153

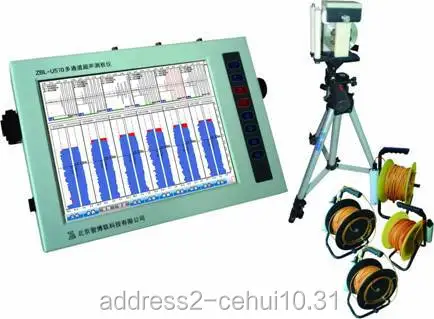

• Model: Tomohiro Union ZBL-U520A

Baby Details

First, the application fields

ZBL-U5Series of multi -channel ultrasonic testing of piles instrument, specifically for the acoustic transmission method pile integrity testing and design. With its unique multi-channel spontaneous self- closing feature enables a complete upgrade of the embedded three or four concrete pipe piles whole combination test , a substantial increase in detection efficiency , greatly reducing the intensity of the work site to reduce the testing personnel , is preferred device cross-hole acoustic transmission method detection.

• According to the standard
• " Dynamic testing of piles Highway Engineering Technical Specification (JTG / T F81-01-2004)"
• " Railway Engineering pile testing technical regulations (TB 10218-2008)"
• "Architecture pile testing technical specifications (JGJ 106-2003)"
• " Shenzhen Building pile testing procedures " (SJG09-2007)
• " Ultrasonic flaw detection concrete technical specification (CECS21: 2000)"

Third, the performance characteristics

1. A unique combination of multi-channel ultrasonic testing, the first wave of real-time store information quickly and accurately interpret the sound parameters, achieved a complete upgrade for embedded three or four concrete piles whole combination test , the maximum lifting speed is greater than 60m / min substantially increase the detection efficiency , greatly reducing the work to reduce the on-site testing personnel strength ;
2. The first international multi-channel independent control of spontaneous self- closing system, for any channel gain and delay adjustment , ensure that the data interpretation is accurate, reliable, and greatly improves the efficiency of post- data processing ;
3. Gain adjustment accuracy of 1dB, in full compliance with the requirements of standardized testing instrument ;
4. High brightness, large color LCD screen can display the same screen position six tests depth profiles , acoustic parameters, waveforms, pile integrity schematic , HV, HA, PSD curves and other information , the entire pile quality at a glance;
5. Measured with flat , inclined test, retest , encryption testing a variety of functions ,Measuring point spacing 5 ~ 100cm adjustable, any measuring point sampling information available for immediate playback, the detection process can also be adjusted at any measuring point spacing for suspicious areas "Encryption" test , convenient and fast ;
6. Initiative -oriented operation guidance and touch screen with shortcuts combined design, operation is extremely convenient, touch Council;
7. Built-in electronic drives, high-performance large-capacity lithium battery , U disk directly transfer data to work long hours to meet the field ;
8. Can be achieved by the project (folder ) to store test data, easy management, and reliable;
9. Host is equipped with a powerful professional testing data processing software , you can directly generate test reports, and print output ;
10. The instrument uses a metal chassis , reliable and durable.

Fourth, the technical indicators
