18 дюймовый LED-дисплей красного цвета для отображения температуры, времени, часов и цен на топливо на 7-сегментных модулях полуоткрытых знаков.

18 дюймовый LED-дисплей красного цвета для отображения температуры времени часов и цен на топливо 7-сегментных модулях полуоткрытых знаков.

Brand NameNoneModel Number18"-R-88:88OriginMainland ChinaUsageOutdoorDisplay Functiontime and temp.Pixels7mmTube Chip ColorRedMeasurement unitpiece/piecesEach pack1voltage110V or 220Vwatts:98WScreen size1420*570*75mmLetter Height18"Brightness(mcd)4000UsageSemi outdoorModule Size250*460mm28 182,00 ₽28 182,00 ₽Add to CartBuy now28 182,00 ₽loader

Description

led digita numbers module,7 segment of the modules ,12mil  leds chip,remote control RF100 metter controller,

Time and temperature display connection: Connect the digits as above picture, two dots should be connected FALSH on driving card, the program of Main card should be changed TIME&TEMP.

Operating Instructions of Time/temp in RF remote control:

The Time/temp display is the using RF wireless remote control transmitting and receiving channels principles, is free from outside interference of light, distance (50meters is the best to see it), when using it please switch to "ON” that on the right side of the remote, and after using please switch to" OFF ", In this way can avoid to use in mistake and save power. The battery models of the remote control: 12V/27A small batteries..

Operating Instructions:

press "SET and +" button, the first number is shining, at this time, press the "+" and "-" button to adjust the Numbers, when you want to adjust the next number, please press “←”is or“→” button, after this, press" SET "button save and exit the data, the led  screen will display properly.

Detailed Product Description

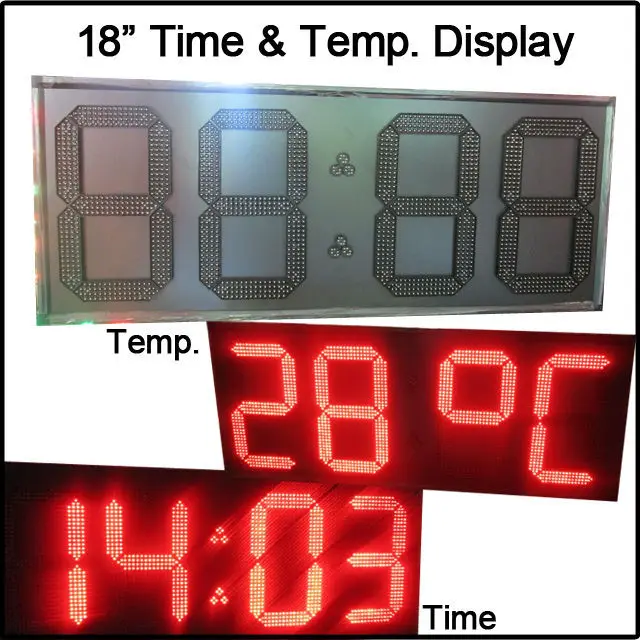

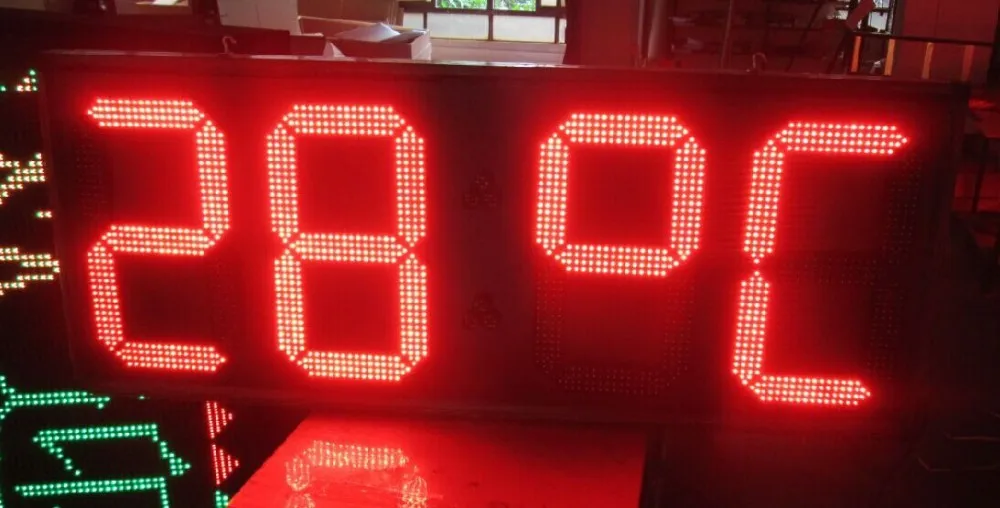

1--display gas price ,time,temperature
2--RF remote control
3--digital module,is popular
4--7 segment

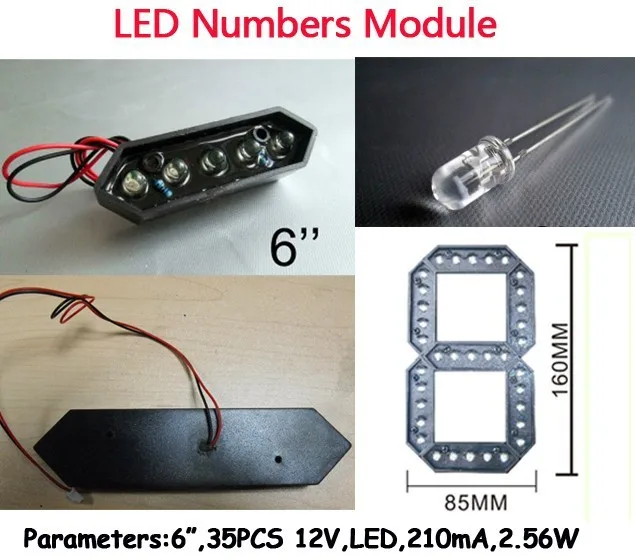

1--waterproof digits module:1 digit=7 segment of the modules.
The client can install the led digits sign by themselves in their
own requirement. Anyway, if the led sign has something wrong,
the client can replace the segment module by themselves. It is
very easy and convenient. Also we can provide the installation
and connecting drawing to our clients. Clients can follow it to
do easily. But the products that were made before can not like
this, if the led sign has something wrong, we need to check the
whole sign, and change the program and the broken leds. It is
not convenient.
2-- The modules are With injection molding, using the Sealed
silicone treatment, They can be waterproof by themselves. The
products which were made before can not be waterproof totally.
Because they used the PC board on the surface, but the water
can come into the inside of the led sign.
3--The brightness of the module:  14*12mil chip, brightness
(4000MCD)---for red color. Green/white/blue will be brighter.
The angel of the led is 65 degree (the best).
4--The effect of the leds will be better. We designed the segment
modules with the Cornice, then it can focus the light and
brightness, we can feel that the led module looks more beautiful
and comfortable. The digits will be clearer.
