RF Wireless 220V Remote Control Switch 1CH  10A 4Receiver+1Transmitter,315/433 MHZ

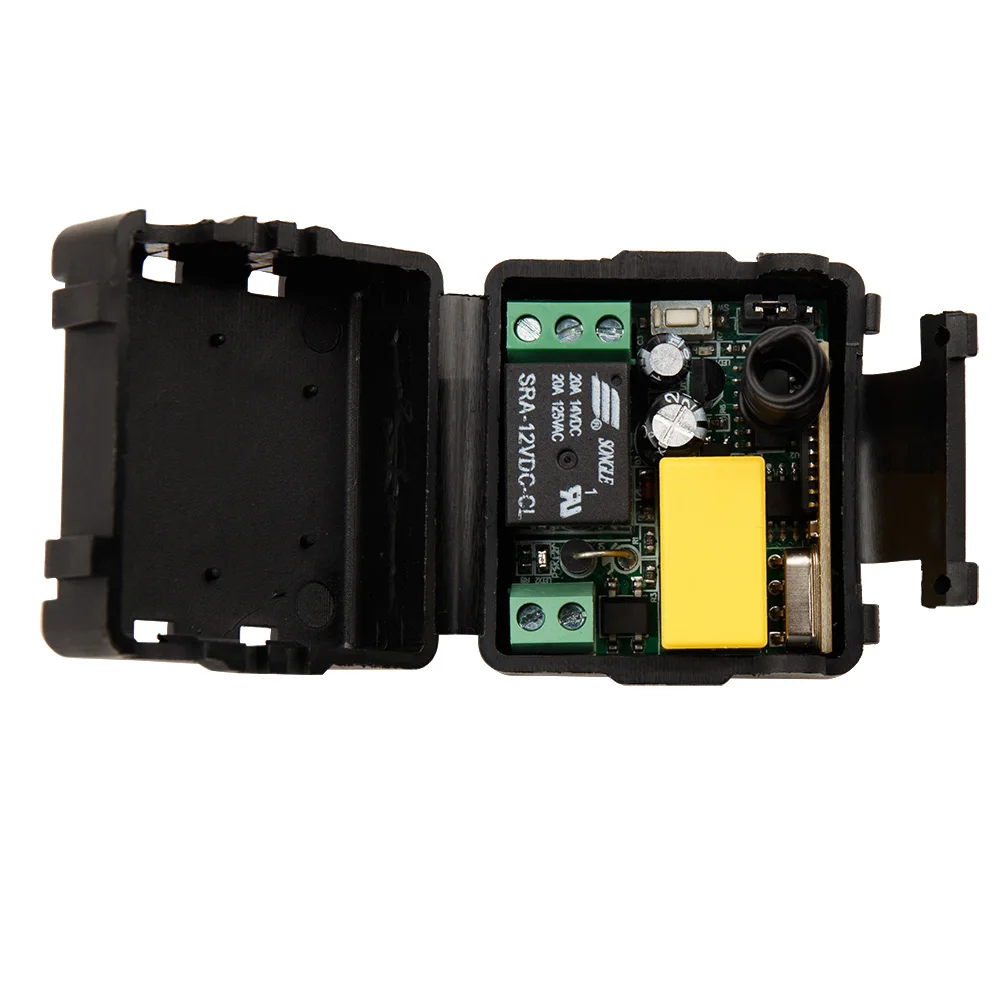

       The company receives the remote control board, suitable for anti-theft alarm, remote control electric doors and Windows, signal control, industrial control, the electric control circuit of lifting equipment and so on. Remote control switch module relay contact output independently, is very suitable for direct control of all kinds of load.

 Working Voltage: AC220V

Working Frequency : 315Mhz/433Mhz  Frequency can choose, if there is no message we   will   send  315 MHZ

Receiver sensitivity: : -105Db

Working temperature : -10'C - +60'C

Output way : Momentary Toggle Latched Adjustable

 Code type : Learning code

Size :35*32*20mm

working/output way:

 Jog/Non-Latched: press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch need one buttons remote control

 Self -lock/Self-Latched: press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one buttons remote control

 Inter-lock /Latched : press one button is working/ON ,press another button is stop/OFF . ( one channel switchneed 2 buttons remote control

 Learning Method:

Press the learning button3 seconds, the indicator light off .then you press any buttons of the remote control to transmite signal . it means studying successfully when the indicator flash 3 times until the indicator light on.

 Remove code:

press the learning button about 8 seconds , the indicator turn on to off to on , it means the information that you keep have been removed successfully

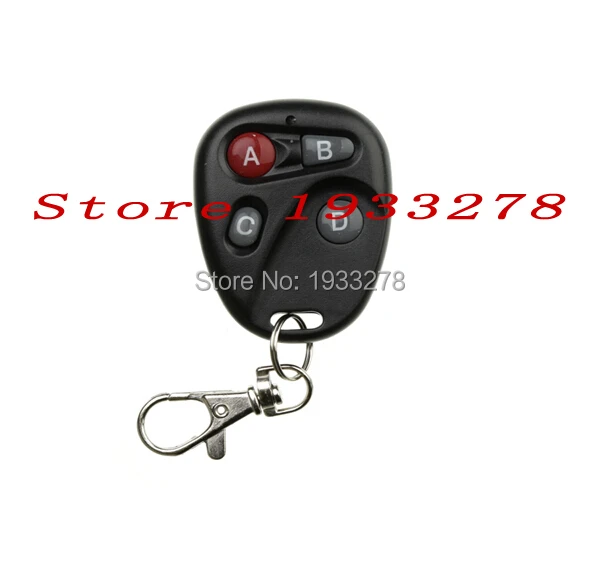

transmitter:

Buttons: 4 Buttons

Working Voltage:DC12V

Operating frequency :315/433MHz

Remote Control Distance: 20-200m

Encode: Fixed code by soldering or EV1527 code

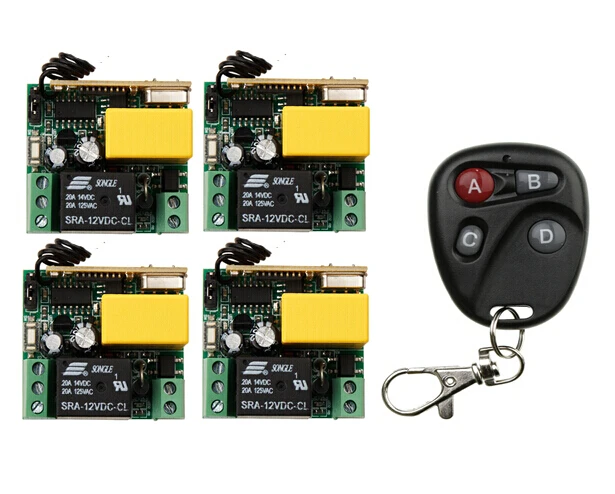

package include:

4* Receiver

1*transmitter
