Waterproof CCTV Pipe inspection camera with meter counter and roller skidsV8-3288PT-1 60m cable

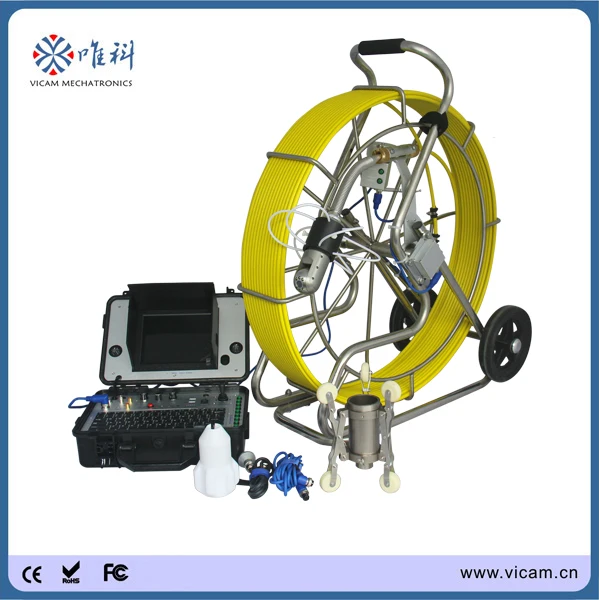

Pipe Inspection Camera Features

1) Φ50mm waterproof IP68 Pan 360°, Tilt 180° bullet camera;

2) Camera head automatic reset;

3) Φ9mm x 120m Fibreglass push rod cable with meter counter;

4) 8 inch TFT LCD color monitor;

5) DVR controller with video, audio recording & playback function;

6) Keyboard real time typewriting;

7) Built-in 8800mA rechargeable Li-ion battery pack;

8) HD DVR system with 128G Solid State Drive(SSD)

Product Description

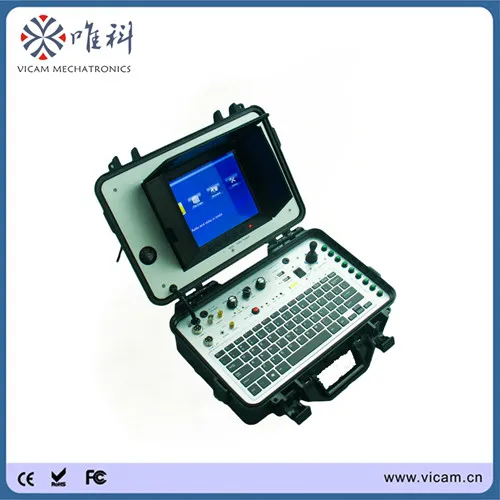

Control system ( HD DVR control box )

8" LCD Screen

PT camera Joystick

HD DVR SYSTEM with 128G Solid State Drive(SSD)

Recording Pause funceion

Keyboard real time typewriting

USB Port connecting to PC

Video input jack 3 options

Microphone Audio recording button

A/V output jack

8800mA rechargeable Li-ion Battery Pack

​

Battery level indicator

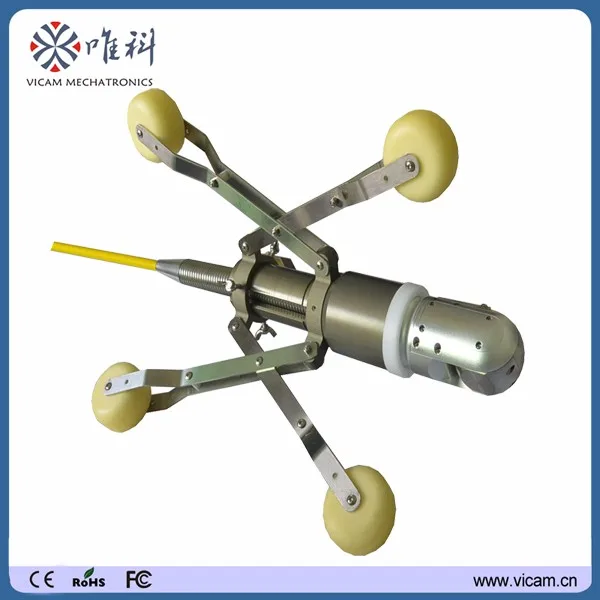

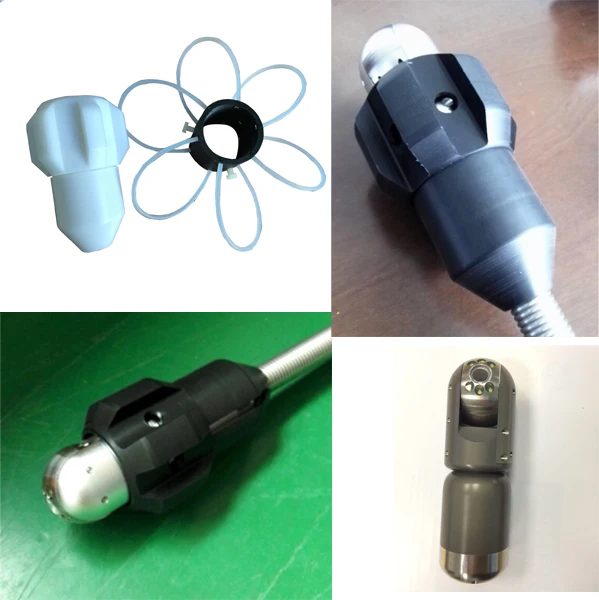

Camera Head

Camera head size: ø50mm x 154mm

Camera head casing material: Aluminum alloy

Camera head window lens material: Sapphire galss

Sensor: 1/4" color CMOS

Static view angle: 120 degree

Sensor resolution: PAL:720H×576V NTSC: 720H×480V;

Horizontal resolution: 700TVL

Shutter: 1s—1/10000s

Frame rate: PAL:50 fields/sec NTSC: 60 fields/sec

TV system: PAL/NTSC optional

Video output: 1.0 Vp-p / 75Ω(CVBS video signal)

Lighting: 6pcs high intensity white LED lights

Waterproof: Waterproof IP68

Rotation: Pan 180 degree, Tilt 360 degree

Working voltage: DC 12V

Working current: 260mA Max

Working environment: -10°~60°

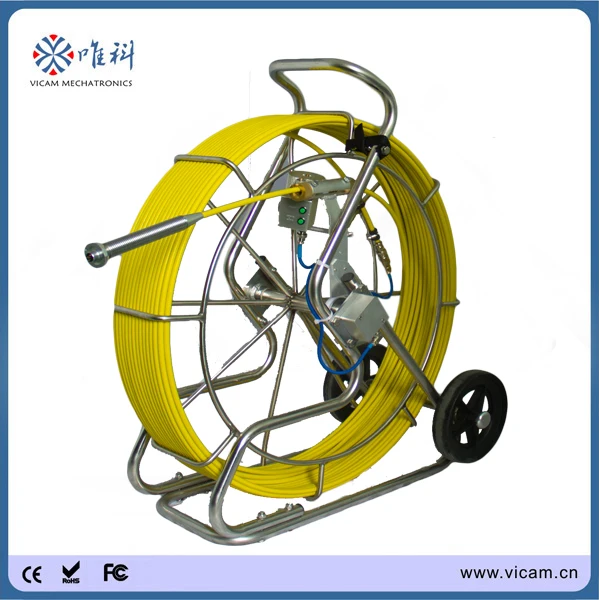

Cable Reel

Type: Push rod cable

Cable material: Fiberglass cable

Cable diameter: ø9mm

Standard cable length: 60m to 120m optional

Max length available: 200m length

Meter counter device: Electronic meter counter

Cable real size: 70 x 28 x 84cm

Our Service

Your satisfaction is more than your order to us.

 Offer you quality products and meet you demands is our always goal

 Any of your inquiry or suggestions will catch our great attention

 OEM / ODM Services are available

Certifications

About VICAM

Vicam Mechatronics Co., Ltd is located at Shangxue Industrial Park in Shenzhen, South of China. Specialising in the design, manufacture and assembly of video inspection systems, we have introduced the international advanced technology, designed and produced various video inspection cameras. Most of our products sold to Europe, America, Australia, Middle East, South Africa and South America market. In the process of Vicam growing up, we have got very important technical support from CYBERIA SAS, and Shenzhen Institutes of Advanced Technology.

Our main product range include portable pipeline video inspection system, industrial and city underground pipe video inspection system, special video inspection cameras and CCTV robots for complex applications and hazardous area rated environment.

The Vicam tenet is to rely on the advanced technology, meet the global market demand, provide good quality products and good service to all our customers!
