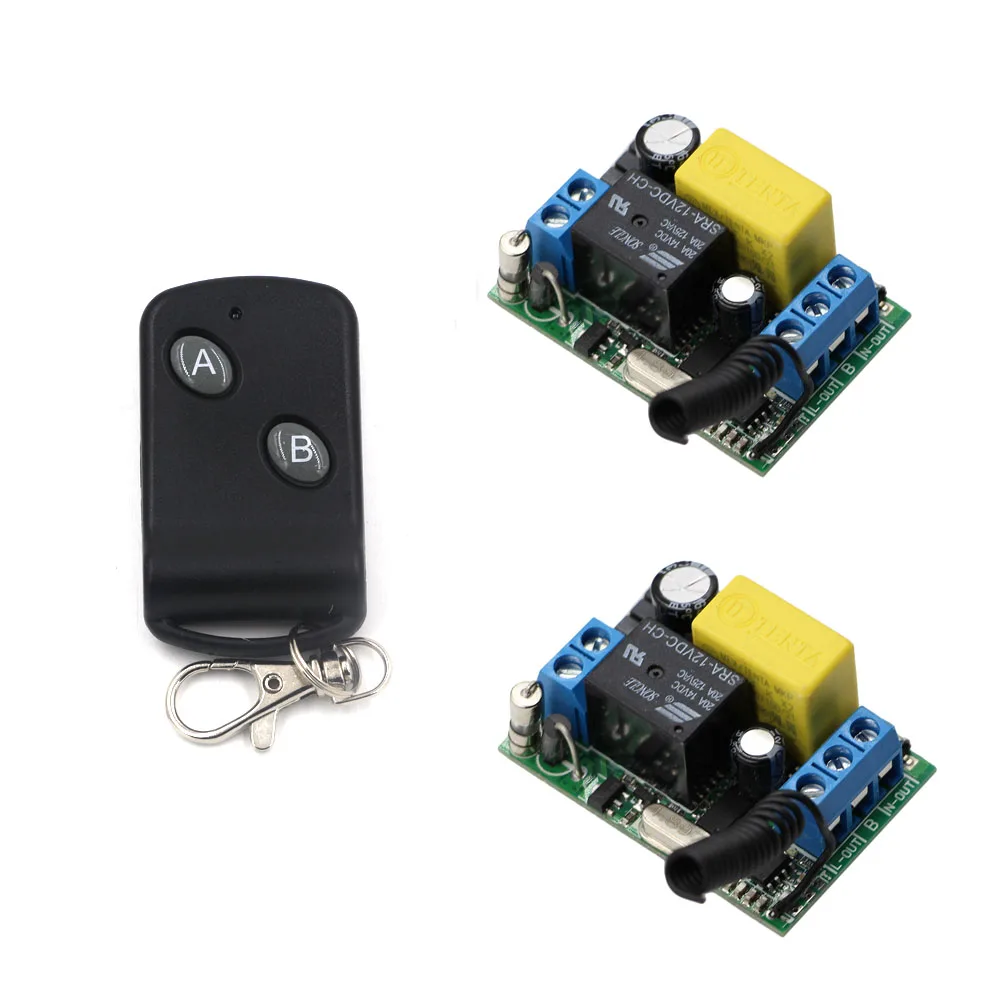

AC220V 1CH 10A Relay Wirelesss Remote Control Switch Remote Switch Output 220V Receiver Transmitter ; 315/433Mhz



Item Description:

Specification: 1.Receiver Working Voltage: AC220V (Input AC220V Output AC220V) Max Current: 10A (have better lower than 7A ) Channel: 1CH Working Frequency : 315MHZ/433.92MZH Receiver sensitivity: : -105Db Working temperature : -10\'C - +60\'C Output way : Momentary. Toggle .Latched Adjustable Code type: Learning code Add Controller by the Learning Button on the receiver

2.Transmitter

Remote Control Distance: 50m/150ft (Please notice that is the ideal distance without any block and signal interfere , it would rise and fall about 10%-50% with the block and signal interference.) Encode: Fixed code, soldering 2260 2262 Frequency: 315/433Mhz (Default 315MHz) Power Supply: battery (NOT Include)   3.Function:    A: Momentary-----------No connection is Momentary. B: Toggle------------Connect "T& Mid Dot "is Toggle. C: Latched------------- Connect "L& Mid Dot" is Latched.   Momentary------------Press the Transmitter button , the receiver relay is ON, release button; the receiver relay is OFF,   Toggle---------------Press transmitter button for 1 time , the receiver relay is ON, press button again, the receiver relay is OFF,   Latched------------Press transmitter button A, the receiver relay is ON, Press the transmitter button B, the relay is OFF.     4.Learning Method:   Learning code: Keeping press the learning button ,the LED indicator flash fast then press the transmitter button,until the LED indicator stop flashing fast ,it means learning successfully.   Remove code: Keeping press the Learning Button on the receiver about 10 seconds . The code will be cleared.   5.Package including:   2 X Receiver (With cover) 1 X Transmitter (battery not include)     ​
