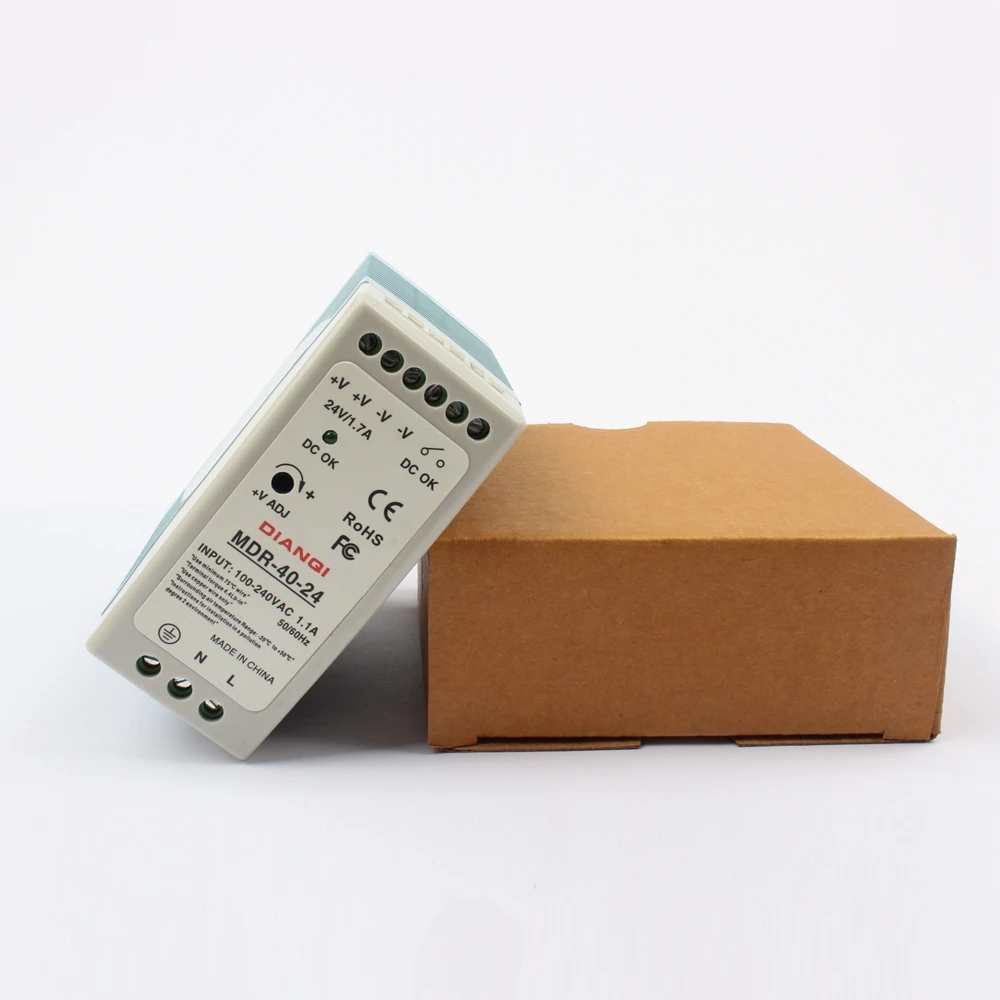

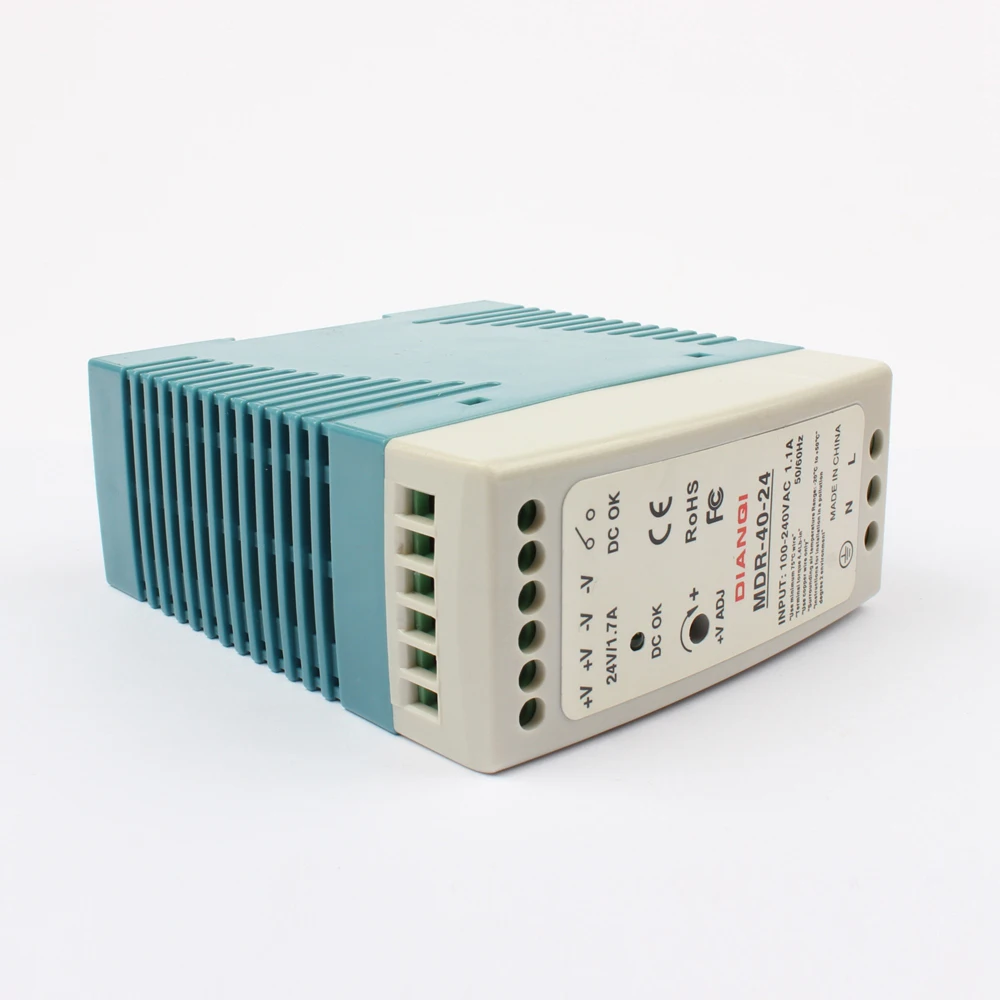

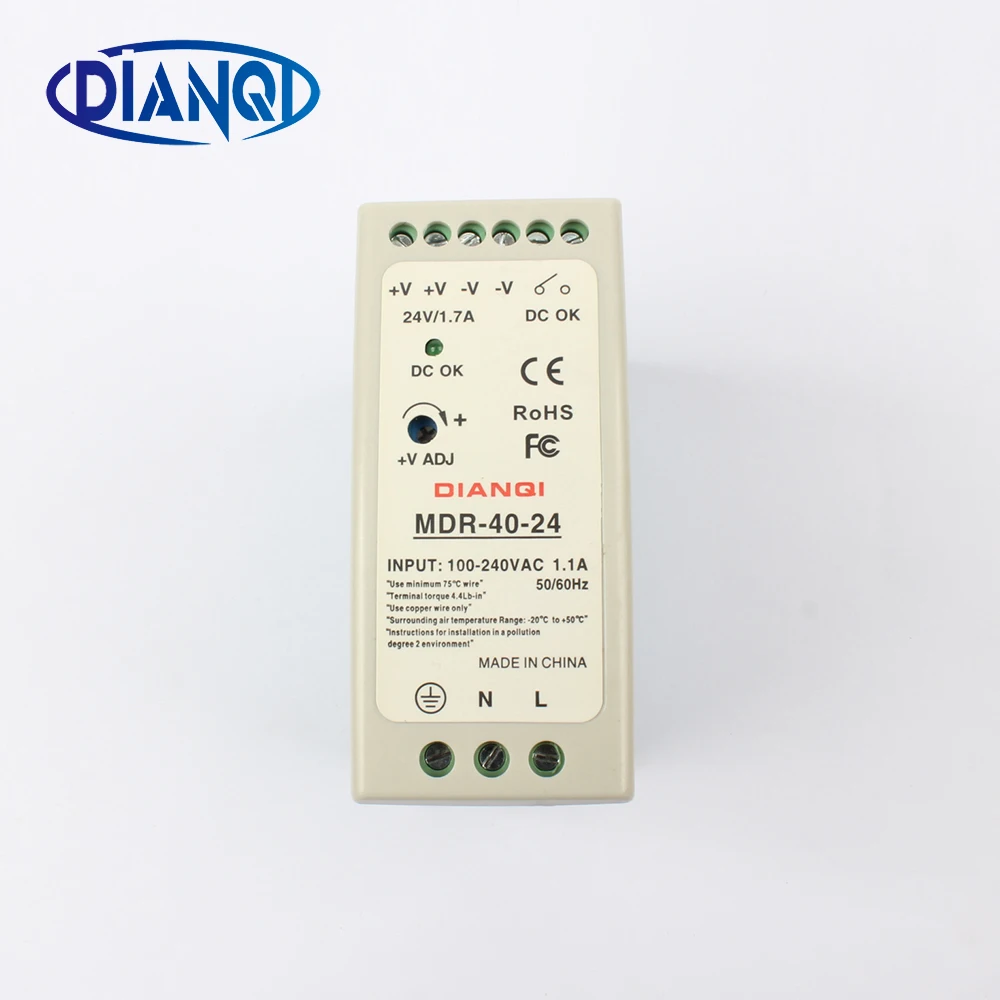

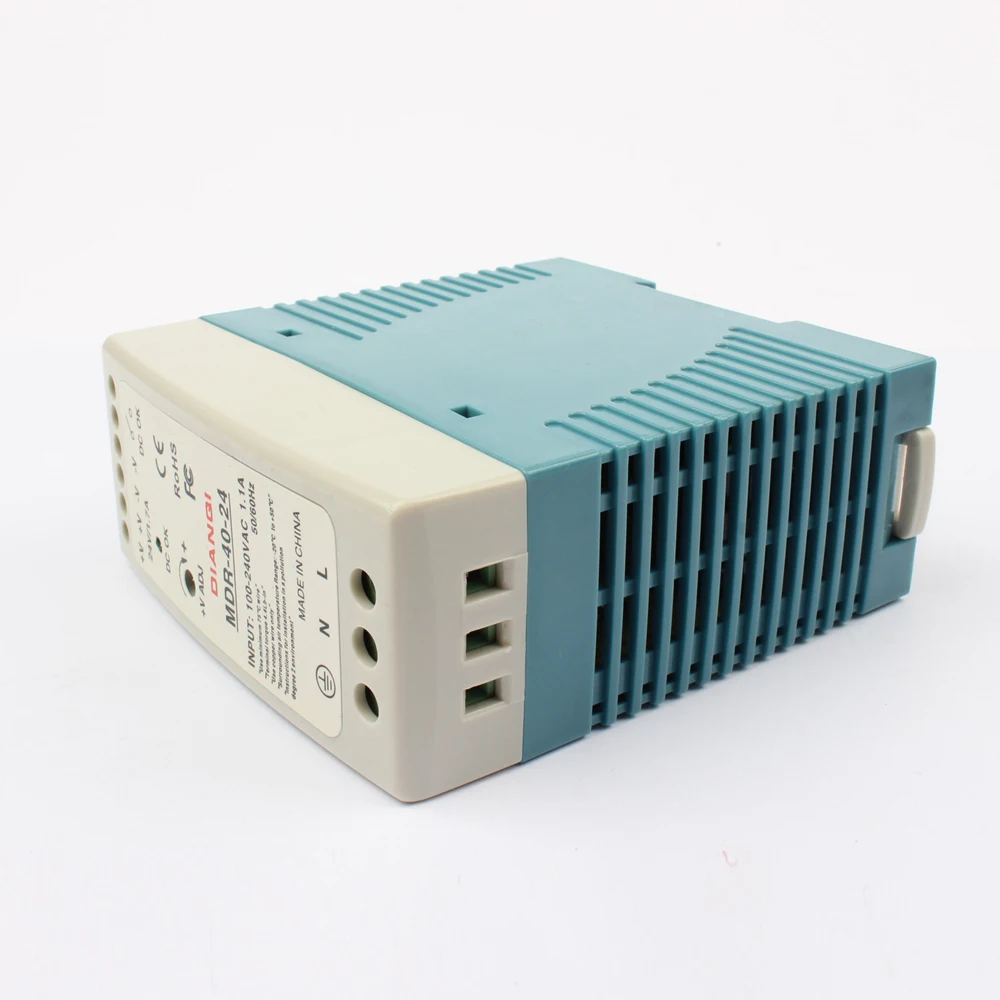

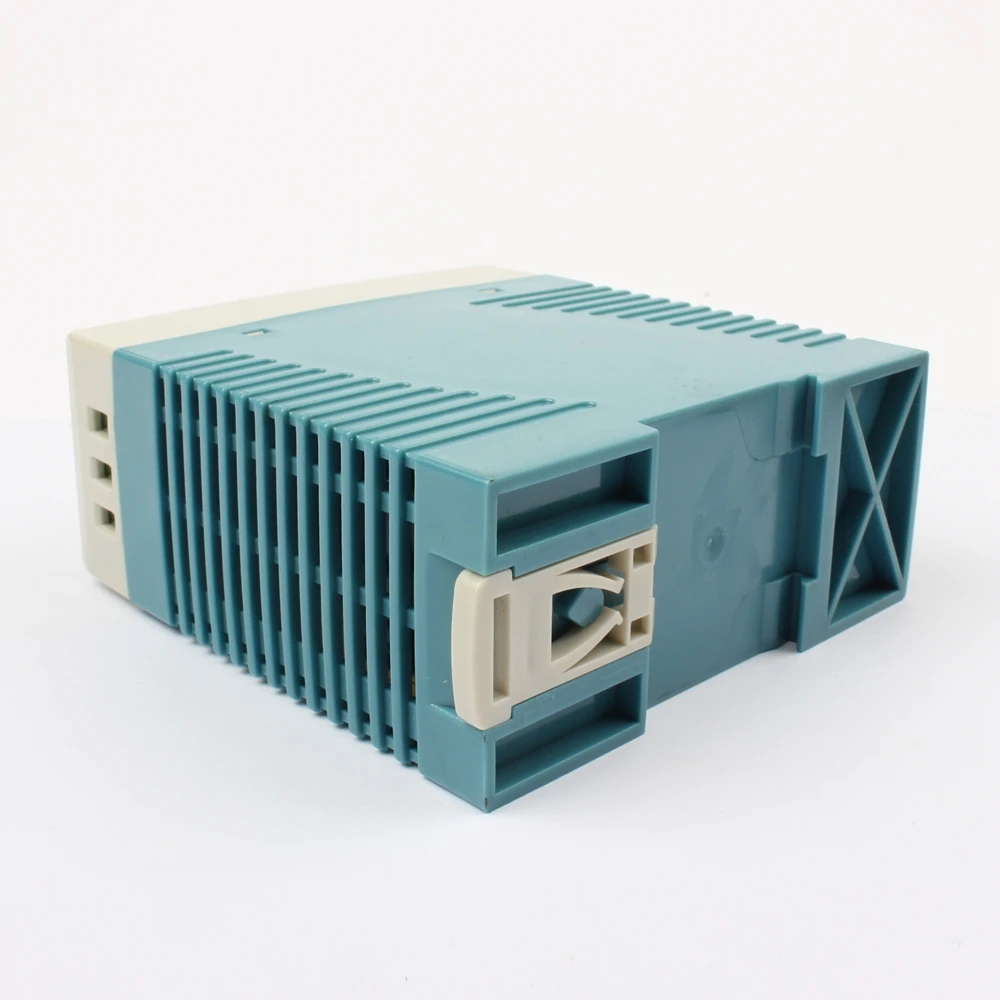

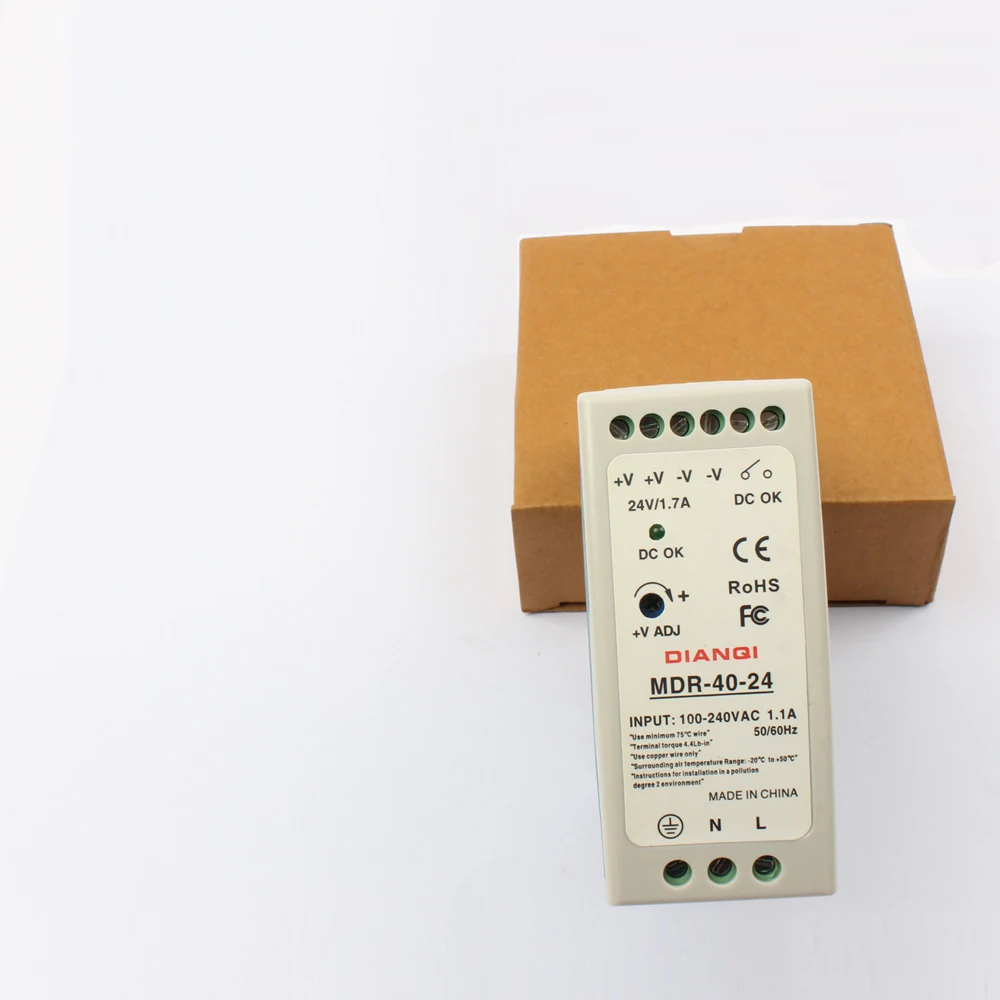

High quality din rail power supply switch MDR-40-24 40W 24V output DIANQI Switching | Обустройство дома
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| May-15-2026 | 0.24 руб. | 0.2 руб. | 0 руб. |
| Apr-15-2026 | 0.0 руб. | 0.10 руб. | 0 руб. |
| Mar-15-2026 | 0.42 руб. | 0.96 руб. | 0 руб. |
| Feb-15-2026 | 0.79 руб. | 0.7 руб. | 0 руб. |
| Jan-15-2026 | 0.14 руб. | 0.68 руб. | 0 руб. |
| Dec-15-2025 | 0.80 руб. | 0.81 руб. | 0 руб. |
| Nov-15-2025 | 0.51 руб. | 0.58 руб. | 0 руб. |
| Oct-15-2025 | 0.40 руб. | 0.63 руб. | 0 руб. |
| Sep-15-2025 | 0.25 руб. | 0.66 руб. | 0 руб. |
Описание товара
Fast-track:
Mini Din Rail Power Supply Switching |
|||
|
40W |
60W |
|
MDR-40-12 |
MDR-60-12 |
||
MDR-40-24 |
MDR-60-24 |
||
MDR-40-48 |
MDR-60-48 |
||
Superman's store |
|||
Features:
Universal AC input/ full range
Protections: Short circuit/ Over load/ Over voltage
Cooling byfree air convection
Canbe installed on DIN rail TS-35/7.5 or 15
isolation classⅡ
LED indicator forpower on
100% full load burn-in test
2 years warranty
| SPECIFICATIONS | ||||
| OUTPUT | Model | MDR-40-12 | MDR-40-24 | MDR-40-48 |
| DC Voltage | 12V | 24V | 48V | |
| Rated Current | 3.33A | 1.7A | 0.83A | |
| Current Range | 0-3.33A | 0-1.7A | 0-0.83A | |
| Rated Power | 40W | 40.8W | 39.8W | |
| Ripple & Noise | 120mVp-p | 150mVp-p | 200mVp-p | |
| Voltage Tolerance | ±1% | ±1% | ±1% | |
| Line regulation | ±1.0% | ±1.0% | ±1.0% | |
| Load regulation | ±1.0% | ±1.0% | ±1.0% | |
| Setup, Rise Time | 500ms,30ms/230VAC 500ms,30ms/115VAC at full load | |||
| Hold Up Time | 50ms/230VAC 25ms/115VAC at full load | |||
| INPUT | Voltage Range | 85~264VAC 47~63Hz; 120~370VDC | ||
| AC Current | 1.1A/115VAC 0.7A/ 230VAC | |||
| Efficiency | 86% | 88% | 88% | |
| Inrush Current | Cold start 30A/115VAC 60A/230VAC | |||
| Leakage Current | <1mA/240VAC | |||
| PROTECTION | Over Load | 105% ~ 150% rated output power | ||
| Protection type: Constant current limiting, recovers automatically after fault condition is removed | ||||
| Over Voltage | 15.6-18V | 31.2-36V | 57.6-64.8V | |
| Protection type: Shut down o/p voltage, re-power on to recover | ||||
| ENVIRONMENT | Working Temp., Humidity | -20~+70; 20%~90% RH non-condensing | ||
| Storage Temp., Humidity | -40~+85; 10%~95%RH | |||
| Temp. Coefficient | ±0.03%/(0~50) | |||
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes | |||
| SAFETY | Withstand Voltage | I/P-O/P: 3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-F/G: >100M Ohms / 500VDC/25/70% RH | |||
| STANDARD | Safety Standard | Design refer to UL508,TUV EN60950-1 | ||
| EMC Standard | Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-1EN61204-3, heavy industry level, criteria A | |||
| OTHERS | Dimension | 40*90*100mm(W*H*D) | ||
| Weight | 0.3Kg | |||
| Packing | 42pcs/carton/13.6kg/0.82CUFT | |||
| NOTE | 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 temp. of ambient temperature. | |||
| 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. | ||||
| 3.Tolerance: includes set up tolerance, line regulation and load regulation. | ||||
| 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | ||||
