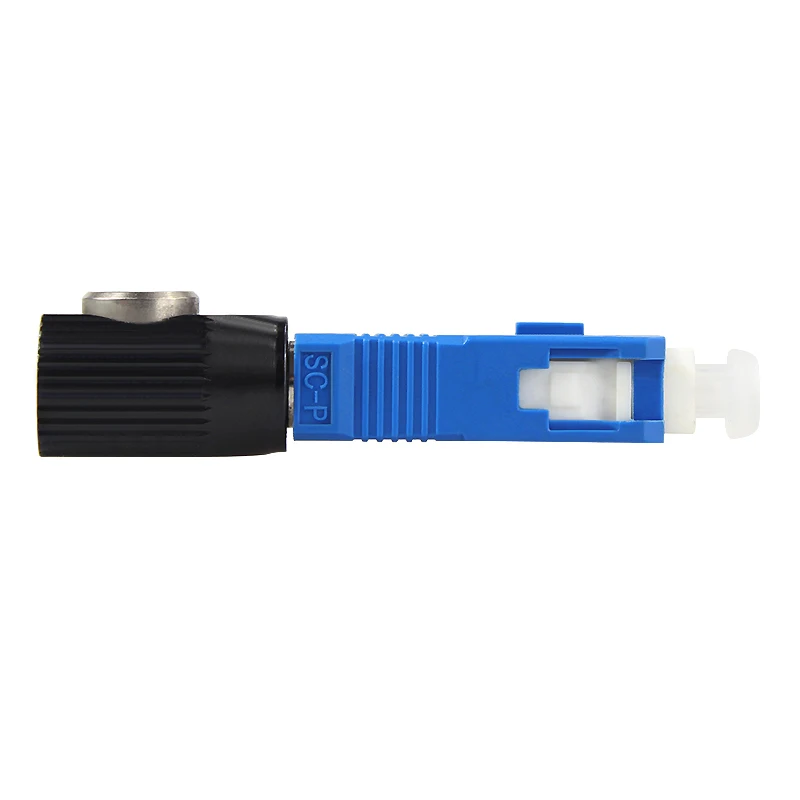

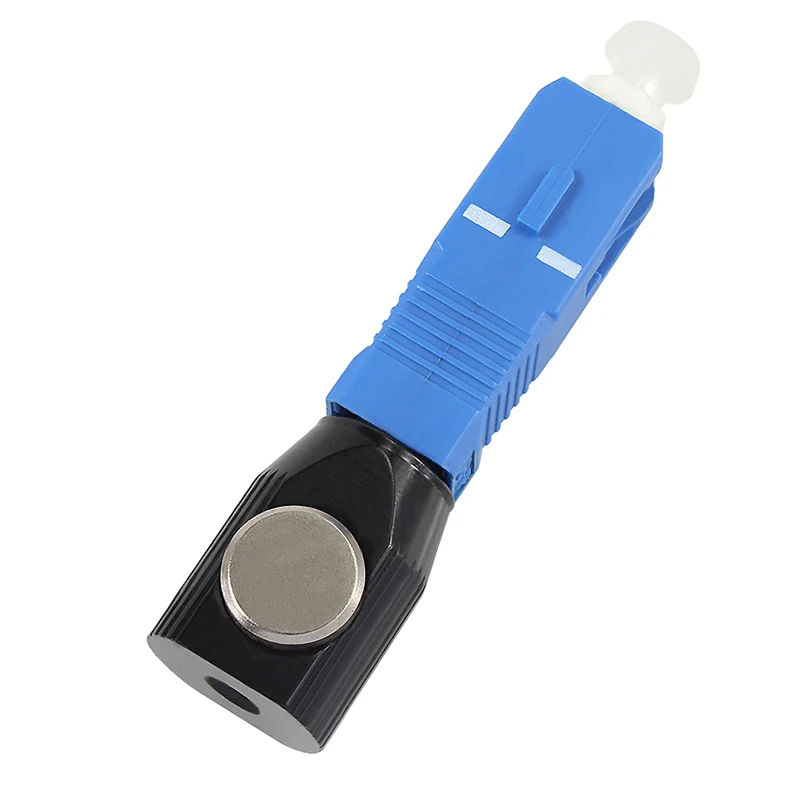

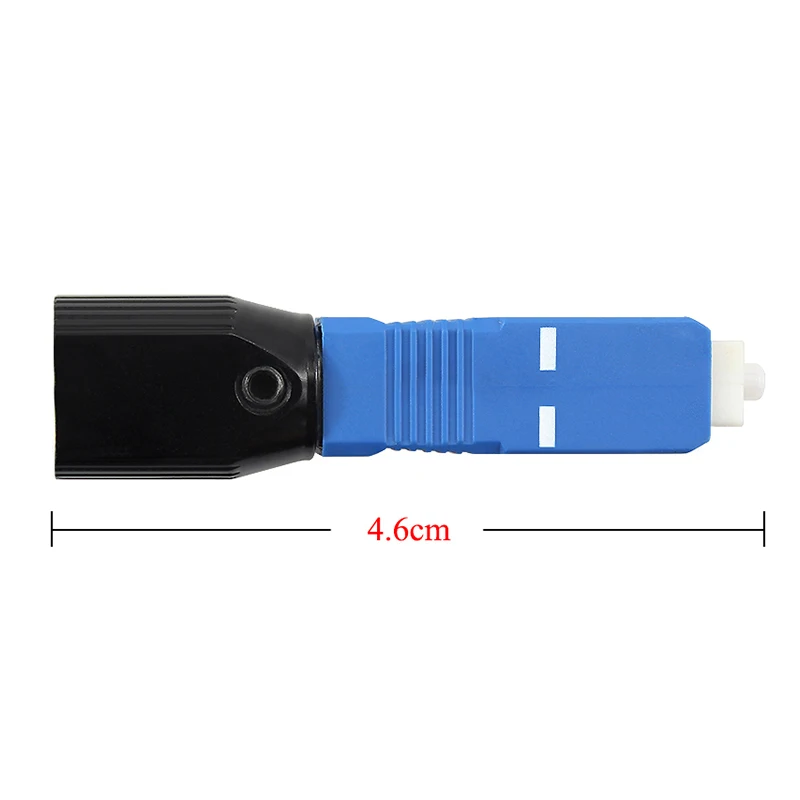

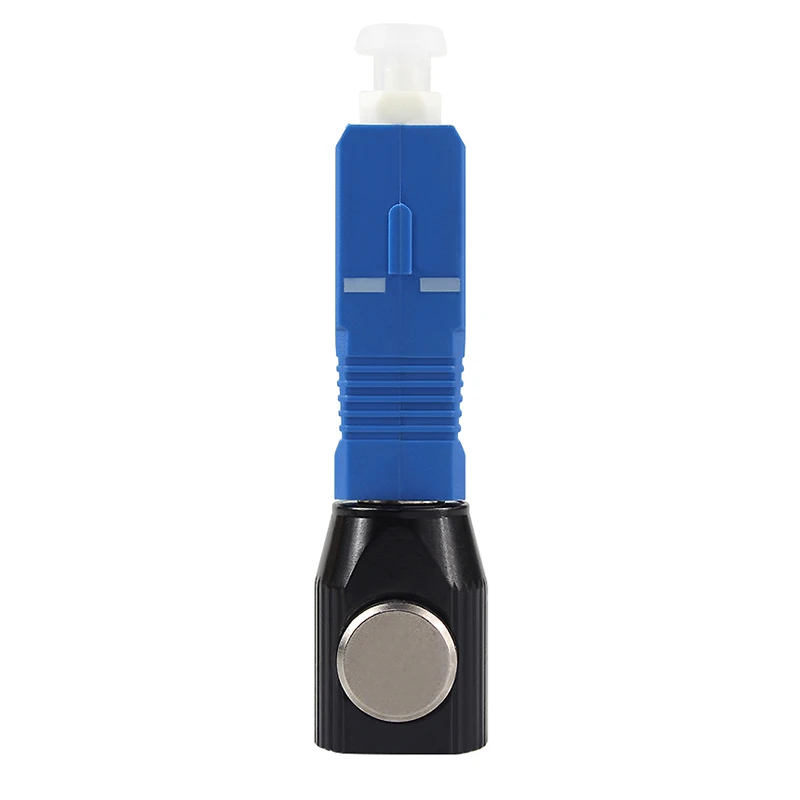

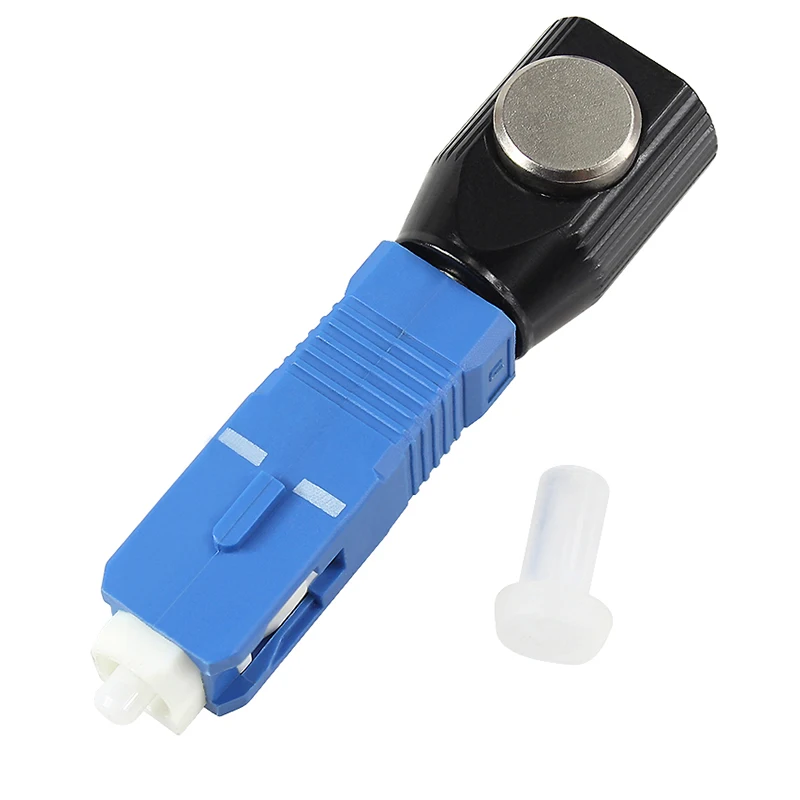

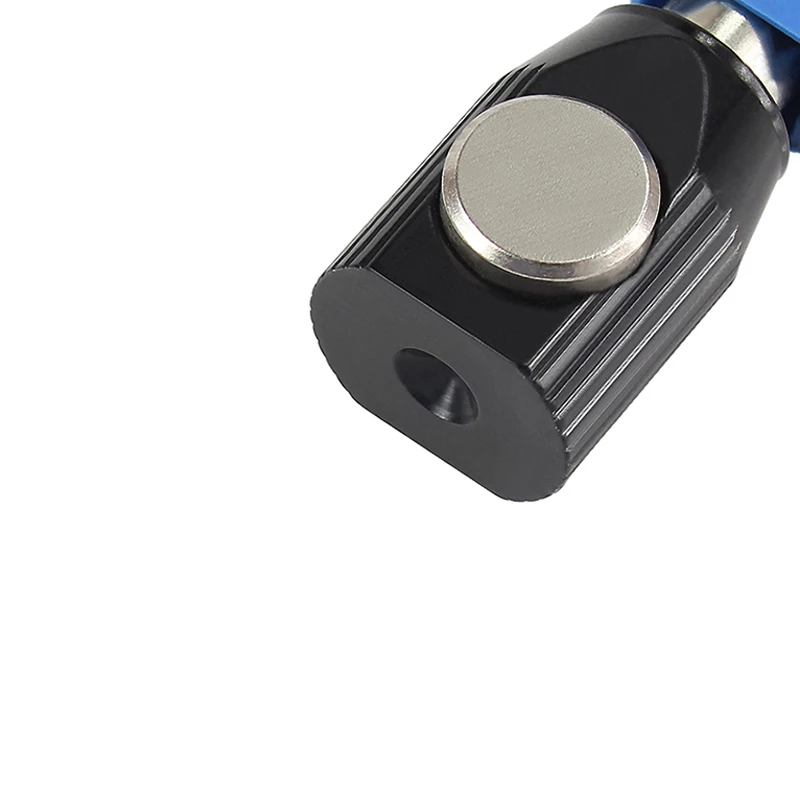

Bare fiber adapter is a simple auxiliary tool for the testing of optical fiber, and is very suitable for the emergency repair of optical fiber and temporary connection. The insertion core of the bare fiber adapter and the no epoxy glue in the optical fiber through hole are easy to be inserted in the bare optical fiber, pull out and repeatedly use, and have low insertion loss.   Feature: * Operation is simple and intuitive, can be observed by the naked eye. * Single mode and multimode optical fiber can be applied. * Unique design, safety, reliability and low insertion loss of optical fiber. * Without any dielectric core and epoxy adhesive and the through hole, easy to insert, bare fiber pull-out and repeated use. * Insert core and connector module can be replaced, insert core aperture size and connection head can be customized, can be applied to a variety of changing needs.   Specification: 1. Insert core diameter: 125-127um 2. Insert core Outside diameter: LC-1.249mm FC-2.499mm 3. Insertion Loss Typical: ≤0.2dB; 4. Return Loss: ≥50dB; 5. Exchangeability: ≤0.2dB; 6. Repeatability: ≤0.2dB; 7. Durability: >1000 times; 8. Fiber type: SM/MM 9. Operating Temperature: -40℃~+ 80℃ 10. Storage Temperature: -45℃~+ 85℃   Applications: * Effect on bare fiber, temporary connection OTDR, optical power meter, light source and other optical fiber port data and testing instruments and equipment. * Temporary connection of optical fiber and optical fiber emergency repair.   Package included: 1 x Round Type SC UPC Bare Fiber Adaptor ​
