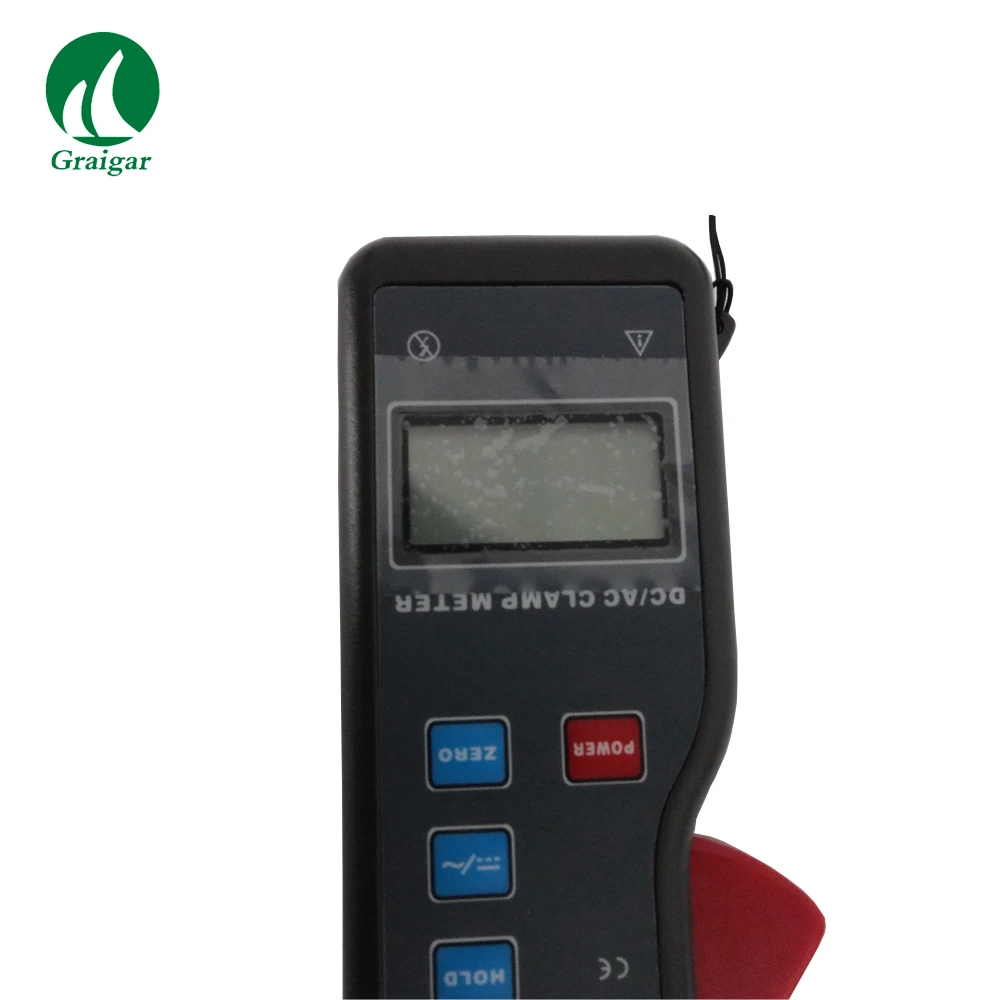

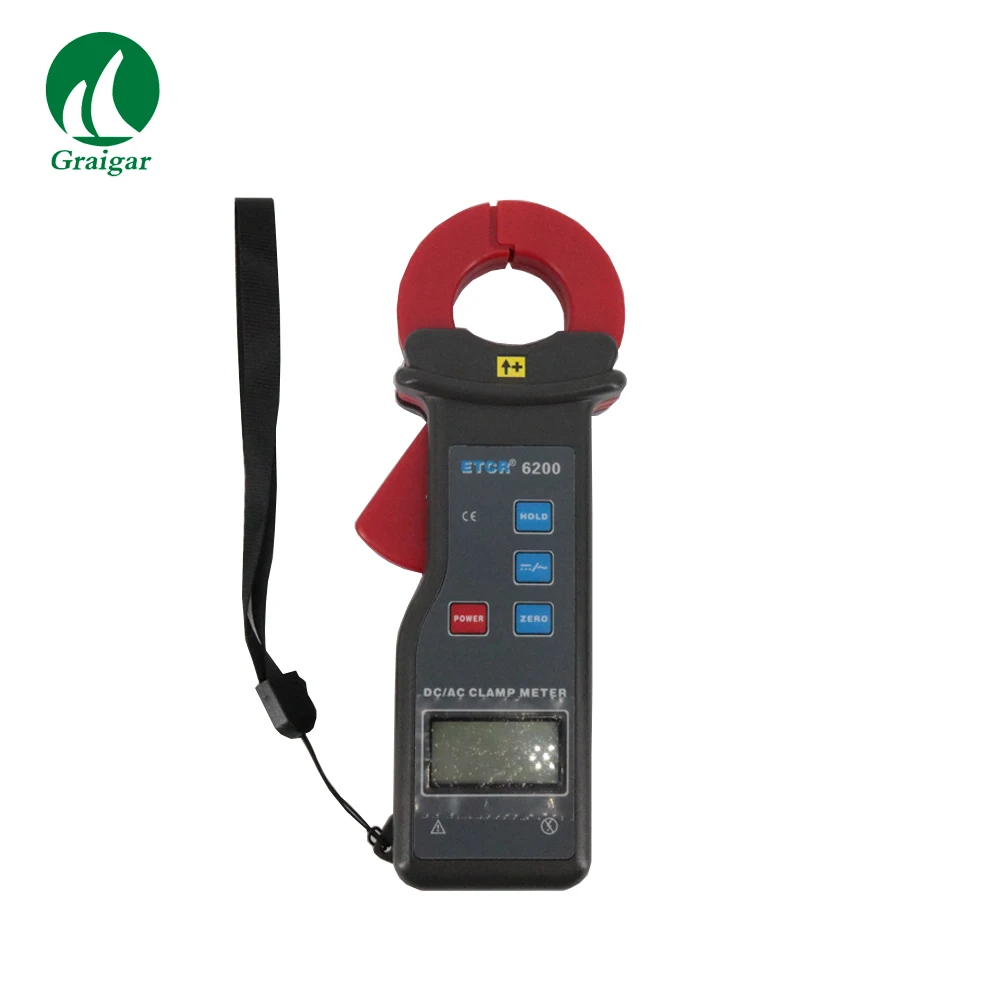

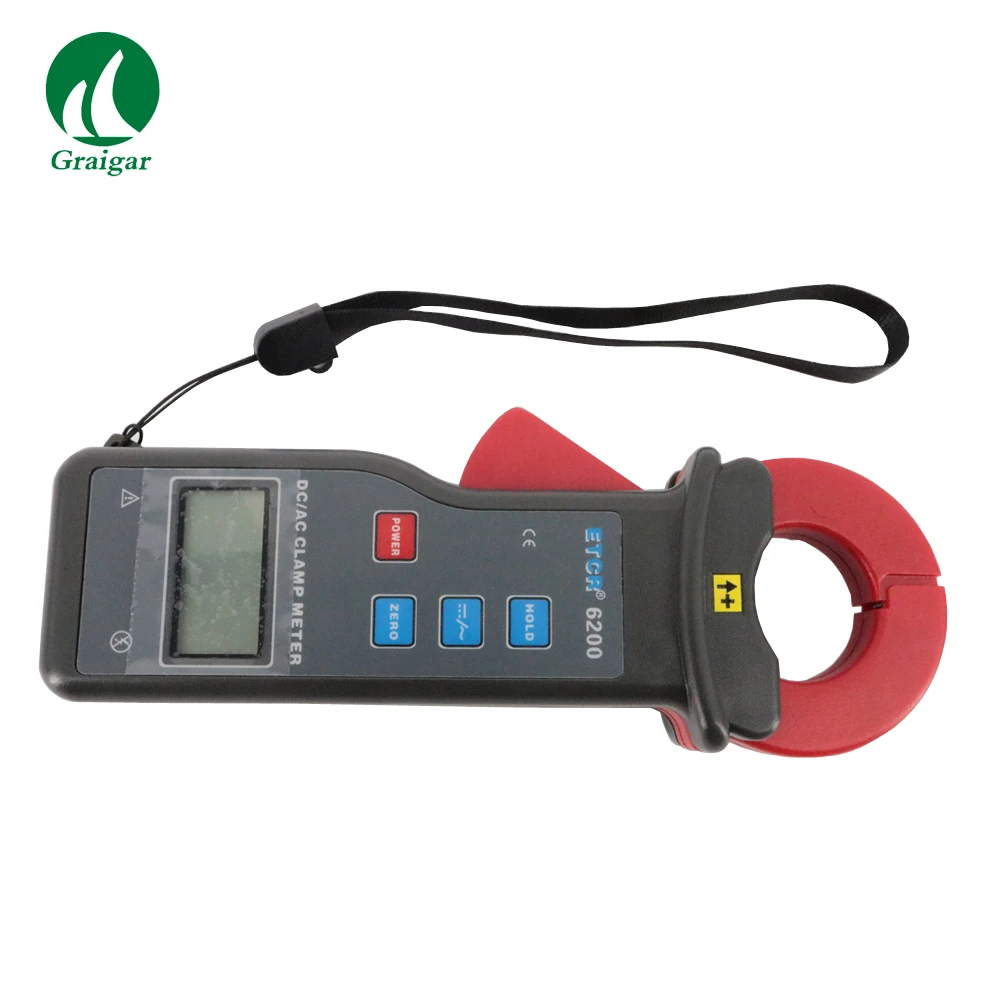

GRAIGAR ETCR6200 DC Leakage Current Meter Clamp AC/DC Leakage Current Clamp Meter ETCR6200

ETCR6200 AC/DC Leakage Current Clamp Meter

Ⅰ. Introduction

AC/DC Leakage Current Clamp Meter also named: Car Leakage Current Clamp Meter, Car Standby Current Clamp Meter, Car Inrush current Tester, Car Charge Current Tester. It is specially designed for online measurement of AC/DC leakage current, current below 600V by adopting up-to-date CT technology and digital integration technology. It is especially suitable for measure car standby current, leakage current, inrush current. It is a product with the characteristic of relatively small size, high accuracy, strong anti-interference capability and automatic shifting. It is apply to car leakage rapid detection, consumed current detection, quickly find the fault of the wire broke leakage, equipment fled electric, line contact with iron, measuring the motor inrush current and alternator charge current etc. It could be widely use in those fields as car repair, car leave factory test, car parts test, the current detection in telecommunication room, electric power overhauling, meteorology, oil detection, etc.

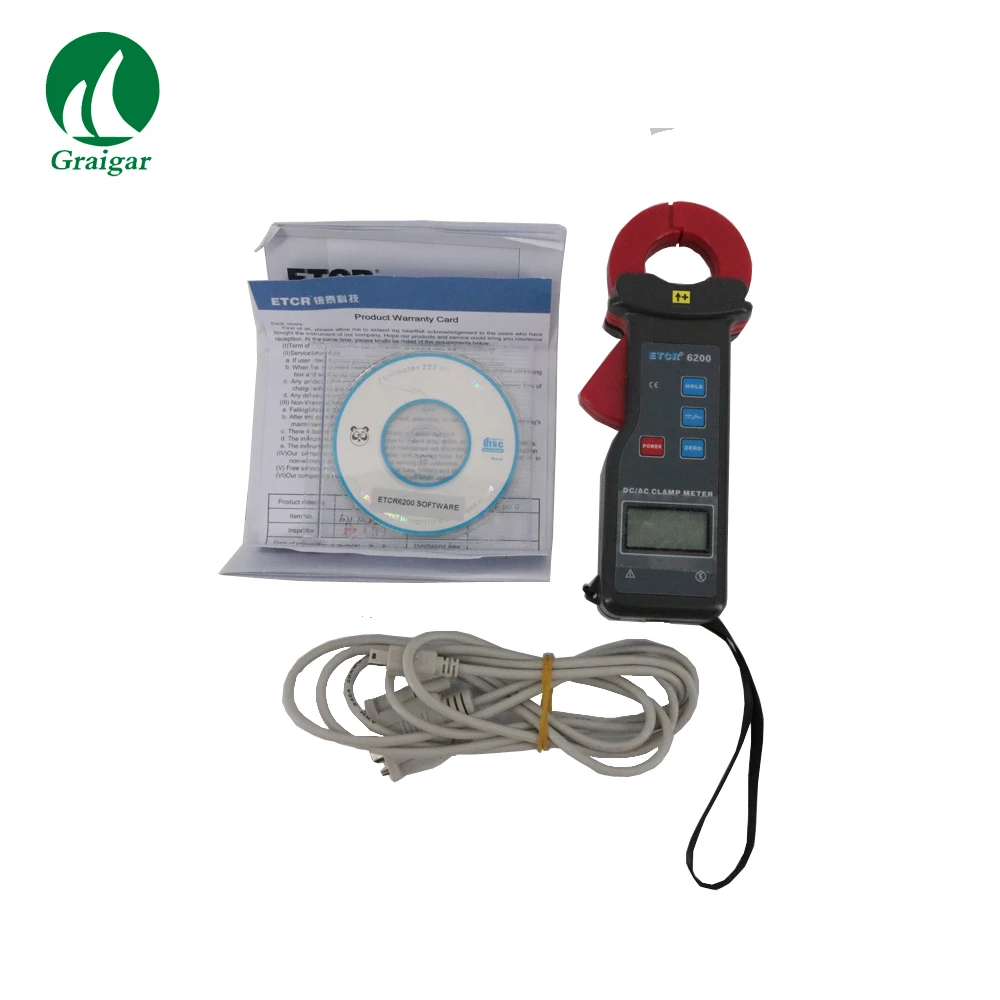

It has those functions as peak holding, data holding and data storage. It obtains one RS232 interface, communication cable and software, through the computer, it can online real-time monitoring, historical query, dynamic display, MIN-AVG-MAX indication, alarm setting and indicating, data reading, saving and printing.

Model	ETCR6200
Function	Measurement of AC/DC current, leakage current, repairing the car circuit.

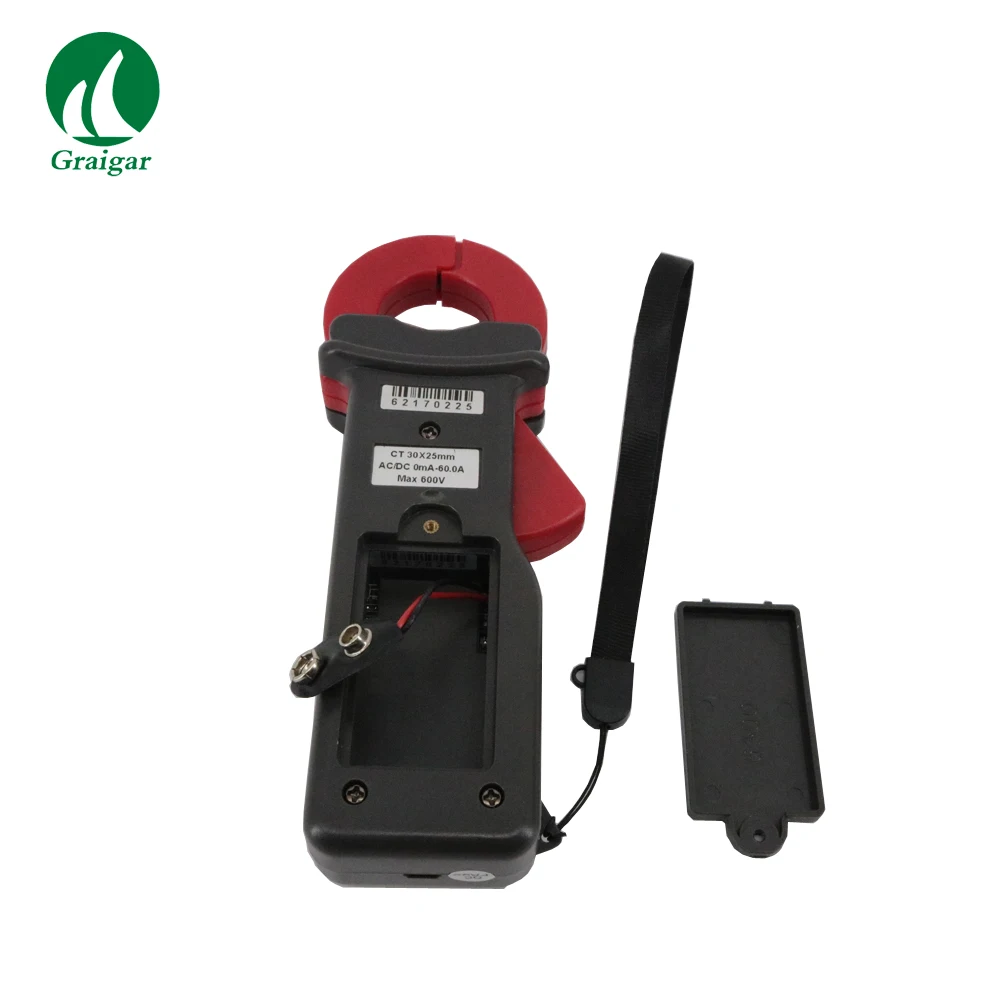

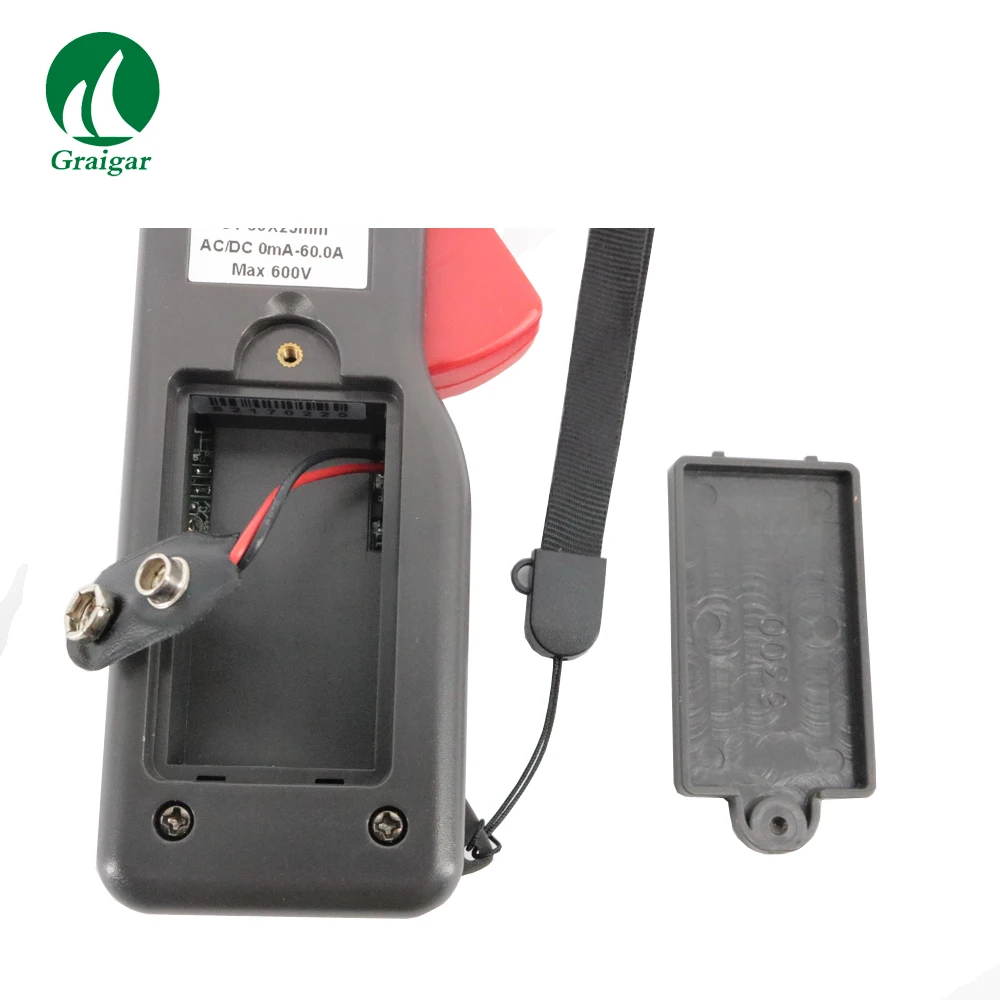

Power Supply	Zn-Mn dry battery,6F22,9V, continuous use for 30h
Test Mode	Clip-on CT, noncontact measurement

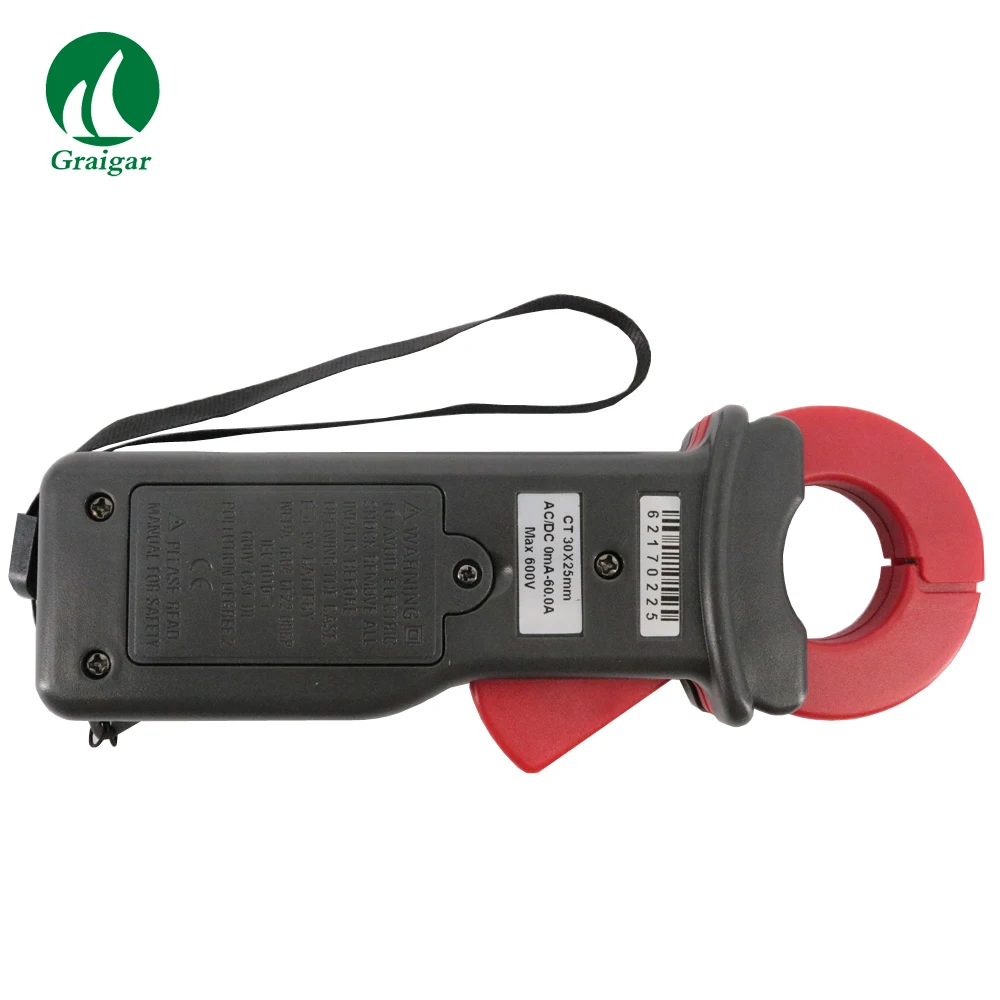

Clamp Size	25mmX35mm
Measurement Range	0mA~60.0A AC/DC
Resolution	1mA AC/DC
Accuracy	±2%rdg±5dgt (23℃±5℃, below 75%rh)

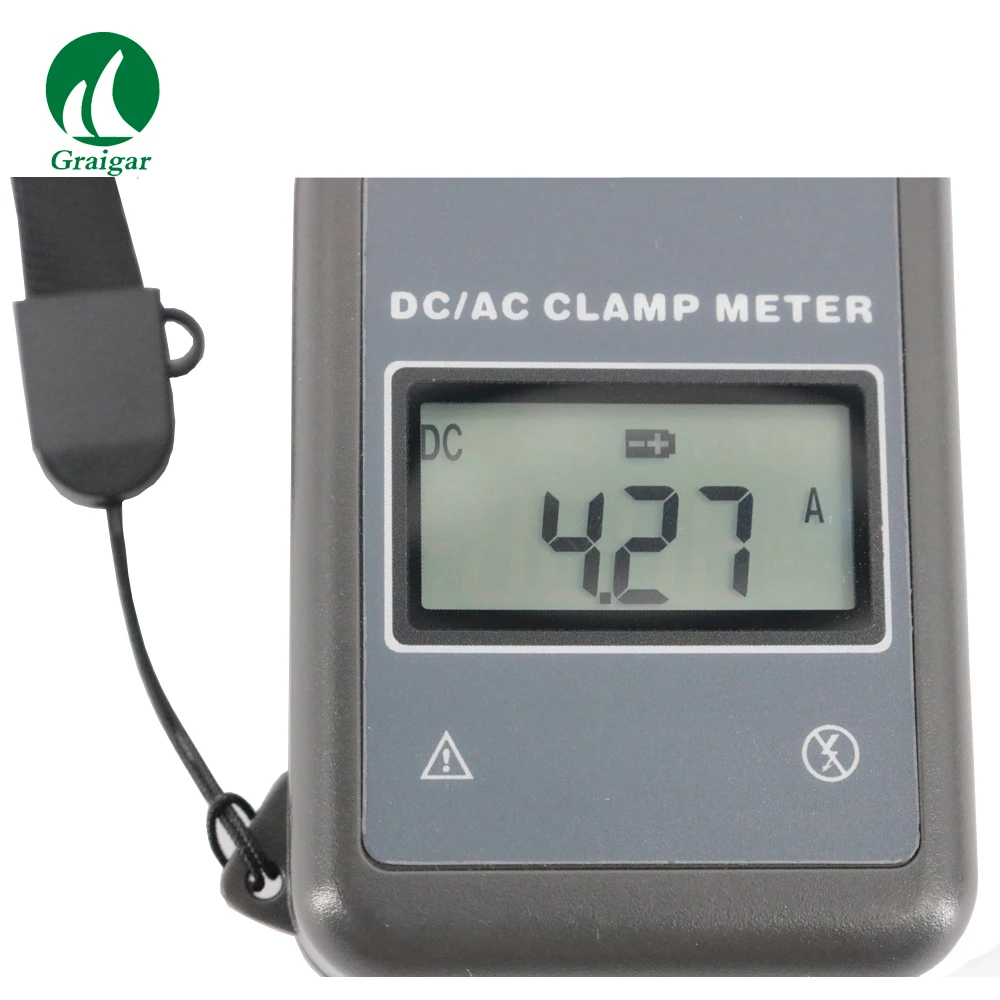

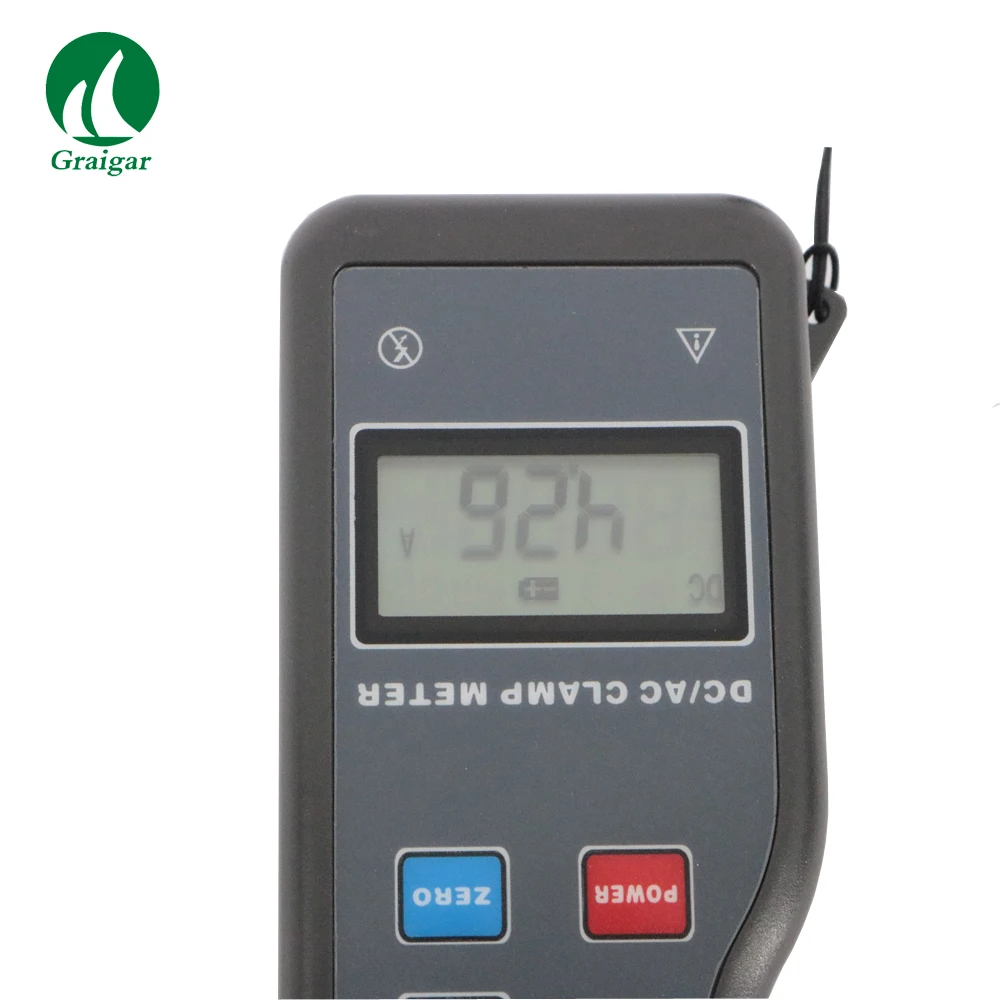

Display Mode	Four digits LCD display
Dimension	LWH: 168mm×65mm×34mm
LCD Dimension	35mm×21.5mm; display domain: 32mm×15mm
Sampling Rate	2 times/s
Frequency	AC: 45Hz-400Hz
Polarity Indication	DC current auto identified and display“—”

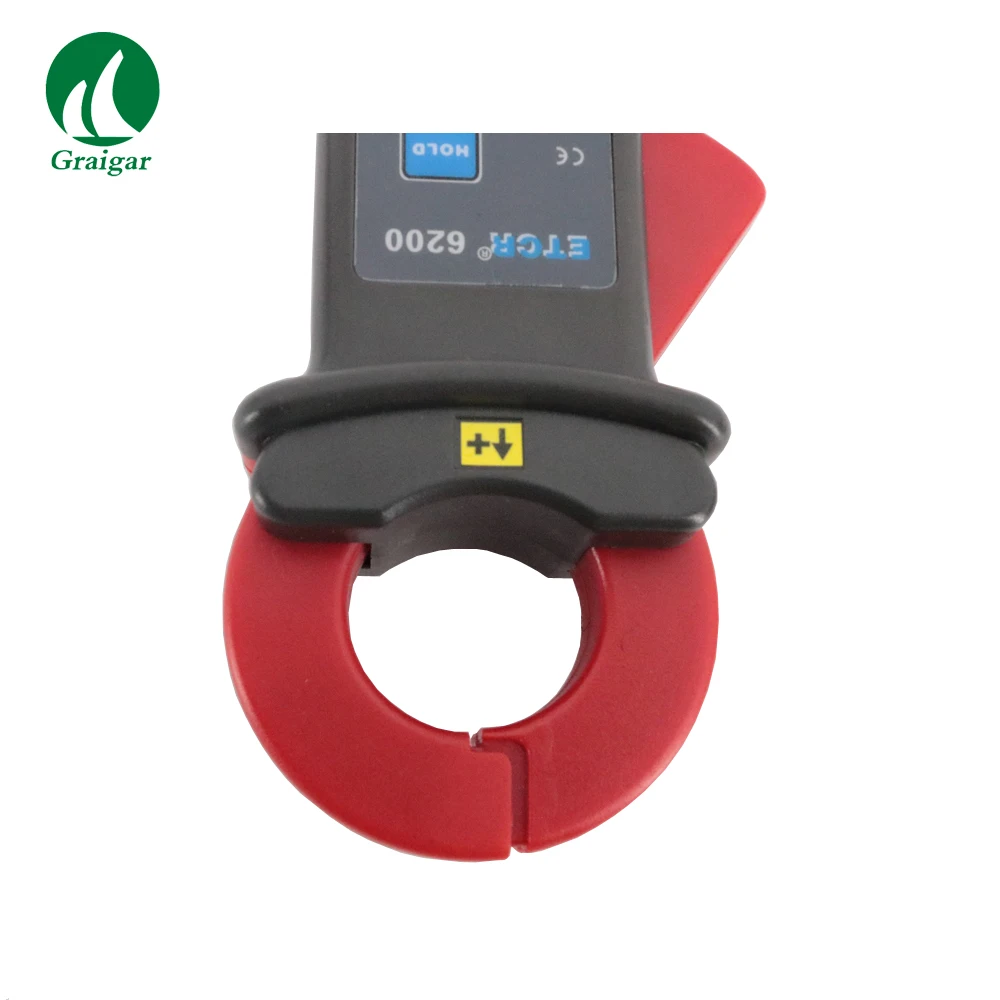

Test Position	Tested wire in the jaw center
Range Shift	Automatically
Line Voltage	Do not exceed AC 600V
RS232 Interface	Data stored in the memory of the meter via RS232 upload to PC
Com-Configure	Baud rate:9600, data bit:8, stop bit:1, check bit: NONE
Data Memory	99 units, FULL blinks when the memory is full
Reading Hold	DH indicating the reading is hold
Out of Range	OL indicating the current is out of range
Auto Power-off	5 Minutes after power on, it will power off automatically to lower the power consumption
Battery Voltage	Indicating the battery voltage is lower than 7.2V.Then the battery have to be changed.
Weight	180g (including the battery)
Working Current	10mA
Humiture	-10℃-50℃,below 80%rh
Limit Temperature Error	-10℃-0℃ and 40℃-50℃, within 2%rdg
Humiture Storage	-10℃-60℃,below 70%rh
