integrated with related PC software.
s Its n main s features e are s as follows:

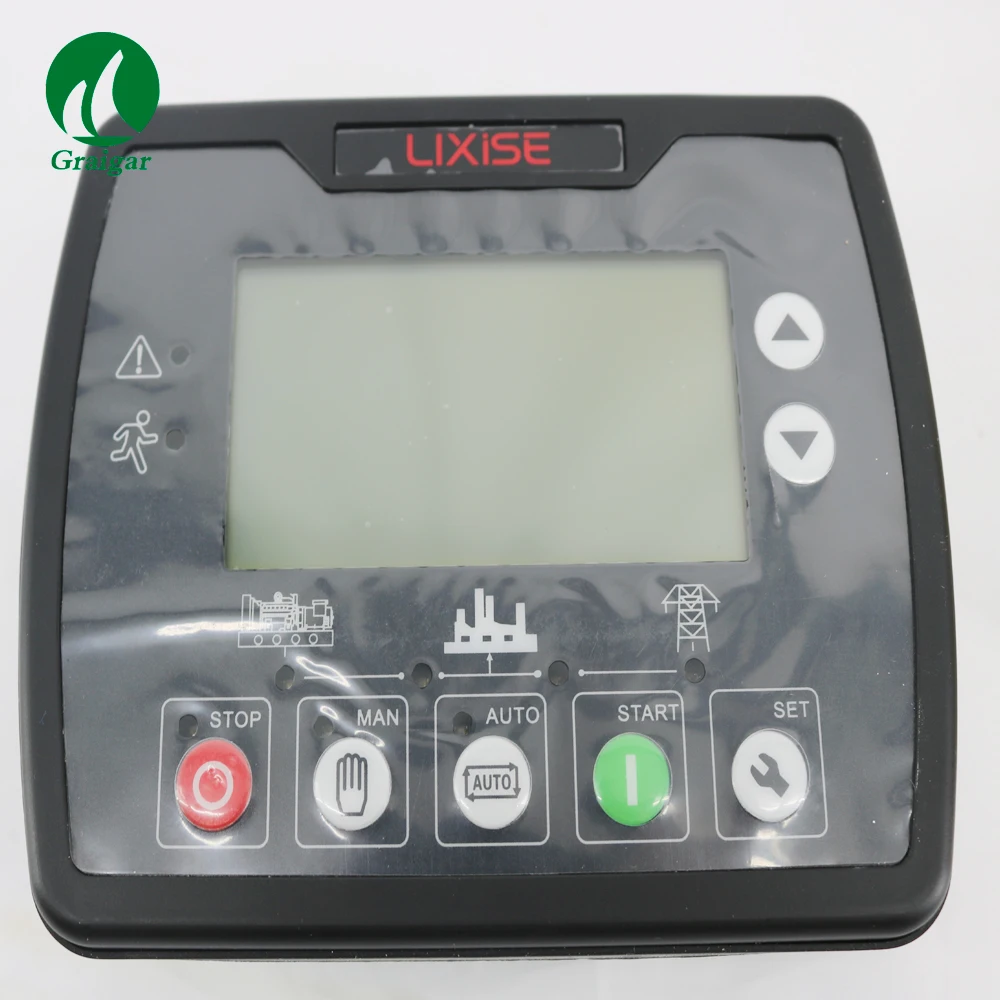

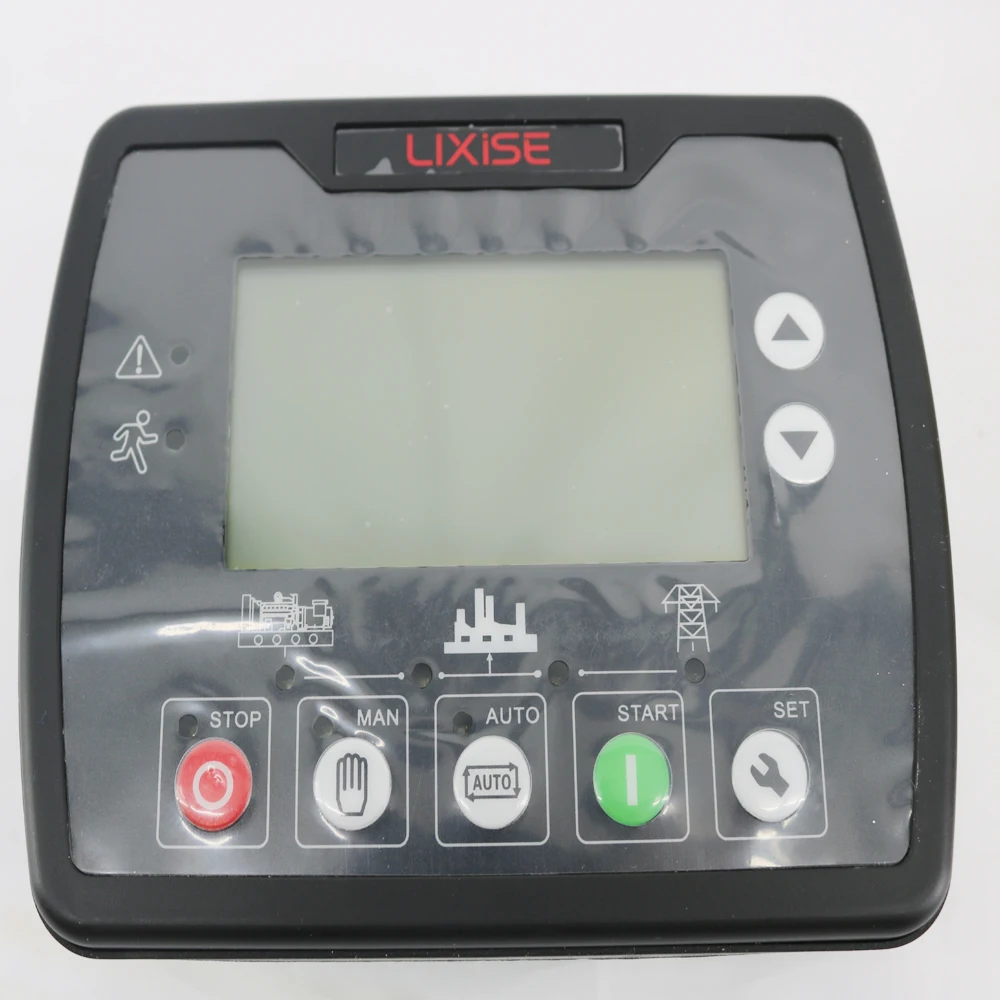

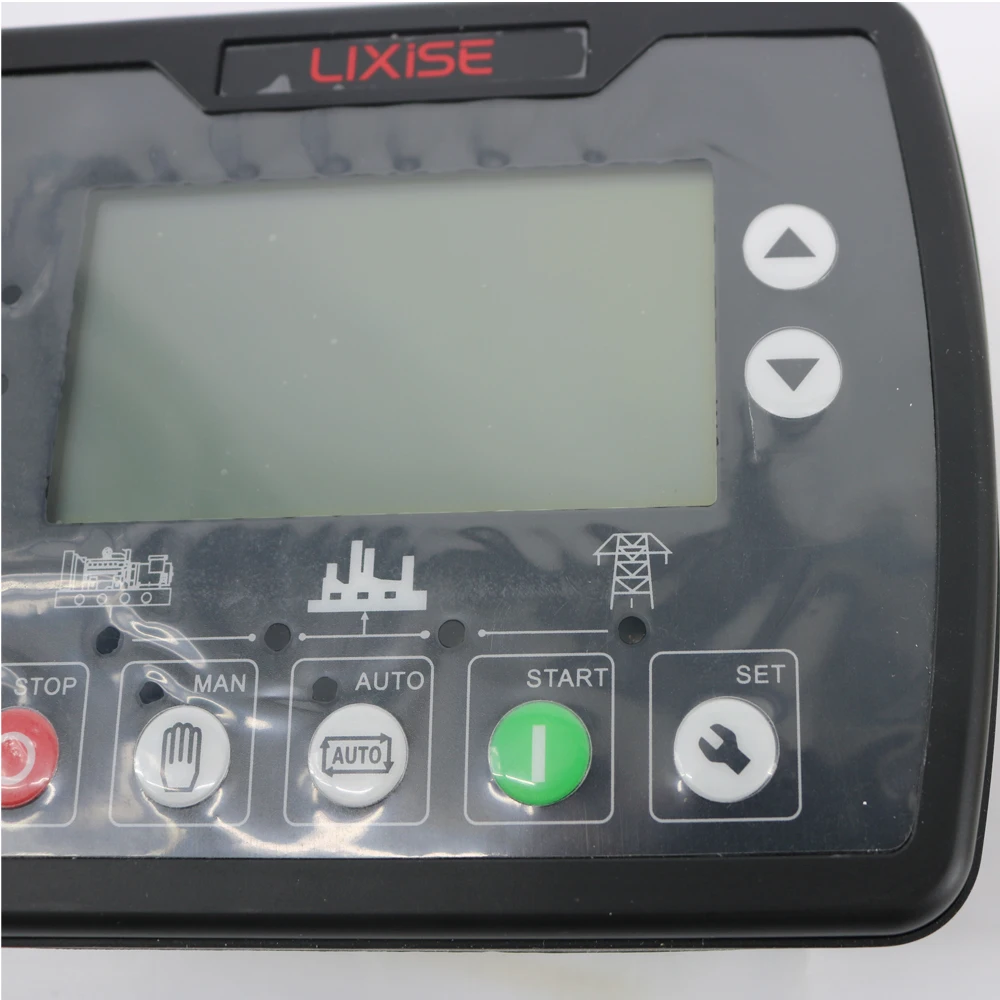

Display :132×64 LCD with emerald green backlight;

Language :Chinese, English, Spanish and Russian;
Operating :good feeling button pushing, long button life;

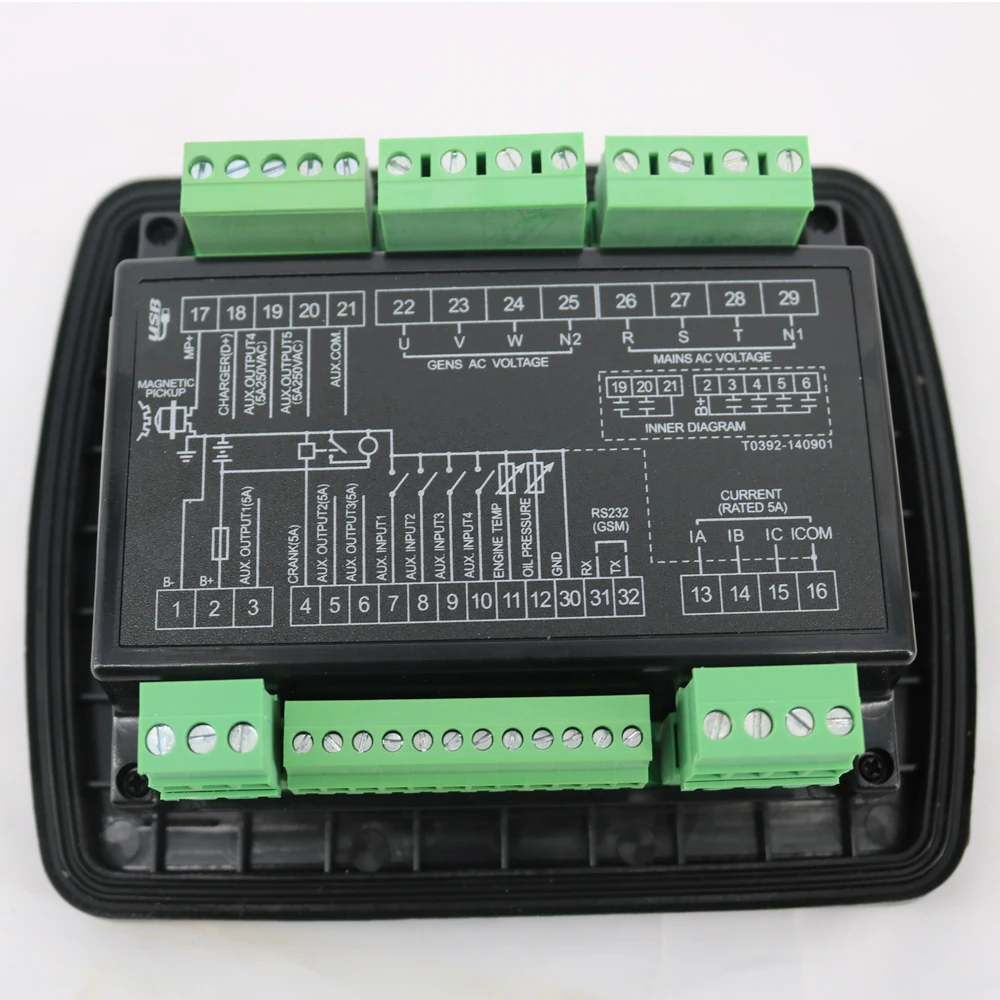

Suitable for :3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with
voltage 120/240V and frequency 50/60Hz.

Protection: Automatic start/stop of the genset, ATS(Auto Transfer Switch) control with perfect fault
indication and protection function;
Output Control :With ETS, idle control, pre-heat control, speed raise control and speed drop control,
All output ports are relay-out;

Parameter Settings :All the parameters can be adjusted using front panel of the controller or use the

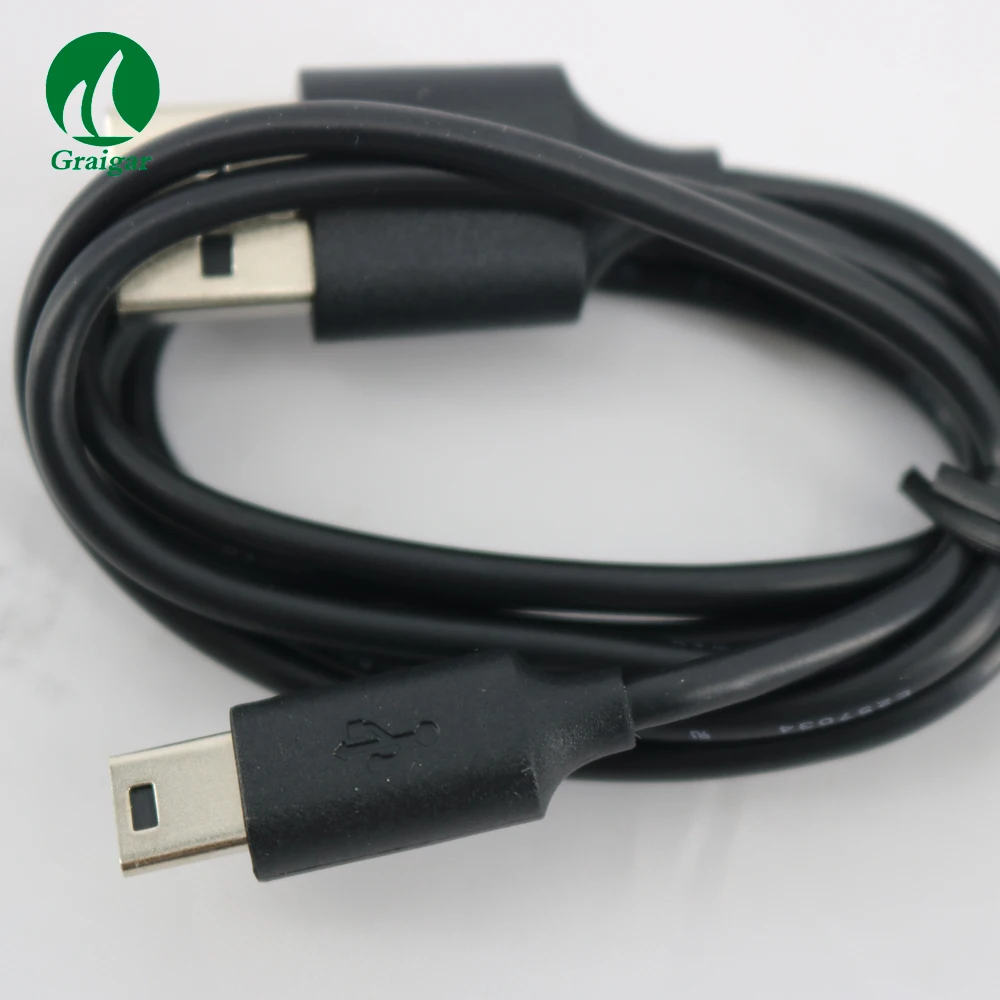

computer through USB to connect directly to controller settings, all is not lost when power down
parameter system;


LXC3920:During normal running process, if mains normal, enters into “Mains Normal Delay”. When
mains indicator illuminates, “Stop Delay” begins.LXC3X10:When the “Remote Start” signal is removed, the stop delay is initiated.


Once this “stop delay” has expired, the Generator Breaker will open and the “Cooling Delay” is then
initiated. After “Transfer Delay”, the mains close relay will be energized; mains will take load;
generator power indicator will extinguish while mains power indicator will illuminate.


During “Stop Idle” Delay (if configured), idle relay is energized.
“ETS Solenoid Hold” begins, ETS relay is energized while fuel relay is de-energized.
 "Fail to Stop Delay" begins, complete stop is detected automatically.
Generator is placed into its standby mode after its complete stop. Otherwise, fail to stop alarm is
initiated and the corresponding alarm information is displayed on LCD.

Specification:
