Yaon TV Store
Магазина Yaon TV Store работает с 15.04.2012. его рейтинг составлет 88 баллов из 100. В избранное добавили 781 покупателя. Средний рейтинг торваров продавца 4.7 в продаже представленно 183 наименований товаров, успешно доставлено 620 заказов. 100 покупателей оставили отзывы о продавце.
Характеристики
4 tuner to IP/ASI encoder 1080P Multi-Channel dvb-s2 input and output atsc | Электроника
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Apr-17-2026 | 0.13 руб. | 0.10 руб. | 0 руб. |
| Mar-17-2026 | 0.1 руб. | 0.15 руб. | 0 руб. |
| Feb-17-2026 | 0.96 руб. | 0.76 руб. | 0 руб. |
| Jan-17-2026 | 0.71 руб. | 0.54 руб. | 0 руб. |
| Dec-17-2025 | 0.69 руб. | 0.1 руб. | 0 руб. |
| Nov-17-2025 | 0.58 руб. | 0.71 руб. | 0 руб. |
| Oct-17-2025 | 0.70 руб. | 0.40 руб. | 0 руб. |
| Sep-17-2025 | 0.22 руб. | 0.95 руб. | 0 руб. |
| Aug-17-2025 | 0.37 руб. | 0.51 руб. | 0 руб. |
Описание товара

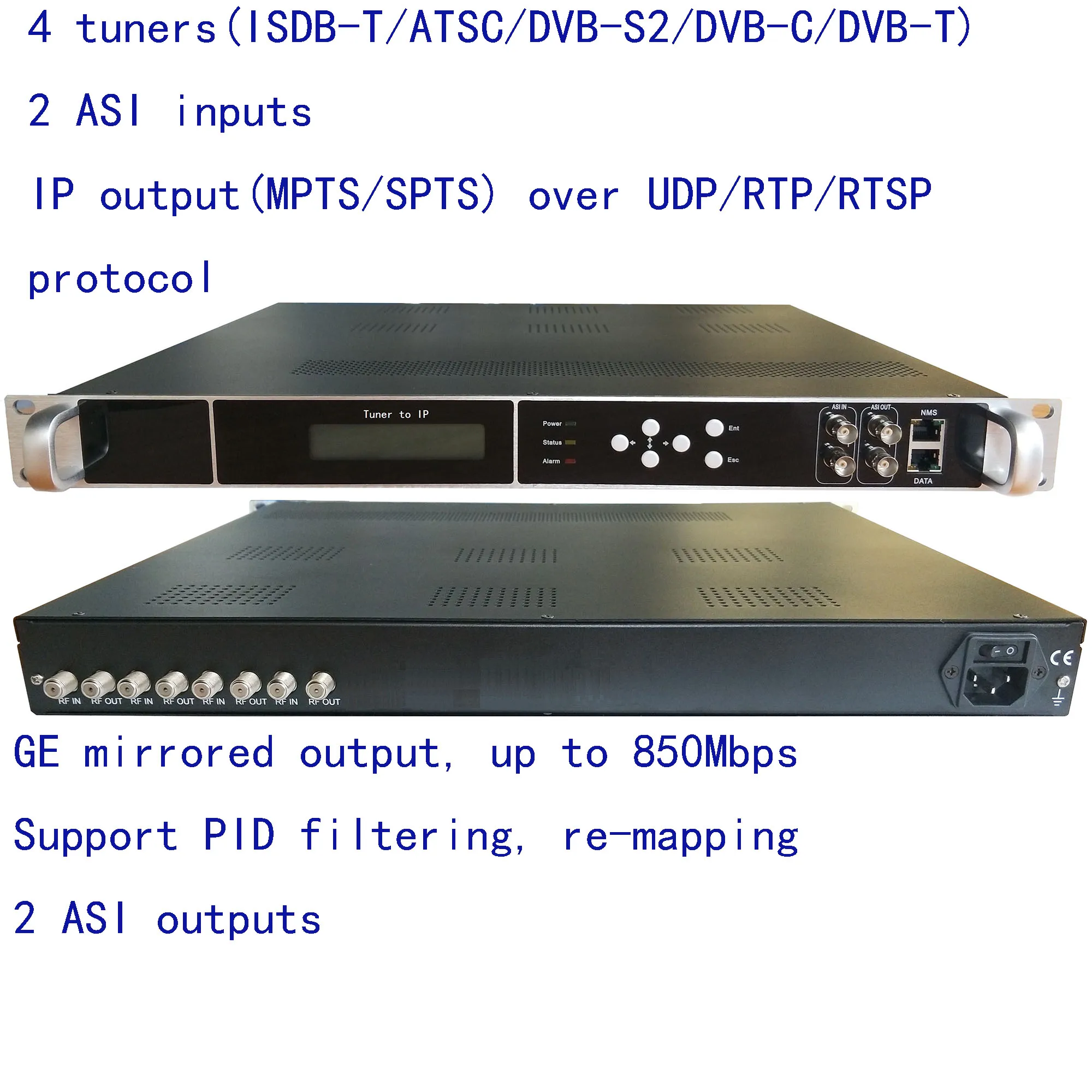

Product Overview
VEK-2404-4 Tuner Input Multiplexer is the latest demodulation and multiplexing device for digital TV broadcasting head-end system with TS output through IP port. It can multiplex 4 channels Tuner and 2 ASI input to IP (MPTS/SPTS). This multiplexer has the functions of supporting auto-generation of PSI/SI information, PID re-mapping, and service filtering.
BISS function embedded will carefully descramble tuner input programs. In conclusion, its high integration and cost effective design make this device widely used in the CATV Broadcasting system.
Key Features
* Support 4 FTA DVB- S/S2 (DVB-C/(T)/ISDB-T/ATSC optional )input, 2 ASI input
* Support BISS descrambling, and each channel bit rate cannot exceed 80Mbps
* Support DisEqc function
* IP output (MPTS/SPTS) over UDP, RTP/RTSP protocol
* GE mirrored output, up to 850Mbps
* Support PID filtering, re-mapping
* Support PSI/SI rebuilding and editing
* Support “Null PKT Filter” function
* Support Web operation
l Decodeable MPEG-2 and MPEG-4 Transport Streams Packaged into IP Packets
l Supports MPTS output (single program stream)
l Supports 1 channel independent ASI output
l Supports LCD and key functions
Specifications:
Input | multi tuners input+2 ASI input(4/8/12/16/20/24 tuner) | ||
Tuner Section | DVB-S/S2 | Input Frequency | 950-2150MHz |
Symbol rate | DVB-S: QPSK 2~45Mbauds; DVB-S2:QPSK1~45Mbauds, 8PSK 2~30Mbauds | ||
Code rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | ||
Constellation | QPSK, 8PSK | ||
DVB-T/T2 | Frequency In | 30MHz ~999.999 MHz | |
Bandwidth | 6/7/8 M bandwidth | ||
ATSC-T | Input Frequency | 54MHz~858MHz | |
Bandwidth | 6M bandwidth | ||
ISDB-T | Input Frequency | 30-1000MHz | |
DVB-C | Standard | J.83A(DVB-C), J.83B, J.83C | |
Frequency In | 30 MHz~1000 MHz | ||
Constellation | 16/32/64/128/256 QAM | ||
Output | 1MPTS IP mirrored output over UDP and RTP/RTSP protocol through IP port（Multicast）, 512 SPTS | ||
2 ASI output | |||
Mode 1, Mode E (Up to 850Mbps) (descramble individual program) | |||
BISS Descrambling | |||
Principle Chart:
Payment:
We accept alipay here.
All major credit cards are accepted through secure payment processor ESCROW.
Shipping Policy:
We usually choose a most convenient courier from FEDEX/DHL/EMS, if you submit the order selection of transportation mode is EMS, but we do not guarantee delivery by EMS. There may be shipped via FEDEX/DHL.
Seller is not resposible for any custom duty or import tax at destination country.
Warranty and Guarantee:
We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after receive it.
All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible.
Serious Buyer Only! Please place bid only if you agree with all the terms.
Other Policies:
12 months Warranty. Buy with confidence!
If item is defective in 3 months, We will send you a replacement without extra charger, or offer refund after we receive the defective item.
If item is defective after 3 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee.
