Low RPM PMG 3 Phases AC Coreless Permanent Magnet Generator Alternator 400W/600W 12/24V for Vertical Axis Wind Turbine | Обустройство

Product introduction

Features

This model (RX-400MG OR RX-600MG)coreless generator have advantage in low Rated speed, Low starting wind speed, Small volume, Energy Small, Light weight, Compact structure,High efficiency etc.

1)Coreless, anhysteresis, slotless, have low starting torque.

2)No iron loss, have high efficiency

3)Adopt unique coreless precision winding technology design precision coil

4)Adopt the rare earth permanent magnet, which is multipole, mean gap, high power density and high output power.

5)Low speed direct driving, no torque fluctuations Compact structure, high ratio of power to volume

6)No iron loss, low calorific value,small temperature rise

7)Simple structure, easy to install

8)The brushless structure, free maintenance

Product Technical Data

RX-400MG

1)Rated power 400w 2)Rated speed 300rpm 3)Rated voltage 12v/24v 4)Gen. Diameter 170mm 5)Gen. Diameter 170mm 6)Weight 9.3kg 7)Shaft. Diameter 25mm 8)Efficiency >85% 9)Insulation Resistance 100Mohm Min(500V DC) 10)Phase Three phase 11)Housing Material Aluminum ( Alloy )

RX-600MG

1)Rated power 600w 2)Rated speed 300rpm 3)Rated voltage 12v/24v 4)Gen. Diameter 170mm 5)Gen. Diameter 170mm 6)Weight 9.3kg 7)Shaft. Diameter 25mm 8)Efficiency >85% 9)Insulation Resistance 100Mohm Min(500V DC) 10)Phase Three phase 11)Housing Material Aluminum ( Alloy )

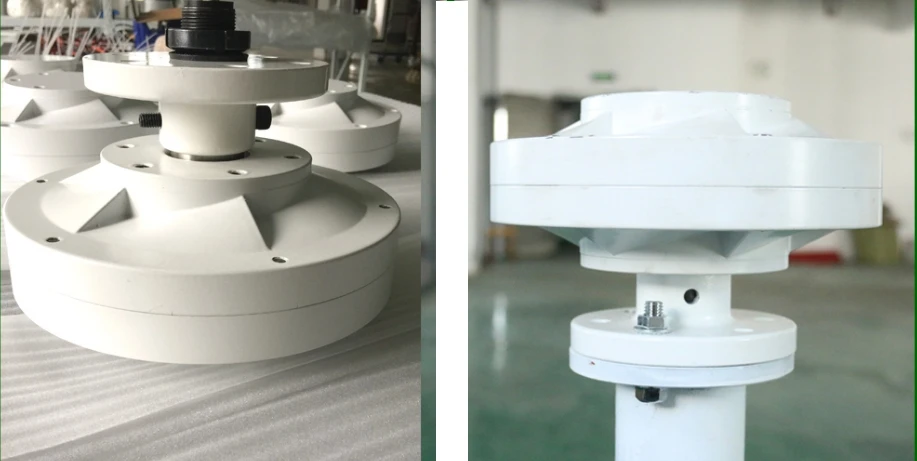

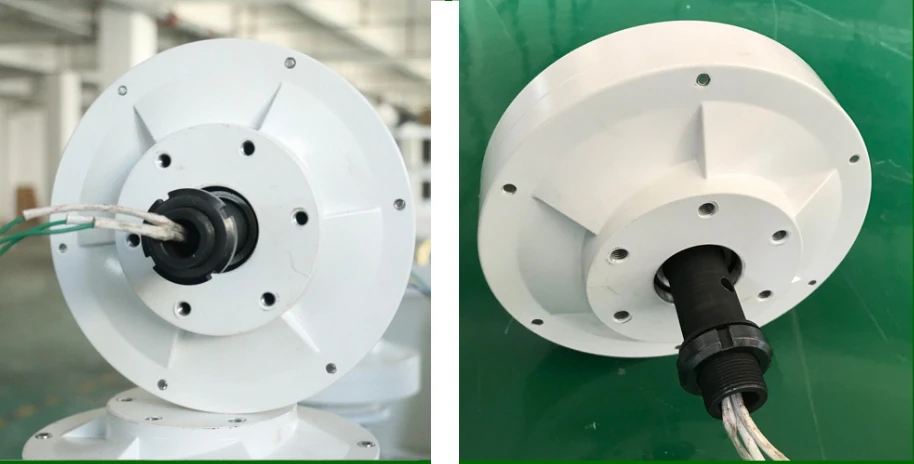

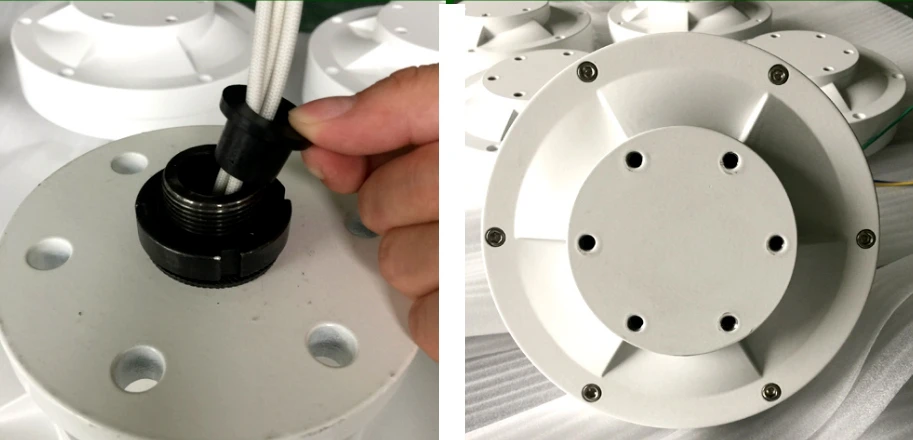

Product Pictures Show

About us

R&X Energy Technical Group Co., Ltd

We specialize in supplying renewable energy products (solar power, wind power, electrical accessories, etc.) around the world. There are about hundreds of types of wind generator available in our company. We owns seven branch companies in Zhejiang, Guangdong , Jiangsu and overseas. Also, R&D, studying, producing, sales and after-sales services have been integrated in its whole product chain. Hope to be your trustworthy supplier in China

Product Customs Duty

1)The price you paid for the item excludes any customs tax.We will not shoulder any duties in destination country. 2) Please check with your country customs office to determine what these additional costs will be prior to bidding/buying.

Product After-sale Service

1)Refund or replacement request is available only the requests within 1 week after parcel received & returning the item as the same condition as received. 2)Please contact us to request a return authorization. Your name, auction number, and reason for return should be included in the email. All items returned must contain all original packaging materials. 3)Please repack the item carefully. Items returned will be tested and a new replacement will be shipped to the buyer immediately when found defective. In the event that a suitable replacement is not available then a refund will be issued. Shipping, handling and insurance fees are non refundable. 4)If the item is found non-defective, the item will be sent back to the buyer at buyer’s expense.
