1) 3A rectifier bridge (AC and DC can be input)
2) 2*35V 220UF high withstand voltage capacitor (for buffer filtering)
3) High-quality heat sink (with heat sink to enhance heat dissipation)
4) 1.5A high current chip (the same network products generally use 1.2A and below, cut corners)

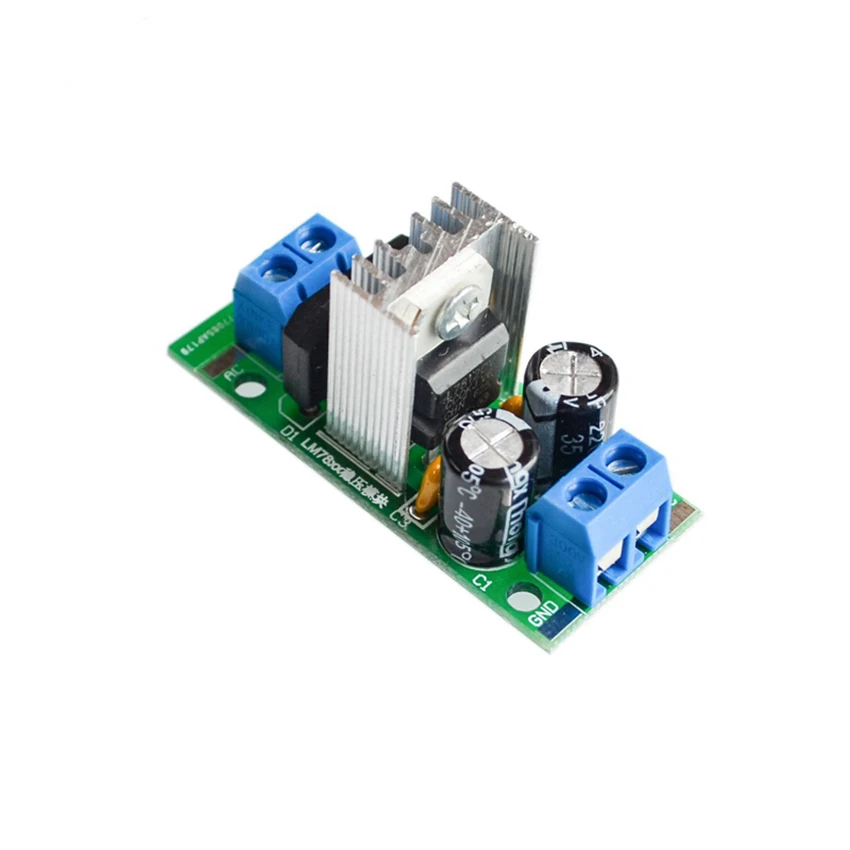

*This board adopts full-wave bridge rectification, AC and DC can be input, and the input does not distinguish between positive and negative. The filter uses two 35V 220UF large-capacity electrolytic capacitors for buffer filtering, which makes the output current stable and smooth. The L7812 is equipped with a heat sink and a 3A rectifier bridge for high current continuous output.
Application areas: DIY power supply, monitoring power supply, experimental power supply, camera power supply, vehicle power supply, communication equipment power supply.

Other parameters:

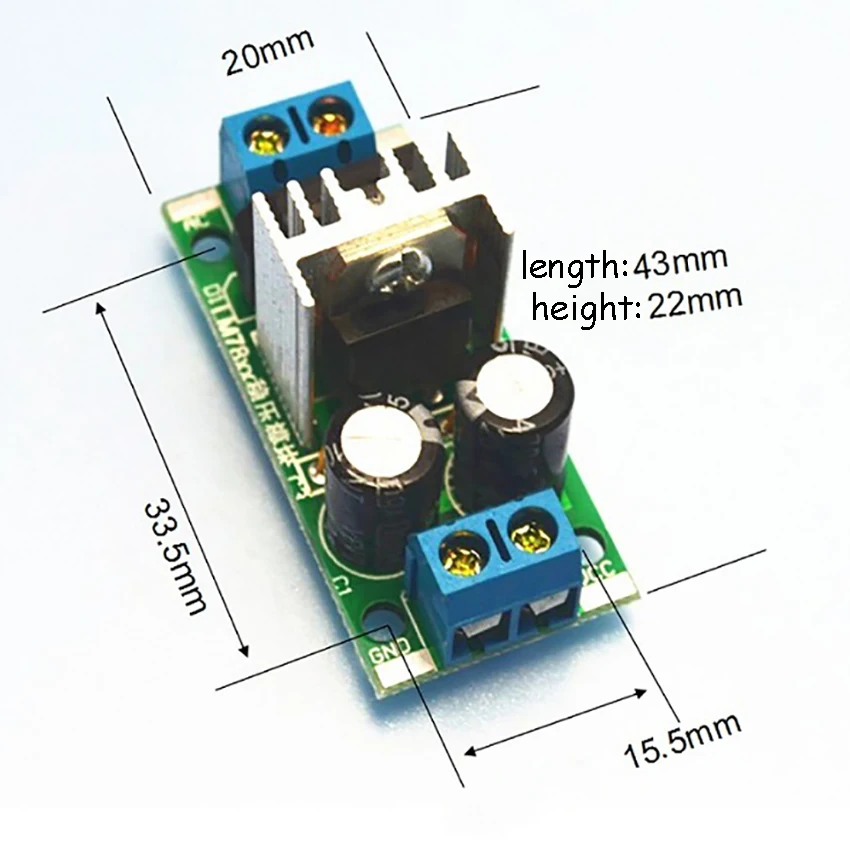

Module size: 43mm*20mm
Input voltage (withstand voltage): DC: 15~24V, AC: 12~18V

Output characteristics:
Load adjustment rate: 100mV
Quiescent current: 8mA
Output noise voltage: 42uV
Input and output pressure difference: 2V
Output impedance: 15mΩ
Peak current: 1.5A

Package include:1pc*power supply module
