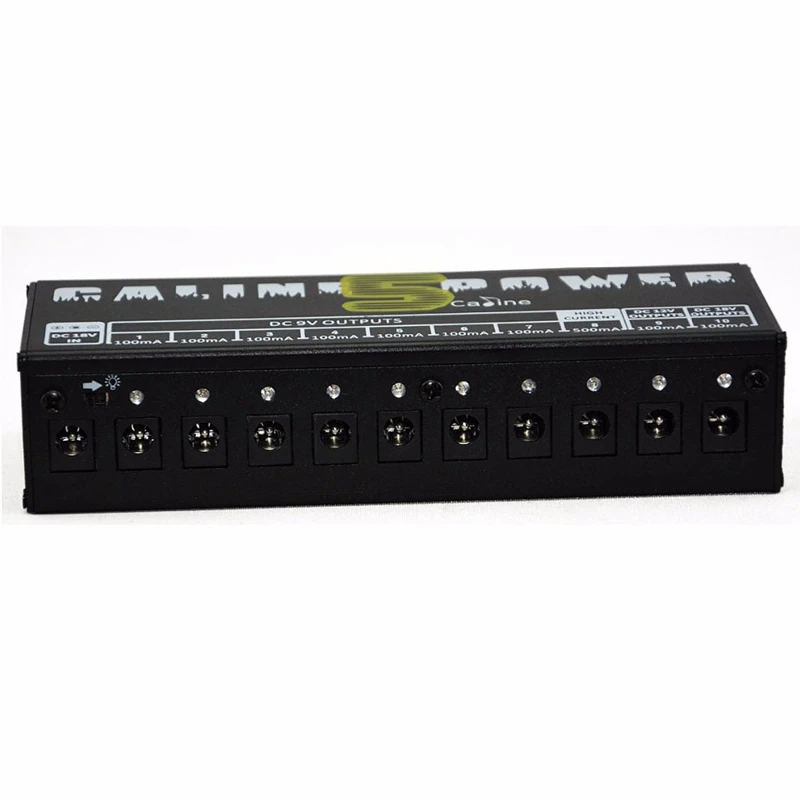

Caline Cp-05 Guitar Effect Pedal Power 10 Isolated Output 18V with Voltage Short Circuit / Overcurrent Protection 1 switch for LED lights: Turn the switch to those LED lights, normally all the lights would turn on after the power is connected. If you do not want all the LED lights, turn the switch on again. The front panel of this unit has 10 high brightness LED lights that work as indicators, as well as pedal board lighting.
2 DC input of 18 V: plug the output of the power adapter here, and do not use adapter from other side
3 output 1-7: all DC power outputs 9 v with maxinmum volume of 100mA, are suitable for normal analogue effects. Under the circumstances of all the LED lights on, the instantaneous overcurrent at a certain output will lead to the flash of the corresponding LED light and to the currents of this channel limit at 100 mA! That is, the output 1-7 may not work correctly if the digital effects connected are of greater power consumption then you must use the output 8.
4 output 8: output power lso DC 9 V with maximum volume of 500mA, is suitable for digital effects and amplifiers of digital guitar DC 9 V of low power. When occuss of instantaneous overcurrent in this channel, the corresponding LED light will flash and currents will limit to 500mA.
5 DC12 output: maximum output current is 100mA when instantaneous overcurrent occurs in this channel the corresponding LED light will flash and currents will limit to Ma.6 DC18 output: the maximum output current is Ma. When the instantaneous overcurrent occurs in this channel, the corresponding LED light will flash and the currents will limit to Ma.
Plug Type :EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on.
Plug Type: US Plug, it applies to Canada, India, Japan, Mexico, Thailand, Taiwan, the United States, the Philippines and so on.
Specifications:
Material: aluminum alloy
Color: Black
Power: ca 110 V-240 V
Power for: 9 V, 12 V or 18 V pedal
Input: DC 18 V

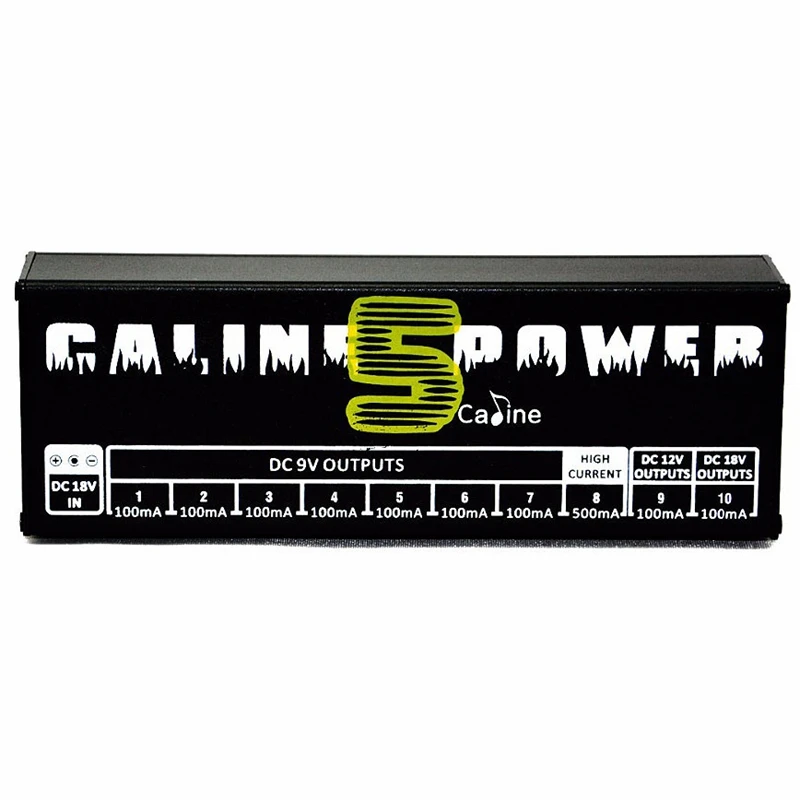

Exit:
7/7 9 V 9 V 100mA
1 way 9V 9V 500mA
1 way 12V 100mA
1 road 18 V 100mA
Product size: 15x5x3 cm / 5.9x2x1.2inch
Net weight: 388g
Package size: 16.6x15.5x6 cm / 6.5x6.1x2.4inch

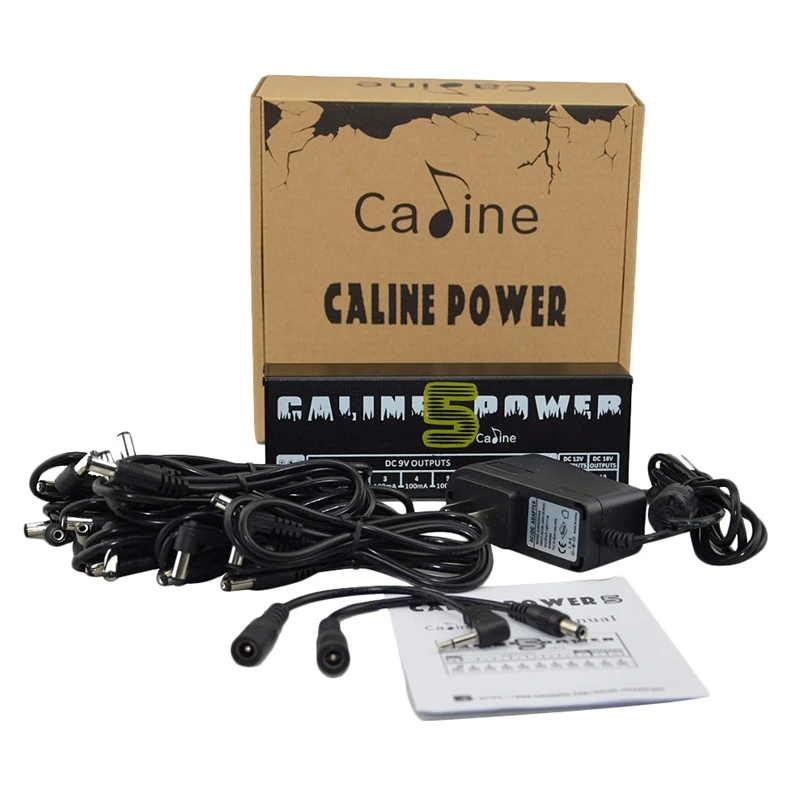

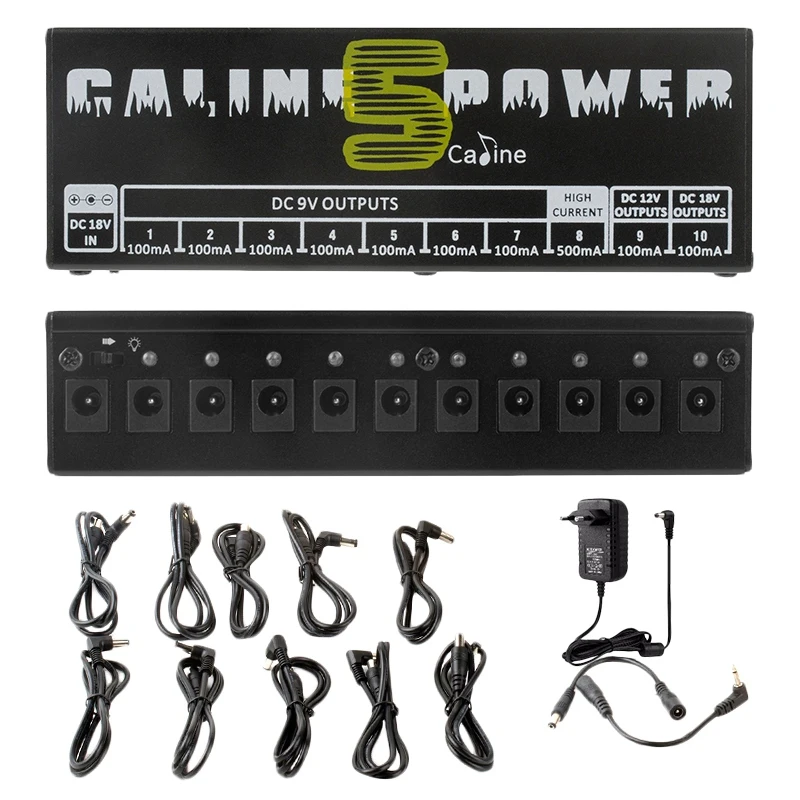

Package Contents:
1 x Caline CP-04 power supply
1 x adapter (EU plug) / 1 x adapter (US plug)
10 x cable
2 x connection cable
1 x English User Manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
