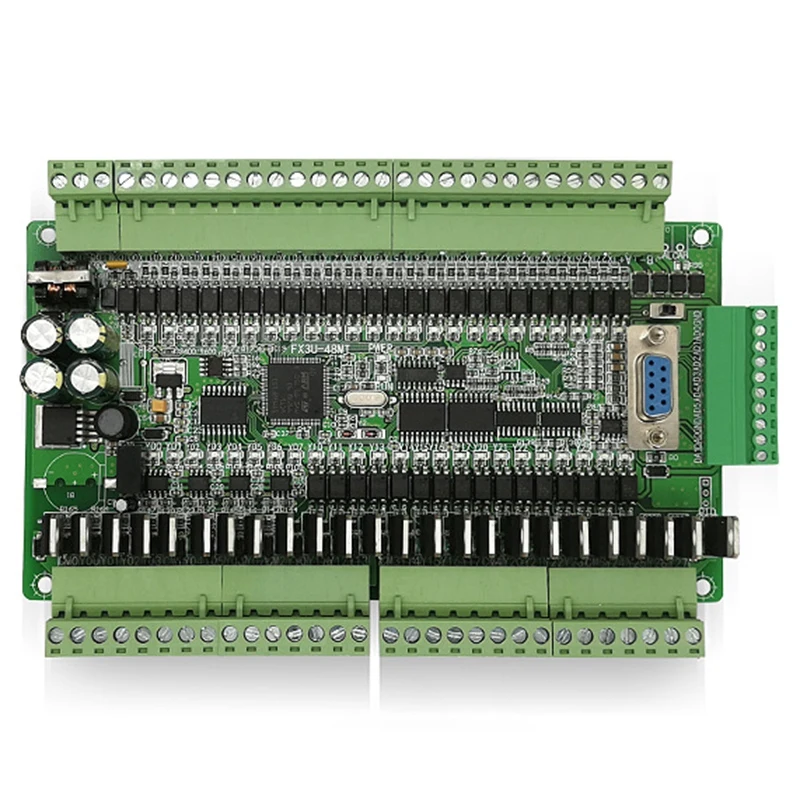

PLC Industrial Control Board FX1N FX2N FX3U-48MT 6AD 2DA 24 Input Transistor Output RS485 RTC CAN Extension with Shell | Инструменты

PLC Industrial Control Board FX1N FX2N FX3U-48MT 6AD 2DA 24 Input Transistor Output RS485 RTC CAN Extension with Shell | Инструменты

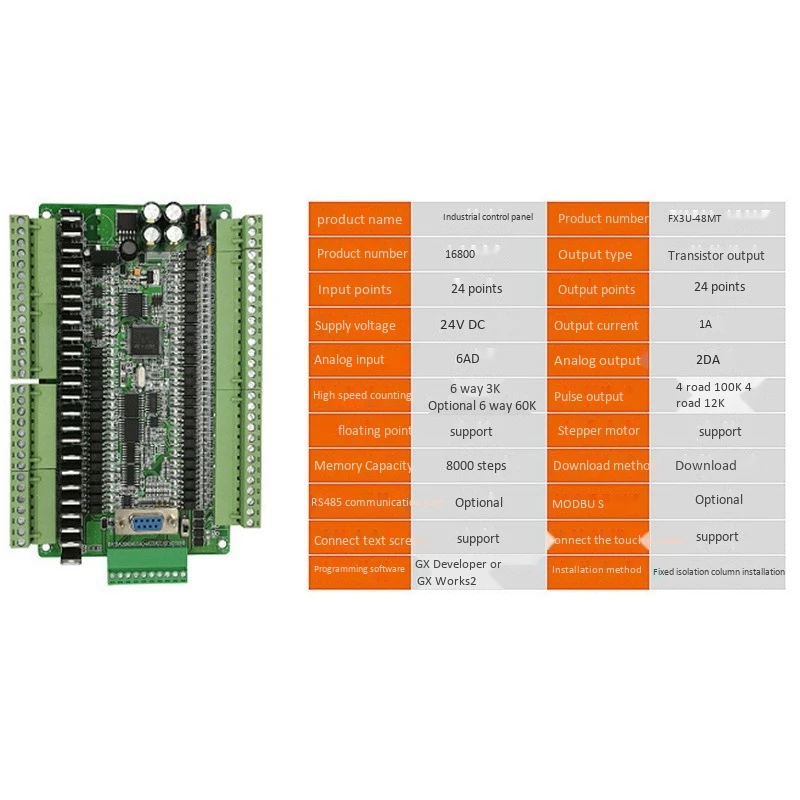

Input Power DC24
Number of steps 8000 steps; 2 communication ports: 1 RS232 (DB9 serial port iscommunication port for the FX3u protocol 38400,7,E,1; 1 RS485 (485 selection) communication protocol can be set D8120).

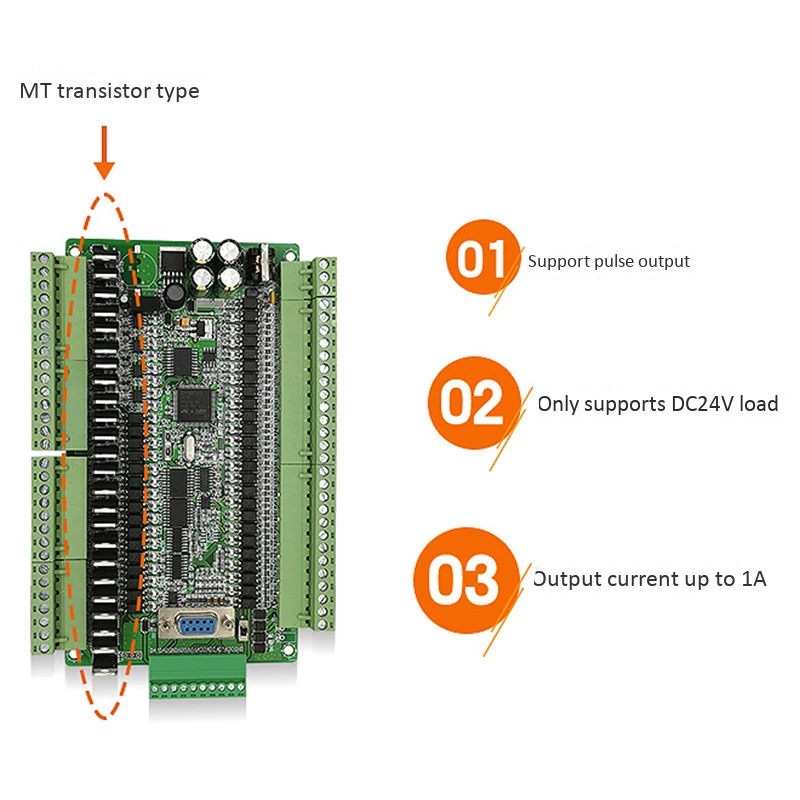

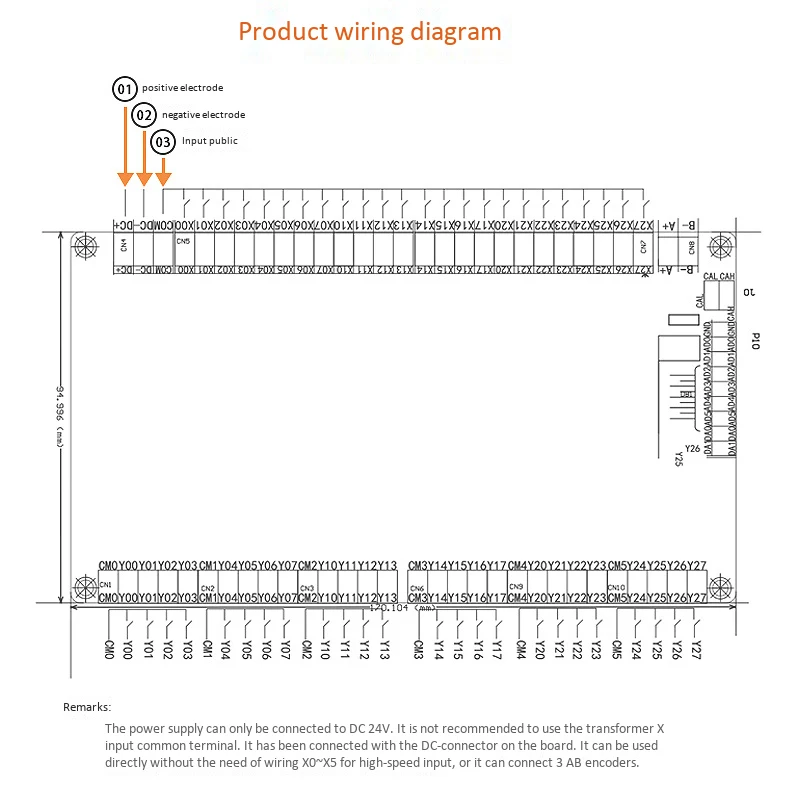

X input elements DC24, X0-X27 input,Low level X0-5 is a high-speed count input port (Default is 12K, 100KHZ optional) Y output elements Y0-Y27 for optimal relay or transistor output, relay output current 5A.
Analog input 6 analog input, 12 bit precision, A0-AD2: 0-10V, A3-AD5 :0-20MA; read analog RD3A instruction. Analog output 2 analog output, 12 bit precision, output voltage: 0-10V. output analog voltage with WR3A instruction
Intermediate relay M M0-M3071, the scope of power loss saving can be set up.Rang M0-M1023
With 485 function, with 1 high-speed timing function
Colour: Black
material: plastic
Model Number: FX3U-48MT
Motor Type: Stepper Motor
Stepper Point S S0-1023, power down save range can be set up S0-S1023,Default is S500-S999
100Ms Timer T0-T199, cumulative power down save T184-T199
10Ms Timer T200-T249, cumulative power down save T246-T249
1Ms Timer T250-T383,T250-255 is the cumulative type
16-bit counter C0-C199, power down save C100-199
32-bit counter C200-C219, power down save C220-C234
32-bit high-speed counter C235-255;C235-240 for the single-phase counter, Non harmonic;
C241-240 single-phase counter, frequency doubling;C247-249 Dual phase counter, Non harmonic;
C250-252 for the two-phase counter, frequency doubling;
C253-255 biphasic counter, 4 frequency doubling;
Register D D0-D7999, power-down save range can be set D0-7999
Indirect addressing pointer V, Z V0-7,Z0-7
P subroutine jump number P0-63
I interrupt X0-5 external interrupt. Timer interrupt (1MS units). Timer interrupt.
Special elements M M8000 running normallyclosed,M8002 power pulse,M8011 is 10Ms pulse,M8012 is 100Ms pulse,M8013 is 1s pulse,M8014 minutes pulse.
Package Contents:
1* industrial control panel

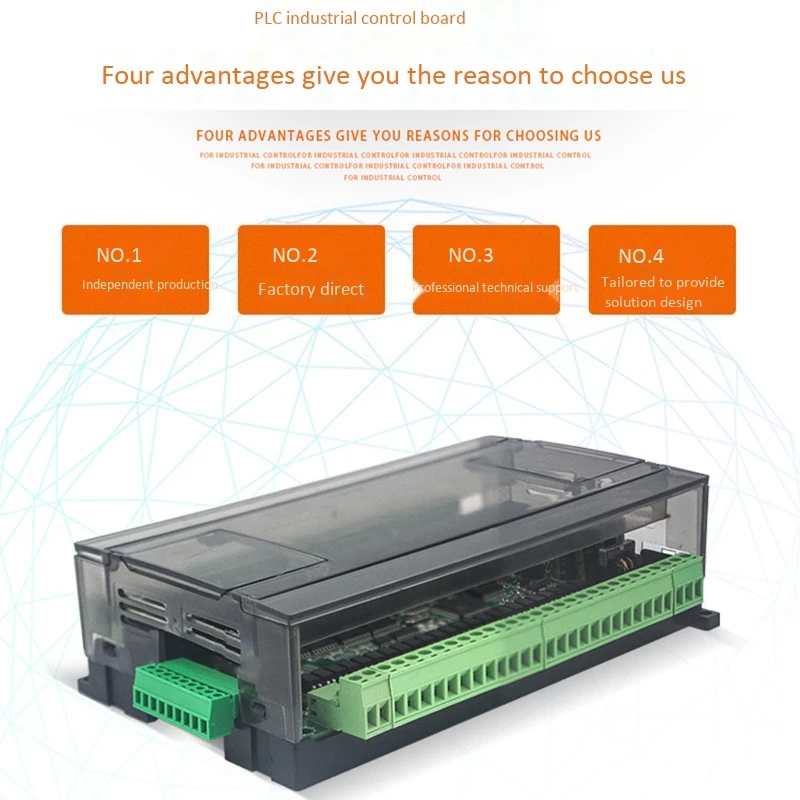

1* outer casing
1* base
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
