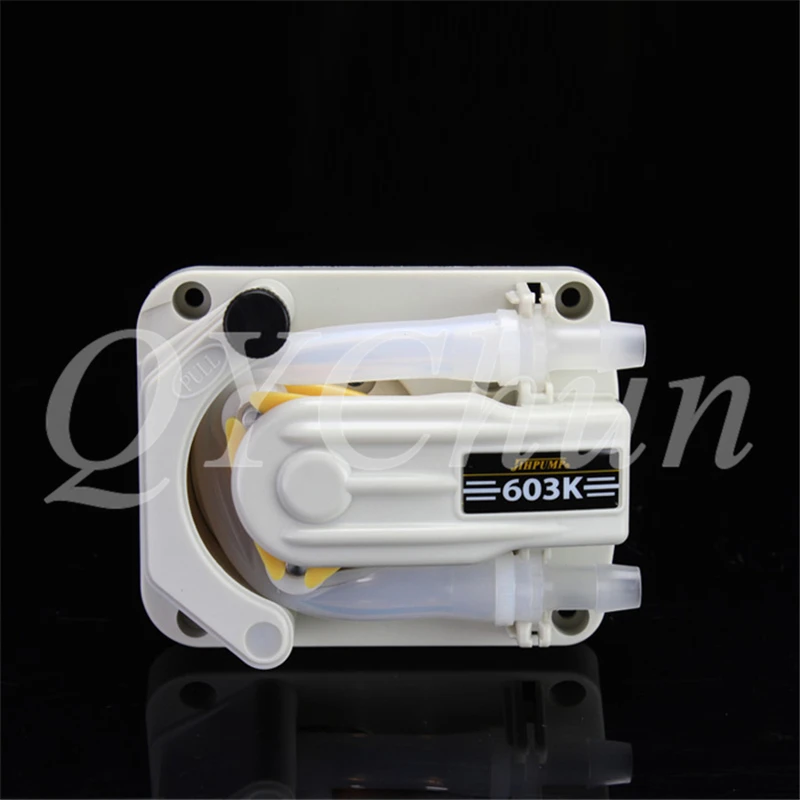

Jay Heng 603k Peristalsis Pump Oem Odm Instrument Ice Cream Machine | Обустройство дома
История изменения цены
*Текущая стоимость 4 211,05 - 6 800,34 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-16-2026 | 5348.73 руб. | 5455.96 руб. | 5401.5 руб. |
| Feb-16-2026 | 4337.22 руб. | 4424.45 руб. | 4380.5 руб. |
| Jan-16-2026 | 5264.54 руб. | 5369.2 руб. | 5316.5 руб. |
| Dec-16-2025 | 5222.24 руб. | 5326.96 руб. | 5274 руб. |
| Nov-16-2025 | 4169.97 руб. | 4252.26 руб. | 4210.5 руб. |
| Oct-16-2025 | 5137.84 руб. | 5240.33 руб. | 5188.5 руб. |
| Sep-16-2025 | 5095.78 руб. | 5197.89 руб. | 5146 руб. |
| Aug-16-2025 | 5053.12 руб. | 5154.4 руб. | 5103.5 руб. |
Описание товара
Warm tip: the end user should try to buy a complete set of peristaltic pump.
Note 1. OEM peristaltic pump is mainly used to integrate the instrument into the instrument and equipment, which requires the user to provide DC power and drive control circuit.
Note 2. OEM peristaltic pump is a component of pump head + motor, which can not be used directly. It needs to be assembled and debugged by itself.
Note 3. Complete set of peristaltic pump: it can be used when the power is plugged in, and has the functions of start and stop, positive and reverse rotation, speed and flow regulation.Reference flow range (ml / min, test medium: clear water)
Motor types | DC planetary motor | DC motor | Brushless DC motor |
Stepper motor | |||||||
motor speed | 150rpm | 300RPM | 166rpm | 326rpm | 507rpm | 150rpm | 290rpm | 50rpm | 100rpm | 200rpm | 300RPM |
24# | 440 | 910 | 540 | 1010 | 1730 | 410 | 880 | 150 | 300 | 620 | 910 |
35# | 600 | 1300 | 730 | 1430 | 2460 | 590 | 1240 | 200 | 410 | 860 | 1270 |
36# | 800 | 1710 | 950 | 1920 | 2880 | 720 | 1550 | 260 | 540 | 1130 | 1650 |
Be careful | 1The flow data in the above table is measured with clean water under normal temperature in Jieheng laboratory, only for reference | ||||||||||
Typical application
| Detergent delivery: such as washing machine, dishwasher | Analytical instruments: injection of analytical and testing instruments |
| Printing equipment: ink delivery | Food machinery: such as beverage machine, coffee machine |
| Kitchen equipment | Laundry equipment |
production characteristics
The conveying flow can reach 1920ml / min
Suitable for clamping 24 × 35 × 35 × 36 × thick wall pipe
Quick disassembly of pump cover, easy to replace hose
It can be equipped with fixed speed DC decelerating motor, DC planetary decelerating motor, stepping motor and DC brushless motor (with driver). Stepping motor and brushless motor can meet the long-life and low noise operation requirements of motor
◆ shell material: PC, PA66
◆ roller: Nylon + MoS2

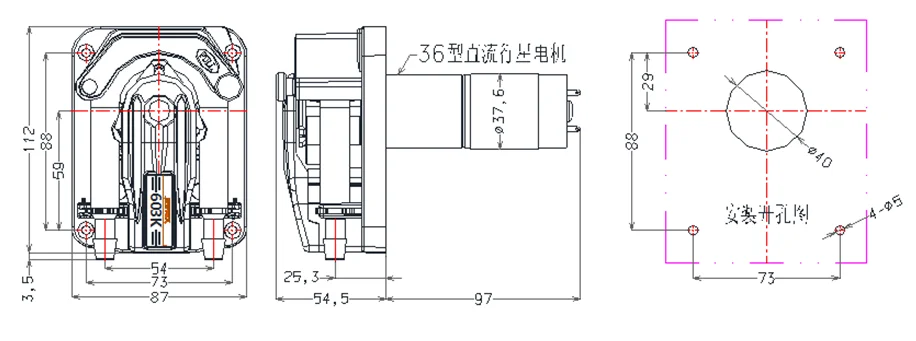

| Item | 603K/ | 603K/ZL | 603K/WTT | 603K/BT | ||
| Speed range | 150r、300RPM | 166r~507rpm | 150290rpm | 0.1300RPM | ||
| Card type | It can be assembled with inner diameter of 24 × 35, 35 × 36# | |||||
| Flow range | 440~1710ml/min | 540~2880ml/min | 4101550ml/min | 150~1650ml/min | ||
| Motor power | ≤32W | ≤32W | ≤24W | ≤32W | ||

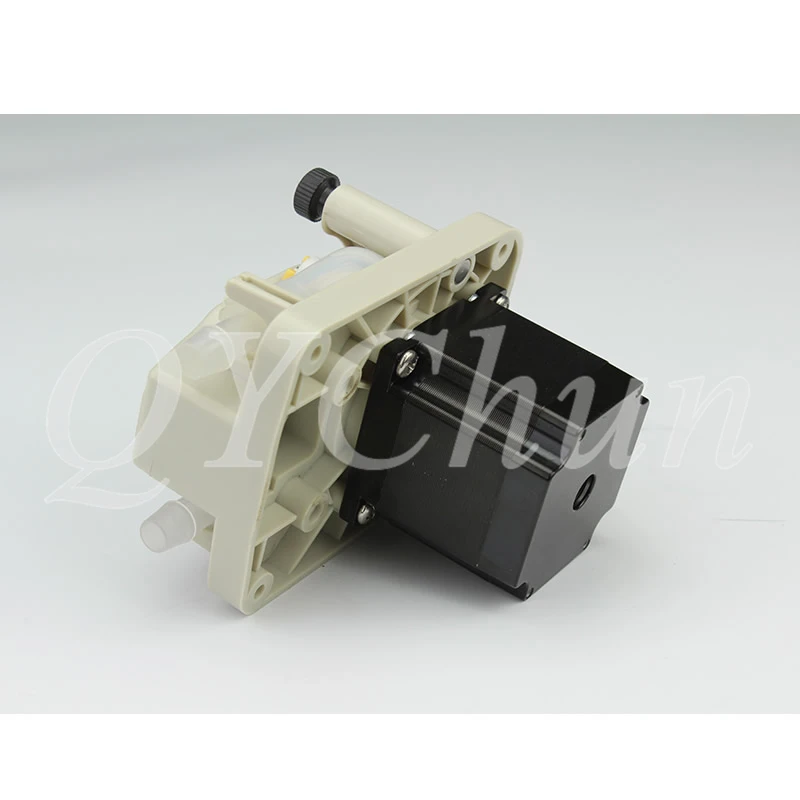

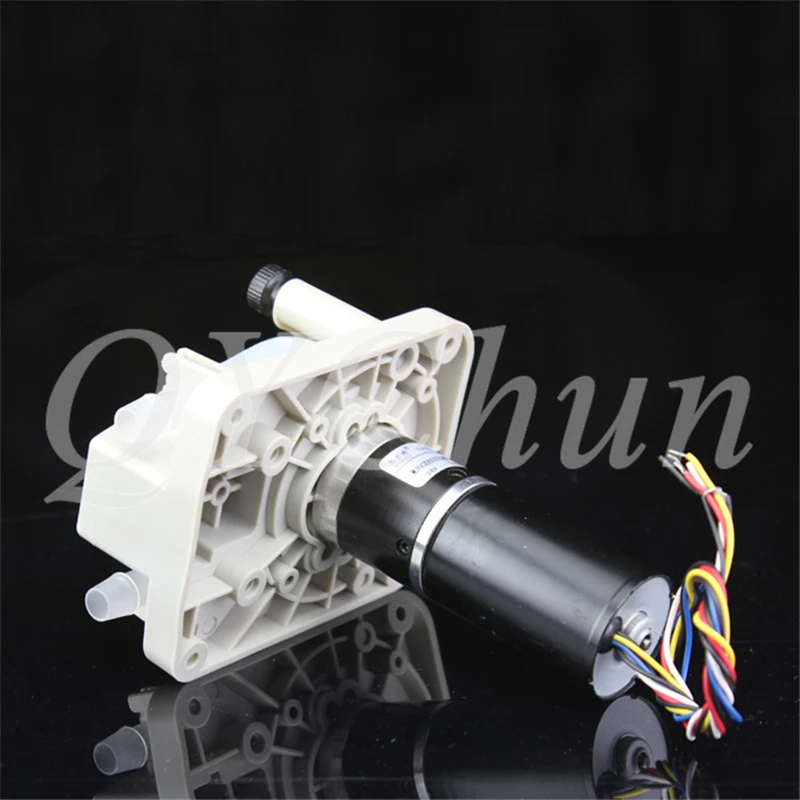

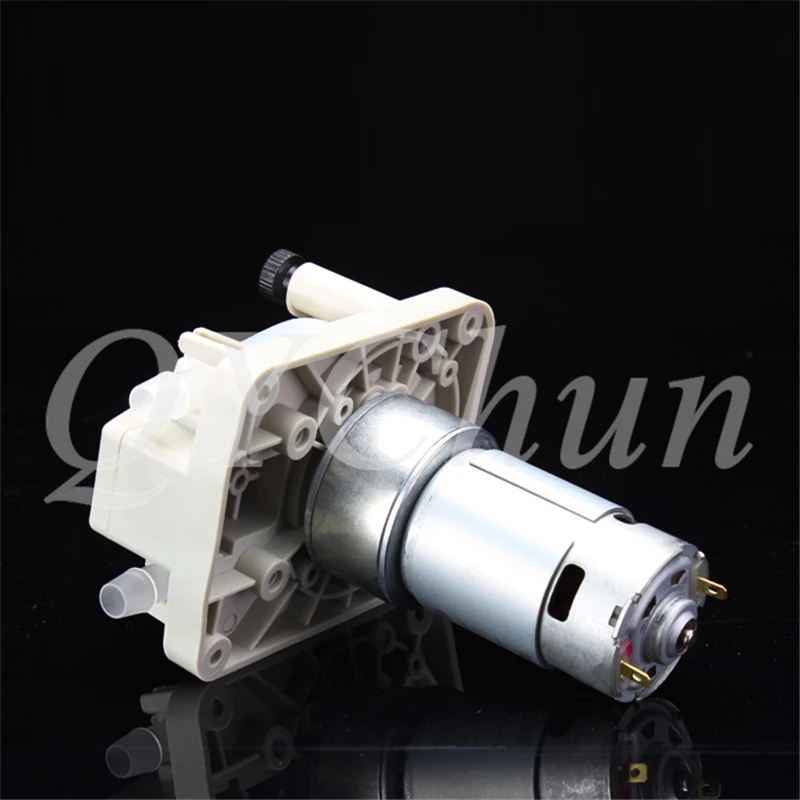

| Motor type | DC planetar y gear motor | General DC reduction motor | DC brushless speed regulating motor | Type 57 stepping motor | ||

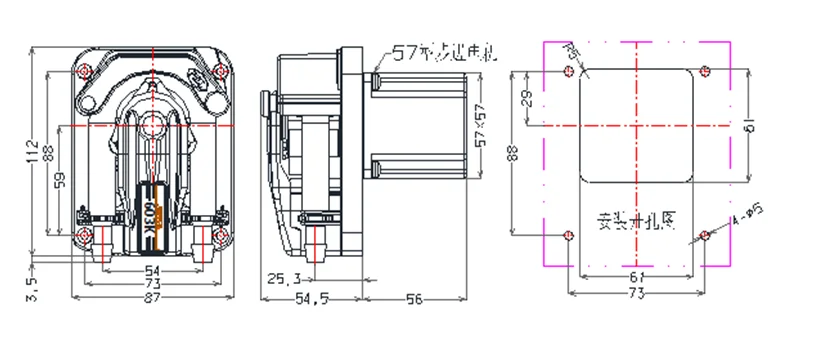

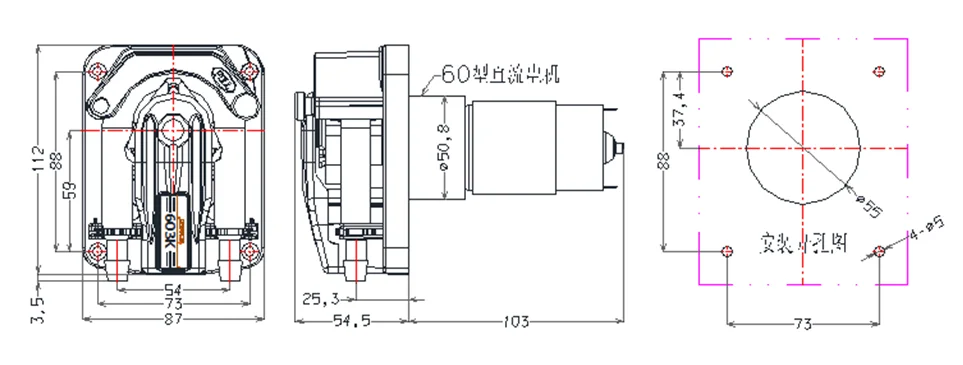

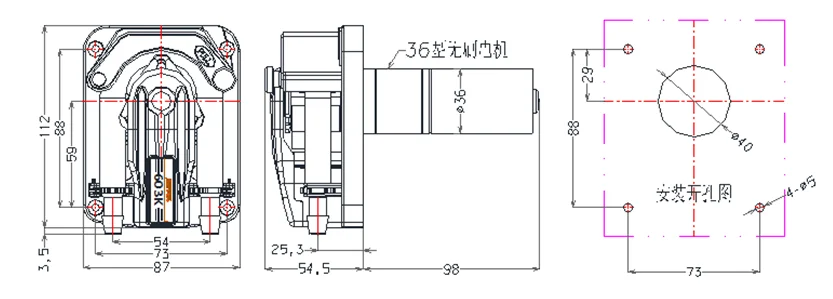

| Driving instructions | Pump body wit h mounting plate (mounting hole 4 - Φ 4.5) | Pump body with mounting plat e (mounting hole 4 - Φ 4.5) | The driver is optional, any speed control board of Jieheng can be selected | |||
| Optional voltage | 24v(12V optional) | 24v(12V optional) | 24v | 636V | ||
| Product weight | 622g | 750g | 622g | 922g | ||
| Optional joint | Right angle joint | Reducing joint | Extension joint | Straight joint | ||
